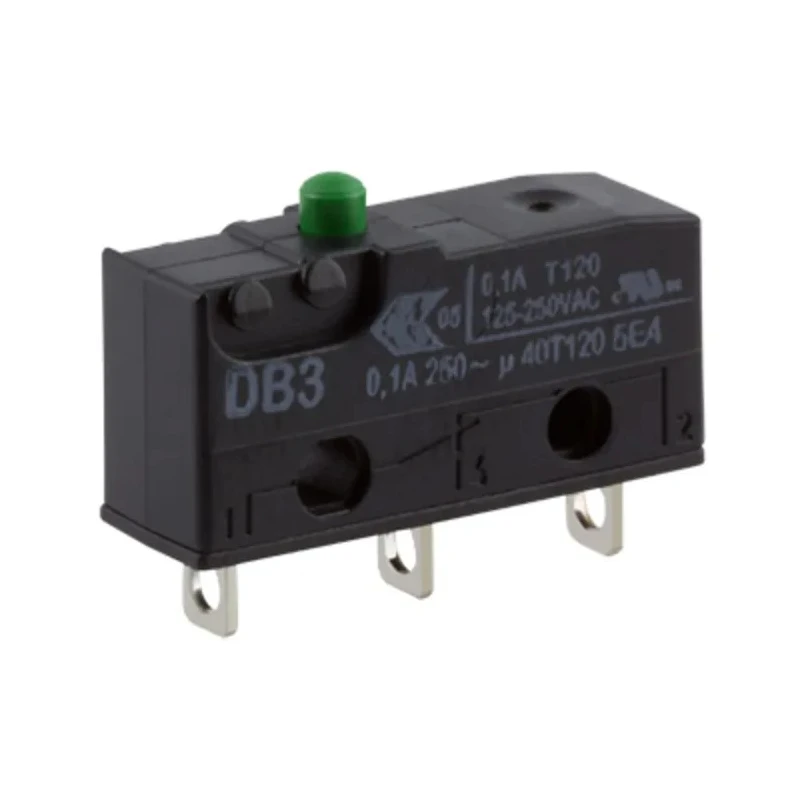

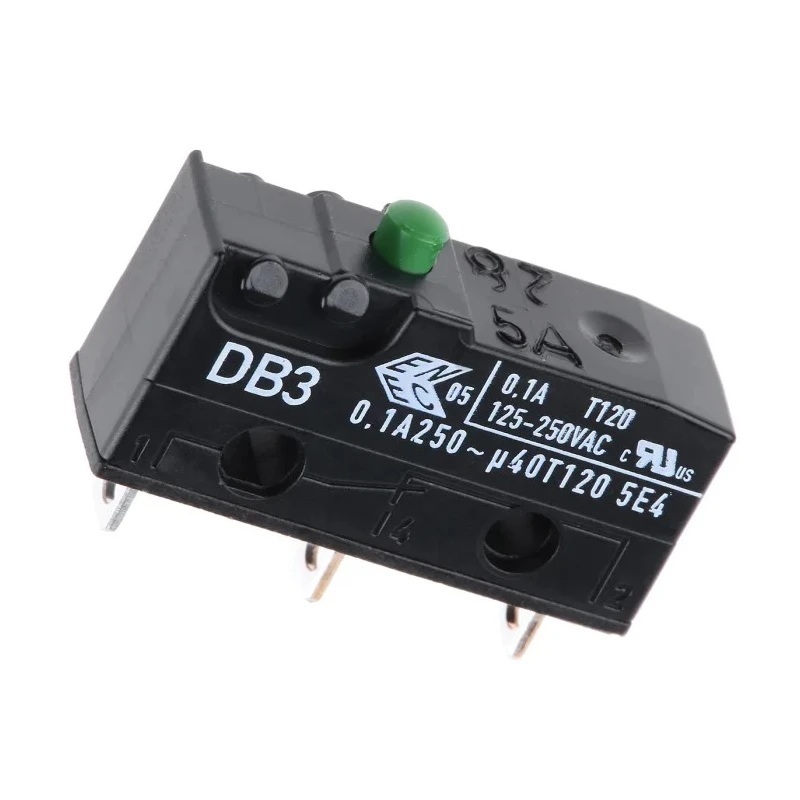

ZF Button Micro Switch Solder Terminal 100mA 250V ac SPDT IP50 DB3C-A1AA
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Model | DB3C-A1AA |
| IP Rating | IP50 |
| Housing Material | Polyamide, Polyethylene Terephthalate |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Button |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Contact Current | 100mA |
| Operating Force | 1.47N |
| Mechanical Life | 15000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DB Subminiature |
| ZF Button Micro Switch, Solder Terminal, 100mA, 250 V ac, SPDT, IP6K7Brand | ZF |
| Honeywell Pin Plunger Microswitch, Solder Terminal, 100 mA @ 30 V dc, SPDTBrand | Honeywell |
Key Features
- Features a subminiature DB3 type switch design.
- Rated for 100mA current and 250 volts AC.
- Employs a button actuator and solder terminal connection.
- Housing made from polyamide and polyethylene terephthalate materials.
- Operates reliably within -40°C to 120°C temperature range.
- Mechanical life expectancy of 15 million operations.
- International Protection Rating of IP50 ensures dust protection.
- Silver-nickel contacts configured as SPDT for versatile use.
Product Description
ZF DB3C-A1AA Button Micro Switch with solder terminal is a durable and precise component designed for electrical and automation systems. Rated for 100mA and capable of switching up to 250V AC, this SPDT micro switch features a compact subminiature DB3 configuration suited for space-constrained designs.
The actuator type is a responsive button, while the terminals utilize soldering for secure electrical connections. The housing construction uses robust polyamide and polyethylene terephthalate, both rated UL 94V-0 for flame resistance, ensuring the switch performs reliably under demanding conditions.
Operating temperature spans from -40°C to 120°C, supporting harsh industrial environments. The switch achieves up to 15 million mechanical operations lifespan, providing long-term durability. Its IP50 rating guarantees protection against dust ingress but is not waterproof.
Designed with silver-nickel contacts arranged in SPDT configuration, the switch delivers low-contact resistance and reliable electrical performance. The operating force of 1.47N ensures consistent activation tactile feel.
This micro switch is RoHS compliant, aligning with environmental safety requirements. Typical industrial applications include use in electrical controls, automation machinery, instrumentation, and HVAC systems where reliable switching is essential.
Features a subminiature DB3 type switch design. Rated for 100mA current and 250 volts AC. Employs a button actuator and solder terminal connection. Housing made from polyamide and polyethylene terephthalate materials. Operates reliably within -40°C to 120°C temperature range.
Mechanical life expectancy of 15 million operations. International Protection Rating of IP50 ensures dust protection. Silver-nickel contacts configured as SPDT for versatile use. Operating force specified at 1.47N for consistent actuation.
Complies with RoHS environmental standards. Explore more Micro Switches and electrical components in the Electronics & Electricals category on EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch is rated for a current of 100mA and can switch up to 250V AC.
It operates reliably within a temperature range of -40°C to 120°C.
The mechanical life expectancy of this micro switch is up to 15 million operations.
It employs a button actuator for activation.
The switch has an International Protection Rating of IP50, ensuring dust protection.
The housing is made from polyamide and polyethylene terephthalate materials.
The terminal type is solder, allowing for secure electrical connections.
It features a silver-nickel contact configuration arranged as SPDT (Single Pole Double Throw).
The operating force specified for this model is 1.47N.
Yes, this micro switch complies with RoHS environmental standards.
Typical applications include electrical controls, automation machinery, instrumentation, and HVAC systems.
The country of origin for this micro switch is India.
