Broadcom Reflective Encoder 2MHz 30mA 25-Pin Surface Mount AEDR-9830-102

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Reflective Encoder 2MHz 30mA 25-Pin Surface Mount AEDR-9830-102

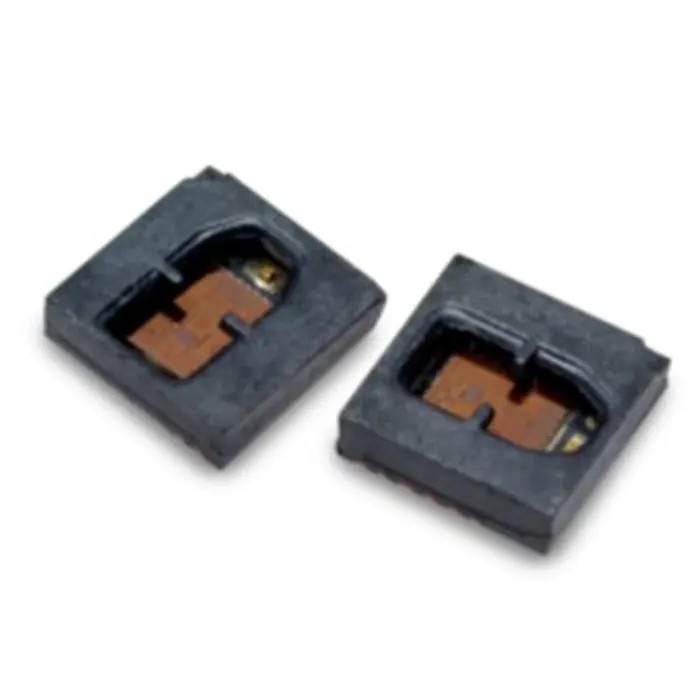

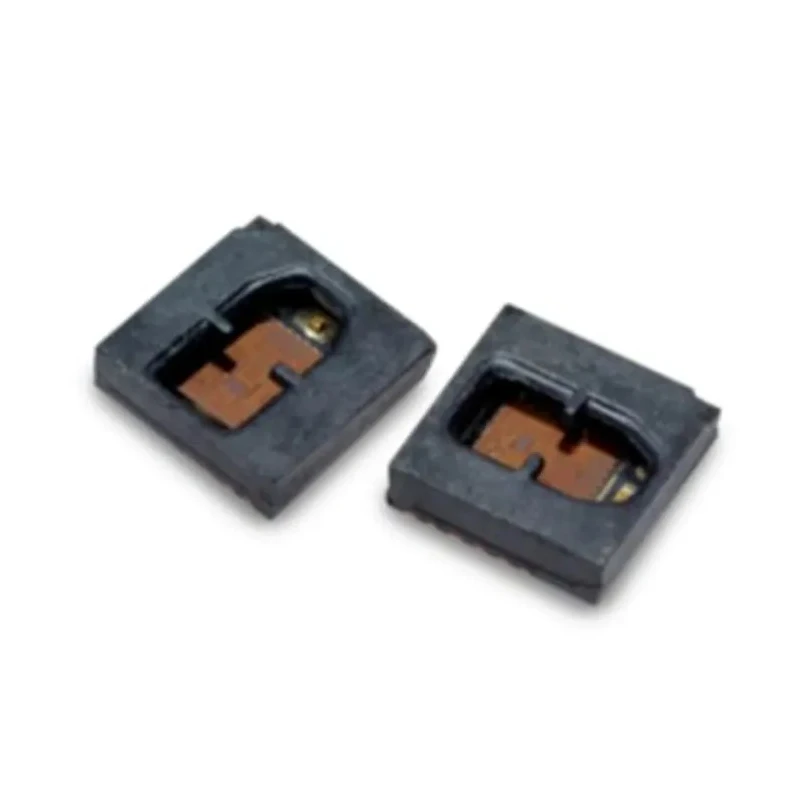

Name: Broadcom Reflective Encoder 2MHz 30mA 25-Pin Surface Mount AEDR-9830-102
Brand: Broadcom
SKU: 169946
Price: 43.66 USD
Availability: InStock



Category Encoder & Decoder ICs Brand Broadcom Condition New

Specifications

Country of Origin	Malaysia
Brand	Broadcom
Height	1.05mm
Length	4mm
Model	AEDR-9830-102
Mount Type	Surface
Number of inputs	1
Series	AEDR-9830
Maximum Operating Temperature	115°C
Minimum Operating Temperature	-40°C
Pin Count	25
Maximum Supply Voltage	5V
Logic Family	CMOS
Logic Function	Decoder, Encoder
Minimum Supply Voltage	3.3V
Typical Supply Current	30mA
Analog Output option	Two-channel differential analog output and differential digital or analog index output

Key Features

Utilizes CMOS logic family suitable for decoder and encoder functions.
Operates with supply voltage from 3.3V to 5V.
Designed for a wide temperature range from -40°C to 115°C.
Compact dimensions with 4mm length and 1.05mm height.
Provides analog and digital output options selectable with two-channel differential analog outputs or three-channel differential/TTL compatible digital outputs.
Built-in interpolator supports 1x to 16x interpolation for improved resolution.
Robust surface mount mount type with 25-pin count ensuring reliable connections.
Applicable for commercial, industrial, and automotive motion control applications.

Product Description

Broadcom AEDR-9830-102 is a high-performance reflective encoder designed for precise motion detection and control applications requiring frequency response up to 2MHz. It integrates a CMOS logic family decoder and encoder and operates over a voltage range of 3.3V to 5V while consuming a typical current of 30mA. The device is housed in a compact surface-mount package featuring 25 pins with overall dimensions of 4mm length and 1.05mm height.

This encoder supports a broad operating temperature window from -40°C to 115°C, making it suitable for demanding commercial, industrial, and automotive environments. It offers flexible output configurations with options for analog outputs including two-channel differential analog signals plus digital or analog index output, as well as digital outputs with three-channel differential or TTL compatible signals for direction sensing and index marking.

The built-in interpolator enhances resolution with selectable interpolation rates of 1x, 2x, 4x, 8x, and 16x, enabling fine motion control feedback. Its surface mount design ensures straightforward PCB integration and reliable mechanical and electrical performance.

Typical applications include precision motion control systems, rotary encoders, and other instrumentation requiring reliable positional feedback. Utilizes CMOS logic family suitable for decoder and encoder functions. Operates with supply voltage from 3.3V to 5V.

Designed for a wide temperature range from -40°C to 115°C. Compact dimensions with 4mm length and 1.05mm height. Provides analog and digital output options selectable with two-channel differential analog outputs or three-channel differential/TTL compatible digital outputs.

Built-in interpolator supports 1x to 16x interpolation for improved resolution. Robust surface mount mount type with 25-pin count ensuring reliable connections. Applicable for commercial, industrial, and automotive motion control applications.

Explore the full range of Encoder & Decoder ICs at EnvMart for integrated solutions suited to your electronic design and motion control needs.

Explore more products in our Encoder & Decoder ICs category.
