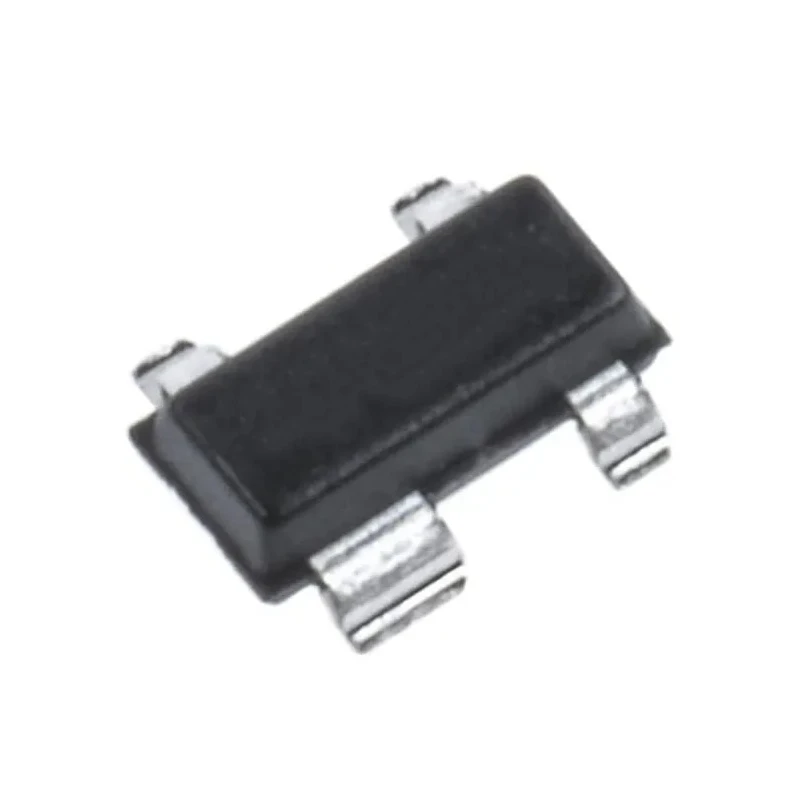

Maxim Integrated 1 Voltage Supervisor 4-Pin SOT-23 3.08 V Reset Threshold MAX6315US31D3+T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.07mm |
| Length | 3.04mm |
| Model | MAX6315US31D3+T |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | MAX6315 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Microprocessor Supervisory Circuit |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1V |
| Number of Supervisors | 1 |
| Output Driver | Open Drain |
| Reset Threshold Voltage | 3.08V |
| Reset Active Time | 336ms |
| Computers | Desktop, Workstation, Server |
| Precision, Factory-Set VCC Reset Thresholds | 100mV Increments from 2.5V to 5V |
| Four Reset Timeout Periods Available | 1ms, 20ms, 140ms, or 1120ms (min) |
Key Features
- Features a microprocessor supervisory circuit that monitors voltage thresholds precisely.
- Includes a manual reset function with an open-drain active-low RESET output.
- Operates over a wide temperature range from -40°C to 125°C.
- Low supply current of 5 μA for efficient power management.
- Includes factory-set VCC reset thresholds adjustable in 100mV increments between 2.5 V and 5 V.
- Offers four reset timeout periods of 1 ms, 20 ms, 140 ms, or 1120 ms minimum.
- Compact 4-pin SOT-23 surface mount package for space-saving applications.
- Suitable for desktop computers, workstations, servers, controllers, and portable battery-powered equipment.
Product Description
Maxim Integrated MAX6315US31D3+T is a high-precision 1 voltage supervisor designed to provide reliable power monitoring for microprocessor and microcontroller systems. Housed in a compact 4-pin SOT-23 surface mount package, this voltage supervisor features a factory-set 3.08 V reset threshold voltage that triggers system reset to prevent erratic operation during voltage drops.
The device operates effectively over a broad temperature range from -40°C to 125°C and draws a minimal supply current of 5 μA, making it ideal for battery-powered and power-sensitive applications. It provides an open-drain active-low RESET output compatible with various system architectures, aiding in robust system control.
Additional features include immunity to short VCC transients, manual reset capability, and four selectable reset timeout periods of 1 ms, 20 ms, 140 ms, or 1120 ms, enhancing flexibility for different system requirements. The supervisor is pin-compatible with MAX811 series devices, ensuring easy substitution and design flexibility.
This voltage supervisor is widely used across applications such as desktop computers, workstations, servers, embedded controllers, and intelligent instruments. Its compact size and low power consumption make it an excellent choice for portable battery-powered equipment and critical microprocessor power monitoring.
Precise microprocessor supervisory circuit for voltage monitoring. Factory-set reset thresholds with 100mV increment settings. Manual reset with open-drain active-low output. Low supply current and broad operating temperature range.
Four selectable reset timeout periods enhance adaptability. Compact 4-pin SOT-23 surface mount package. Pin compatible with MAX811 series for ease of integration. Ideal for computing, control, and portable electronic applications.
Explore more products in Voltage Supervisors at EnvMart for critical power management components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The reset threshold voltage of this model is factory-set at 3.08 V.
It operates effectively over a temperature range from -40°C to 125°C.
The device draws a minimal supply current of 5 μA, making it suitable for power-sensitive applications.
There are four selectable reset timeout periods: 1 ms, 20 ms, 140 ms, or 1120 ms minimum.
It comes in a compact 4-pin SOT-23 surface mount package.
The maximum supply voltage is 5.5 V.
This model contains one supervisor.
It features an open-drain output driver.
Yes, its low supply current and broad operating temperature range make it ideal for portable battery-powered equipment.
The height of this voltage supervisor is 1.07 mm.
It is suitable for use in desktop computers, workstations, and servers.
The minimum supply voltage is 1 V.
