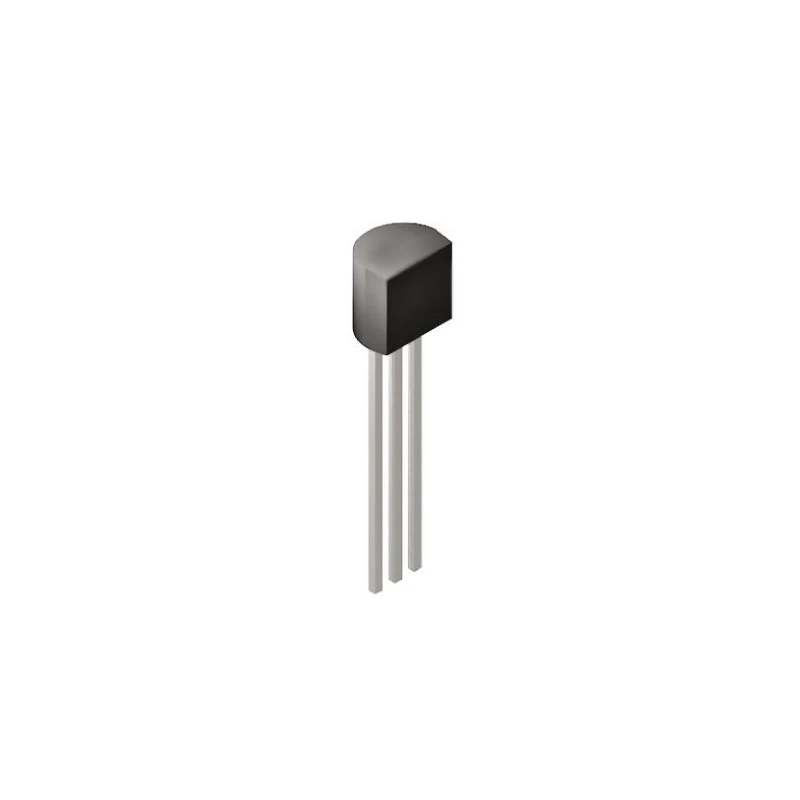

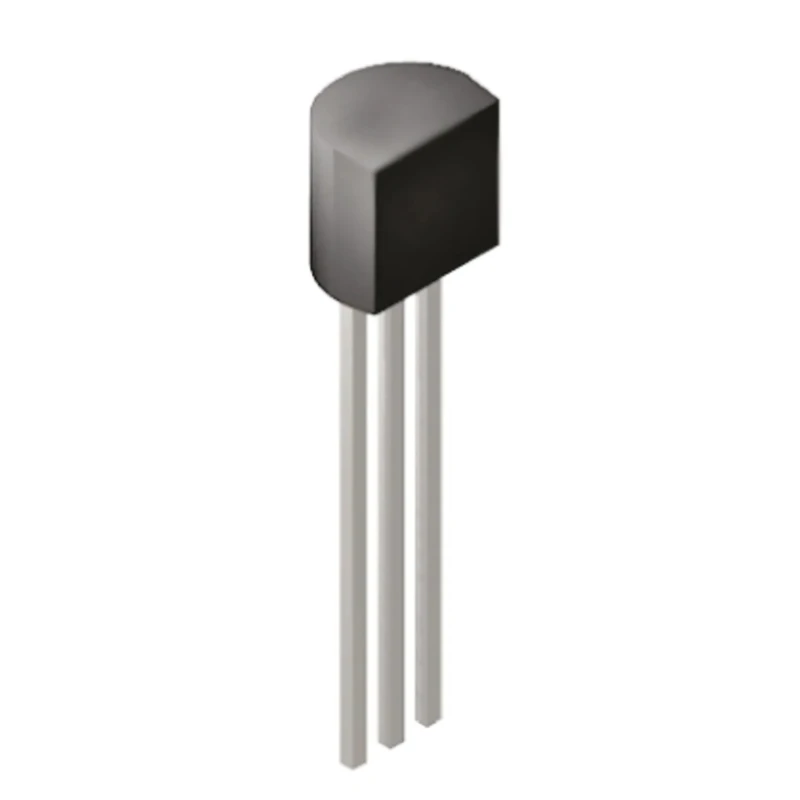

Maxim Integrated 1 Voltage Supervisor 3-Pin TO-92 DS1813-10+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 4.95mm |
| Length | 4.95mm |
| Model | DS1813-10+ |
| Width | 3.94mm |
| Mount Type | Through Hole |
| Series | DS1813 |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-92 |
| Sub Type | Voltage Supervisor |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 0mV |
| Number of Supervisors | 1 |
| Output Driver | Active Low, Open Drain |
| Monitored Voltage | 4.35V |
| Reset Active Time | 300ms |
Key Features
- This device includes a manual reset feature for system reliability.
- It features an active low, open drain output driver for flexible interfacing.
- The monitored voltage threshold is 4.35 V ensuring precise voltage supervision.
- Operating temperature range extends from -40°C to 85°C suitable for harsh environments.
- Suitable for through-hole mounting and packaged in a TO-92 form factor.
- Reset active time is 300 ms for stable reset signaling.
- Maximum supply voltage rating is 5.5 V for compatibility with low voltage systems.
- Ideal for microprocessor supply voltage supervision in laptops, desktops, and battery-powered instruments.
Product Description
Maxim Integrated model DS1813-10+ is a 1 Voltage Supervisor device housed in a 3-Pin TO-92 package. It is designed to provide reliable power supply monitoring and microprocessor reset functionalities.
This voltage supervisor monitors the 4.35 V supply voltage with a manual reset capability, providing a dependable system reset signal during undervoltage conditions. Featuring an active low open drain output, it allows easy integration into various system designs.
The device operates in a temperature range from -40°C to 85°C, making it suitable for industrial and commercial electronics including desktop computers, laptops, portable battery-powered equipment, and test instrumentation.
The compact TO-92 through-hole package with dimensions of approximately 4.95 mm x 4.95 mm x 3.94 mm provides ease of mounting in traditional PCB assemblies. Manual reset to ensure controlled system reset. Active low open drain output driver.
Monitored voltage fixed at 4.35 V for precise supervision. Wide operating temperature range (-40°C to 85°C). TO-92 3-pin through-hole package for easy installation. Reset active time of 300 ms for stable reset signaling.
Maximum supply voltage limit of 5.5 V for device protection. Applicability in microprocessor power supply supervision and reset.
This voltage supervisor is an essential component for safeguarding microprocessor systems against power failures and ensuring consistent operation in industrial, commercial, and instrumentation applications.
Explore more power management ICs and Voltage Supervisor products in the Electronics & Electricals category at EnvMart.
