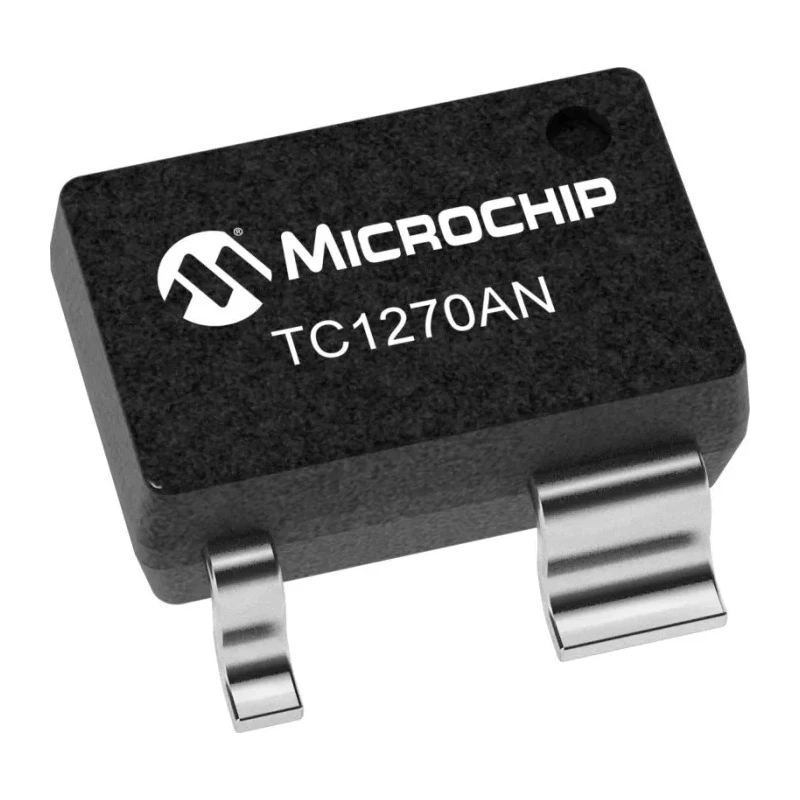

Microchip Precision Monitor Voltage Supervisor 4-Pin SOT-143 Package 4.72V Reset Threshold TC1270ANRVRCTR

Free Delivery in India | Lowest Global Shipping Charges

Microchip Precision Monitor Voltage Supervisor 4-Pin SOT-143 Package 4.72V Reset Threshold TC1270ANRVRCTR

Name: Microchip Precision Monitor Voltage Supervisor 4-Pin SOT-143 Package 4.72V Reset Threshold TC1270ANRVRCTR
Brand: Microchip
SKU: 176803



Category Voltage Supervisors Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Model	TC1270ANRVRCTR
Mount Type	Surface
Series	TC1270A
Maximum Operating Temperature	125°C
Package Type	SOT-143
Sub Type	Precision Monitor
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Automotive Standard	AEC-Q100
Minimum Supply Voltage	7V
Output Driver	CMOS
Reset Threshold Voltage	4.72V
Reset Active Time	280ms

Key Features

Operates with a fast response to negative-going supply voltage changes.
Includes manual reset input for controlled system reset.
Output driver type is CMOS for stable signal transmission.
Compact SOT-143 surface-mount package with 4 pins.
Wide operating temperature range from -40°C to 125°C suitable for automotive use.
Complies with RoHS standards and meets AEC-Q100 automotive reliability.
Reset active time is 280 milliseconds to guarantee proper system startup.
Operating voltage range is from 1.0 V to 5.5 V with 10 mA input and output currents.

Product Description

Microchip TC1270ANRVRCTR is a precision voltage supervisor designed to maintain microcontroller stability by keeping the system in reset until the voltage reaches a safe and stable level. This 4-pin device in a SOT-143 package provides protection against brown-out conditions, ensuring reliable operation in automotive and industrial electronic environments.

The device features a manual reset input along with a CMOS output driver for robust control signals. It responds rapidly to negative voltage changes preventing glitches during power-up. The reset threshold voltage is accurately set at 4.72 volts, with a reset active time of 280 milliseconds, facilitating effective system resets.

Designed for surface mounting, the compact SOT-143 package simplifies PCB integration in space-constrained designs. The operating temperature extends from -40°C to 125°C making it suitable for automotive AEC-Q100 standard applications ensuring long-term reliability under harsh conditions.

The TC1270ANRVRCTR supports an operating voltage from 1.0 V to 5.5 V with an input and output current capability of 10 mA. Its compliance with RoHS makes it an environmentally friendly choice in power management circuits.

Fast response to negative supply voltage changes protects sensitive microcontrollers. Manual reset input allows external control of reset signals. Output driver is CMOS type, ensuring stable and efficient signal handling.

SOT-143 package with 4 pins suitable for compact PCB layouts. Temperature range supports automotive and industrial-grade electronic systems. RoHS compliant and meets AEC-Q100 automotive standards for reliability. Reset threshold at 4.72 V ensures precise voltage supervision.

Reset active time of 280 ms provides stable reset timing.

This precision monitor device is ideal for automotive, industrial, and other commercial electronics requiring reliable voltage supervision and brown-out protection. It assures safe microcontroller operation and system integrity in critical applications.
