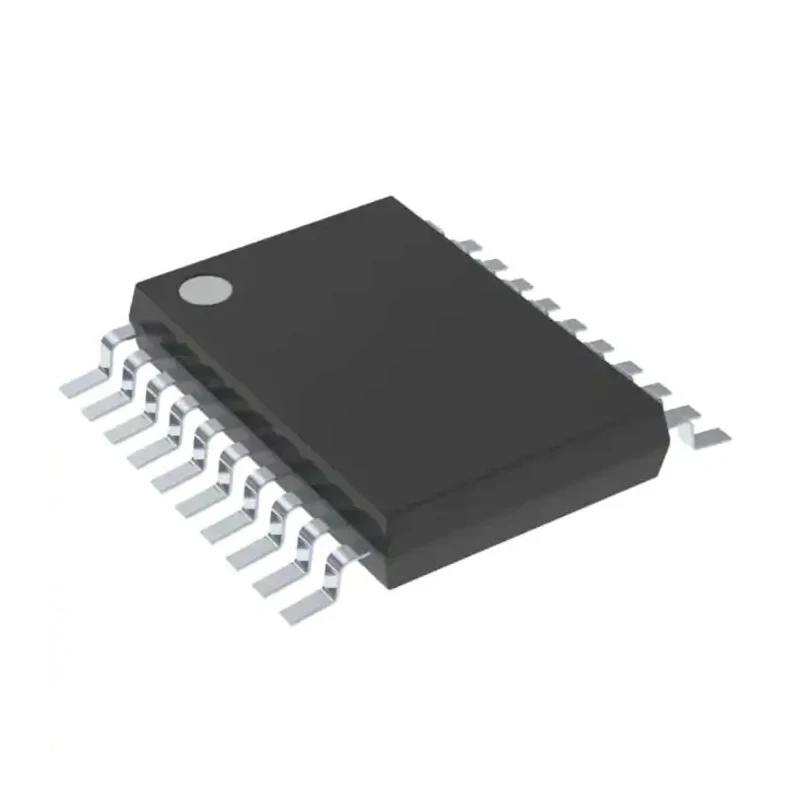

Microchip Digital to Analogue Converter 8-Bit 4-Channel SPI 20-Pin TSSOP MCP48FVB04-20E/ST
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 8 bit |
| Brand | Microchip |
| Height | 1.2mm |
| Length | 4.5mm |
| Model | MCP48FVB04-20E/ST |
| Width | 3.1mm |
| Settling Time | 7.8μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Interface Type | SPI |
| Architecture | Resistor Ladder |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Features 8-bit resolution for accurate analogue voltage conversion.
- Includes four independent channels for multi-signal processing.
- Utilizes SPI interface for seamless communication and control.
- Operates reliably between -40°C and 125°C temperature range.
- Compact TSSOP package with 20 pins measuring 4.5mm x 3.1mm x 1.2mm.
- Works within a supply voltage range of 2.7V to 5.5V.
- Fast settling time of 7.8 microseconds for rapid signal response.
- Resistor Ladder architecture enhances linearity and performance.
Product Description
Microchip MCP48FVB04-20E/ST is a high-quality digital to analogue converter designed for electronic applications requiring precise 8-bit voltage outputs. This DAC supports four independent channels, enabling simultaneous multi-signal conversion in a single compact unit.
The device employs a resistor ladder architecture coupled with buffered outputs to ensure high linearity and stable analogue voltages. Featuring an SPI-compatible interface, it allows easy integration into SPI-enabled microcontroller and digital systems.
Operating across a supply voltage range from 2.7V to 5.5V, this DAC provides flexibility for various power environments. Its compact 20-pin TSSOP package, measuring 4.5mm in length, 3.1mm in width, and 1.2mm in height, is ideal for space-constrained circuit board designs.
Designed to function in harsh industrial and commercial environments, the MCP48FVB04-20E/ST supports extended operating temperatures from -40°C up to 125°C. The quick settling time of 7.8 microseconds allows for responsive signal conversions necessary in precise control applications.
8-bit resolution enables accurate analogue voltage generation. Four independent channels provide multi-output capability. SPI interface ensures straightforward digital communication. Robust temperature range supports demanding industrial conditions.
Compact TSSOP package enables dense PCB layouts. Wide supply voltage range enhances operational versatility. 7.8 μs settling time supports rapid data conversion. Resistor ladder architecture delivers linear and stable output.
Buffered voltage outputs enhance signal quality. Ideal for applications in electronics, industrial controls, automation, and instrumentation.
This Digital to Analogue Converter is suited for industrial, semiconductor manufacturing, embedded systems, and general electronic component applications. Integrators and engineers can trust the MCP48FVB04-20E/ST for its stability, precision, and reliable performance in complex digital-to-analogue signal conversion tasks.
Explore EnvMart’s extensive range of semiconductor and electronic components to complement your system design and development projects. Discover specialized DACs and related devices optimized for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an 8-bit resolution for accurate analogue voltage conversion.
It includes four independent channels, allowing for multi-signal processing simultaneously.
The MCP48FVB04-20E/ST operates reliably between -40°C and 125°C, making it suitable for harsh environments.
It utilizes an SPI interface for seamless communication and control with microcontrollers and digital systems.
This unit has a fast settling time of 7.8 microseconds, ensuring rapid signal response.
The compact TSSOP package measures 4.5mm in length, 3.1mm in width, and 1.2mm in height.
It operates within a supply voltage range of 2.7V to 5.5V, providing flexibility for various applications.
It employs a resistor ladder architecture, which enhances linearity and performance in voltage conversion.
The output type is analogue voltage, suitable for various electronic applications.
This model features a pin count of 20, suitable for compact circuit designs.
The country of origin for this digital to analogue converter is India.
It is suited for applications in electronics, industrial controls, automation, and instrumentation.
