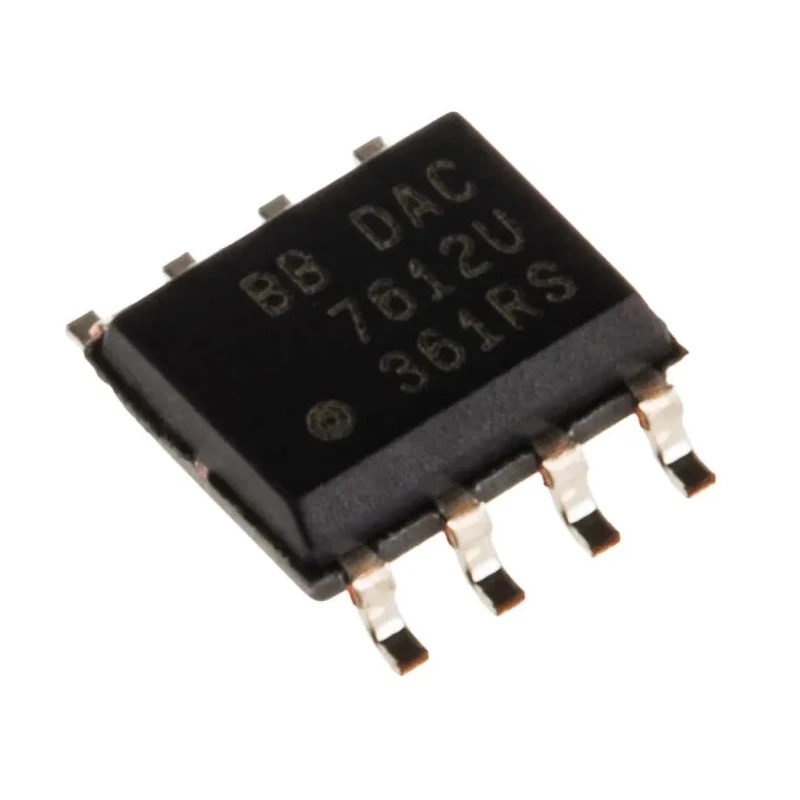

Texas Instruments 12-Bit 2-Channel Digital to Analogue Converter SPI Interface 130ksps 8-Pin SOIC DAC7612U
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Texas Instruments |
| Height | 4.9mm |
| Model | DAC7612U |
| Width | 1.58mm |
| Mount Type | Surface |
| Settling Time | 7μs |
| Sampling rate | 130ksps |
| Series | DAC7612 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Interface Type | SPI |
| Architecture | Resistor String, R-2R |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5V |
Key Features
- Offers 12-bit resolution for precise digital-to-analogue conversion.
- Features 2 output channels suitable for dual signal processing.
- Operates with a maximum supply voltage of 5 volts for efficient power usage.
- Equipped with an SPI interface for seamless serial data communication.
- Compact surface-mount SOIC package with 8 pins for easy PCB integration.
- Sampling rate of 130ksps enables high-speed conversion applications.
- Designed for operation within a temperature range from -40°C to 85°C.
- Implements resistor string R-2R architecture ensuring reliable voltage outputs.
Product Description
Texas Instruments DAC7612U is a precision 12-bit digital to analogue converter designed for applications requiring dual channel outputs and fast data conversion. Featuring a high sampling rate of 130ksps and a robust SPI serial interface, this DAC supports efficient, high-speed digital signal processing.
Its compact 8-pin SOIC surface-mount package simplifies integration into modern electronic devices, saving board space. The DAC7612U employs a resistor string R-2R architecture providing accurate and stable voltage outputs with a fast settling time of 7 microseconds.
Operating reliably over a wide temperature range from -40°C to 85°C and at a maximum voltage supply of 5 volts, it is suitable for challenging industrial and commercial environments. The internal voltage reference enhances design simplicity by eliminating the need for external reference sources.
This DAC complies with key environmental and safety regulations such as RoHS and REACH, ensuring compliance for various markets. Offers 12-bit resolution for high accuracy digital-to-analogue conversion. Dual output channels allow simultaneous two-signal DAC operations.
High sampling rate of 130ksps for quick data throughput. SPI interface supports straightforward serial communication. Compact 8-pin SOIC surface mount packaging facilitates PCB assembly. Wide operating temperature range from -40°C to 85°C for versatile applications.
Resistor string R-2R architecture delivers consistent output voltages. Fast settling time of 7 microseconds suits dynamic signal changes. Internal voltage reference reduces external component requirements. RoHS and REACH compliant supporting environmentally responsible design.
This Digital to Analogue Converter is ideal for applications in industrial control, instrumentation, communications, and other electronic systems requiring precise analog output and compact integration. Explore more components from Texas Instruments and other trusted brands at EnvMart to enhance your electronic designs and manufacturing processes.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DAC7612U offers a resolution of 12 bits for precise digital-to-analogue conversion.
It operates with a maximum supply voltage of 5 volts, ensuring efficient power usage.
This digital to analogue converter has a sampling rate of 130ksps, suitable for high-speed data conversion applications.
This model features 2 output channels, allowing for dual signal processing.
It is equipped with an SPI interface for seamless serial data communication.
The settling time for the DAC7612U is 7 microseconds, which is suitable for dynamic signal changes.
The dimensions of this model are 4.9mm in height and 1.58mm in width, making it compact for integration.
It operates reliably within a temperature range from -40°C to 85°C, suitable for various environments.
This model employs a resistor string R-2R architecture, ensuring reliable voltage outputs.
Yes, it complies with RoHS and REACH standards, ensuring it meets key environmental regulations.
It features a surface mount design, specifically in an 8-pin SOIC package for easy PCB integration.
This digital to analogue converter is ideal for applications in industrial control, instrumentation, and communications requiring precise analog output.
