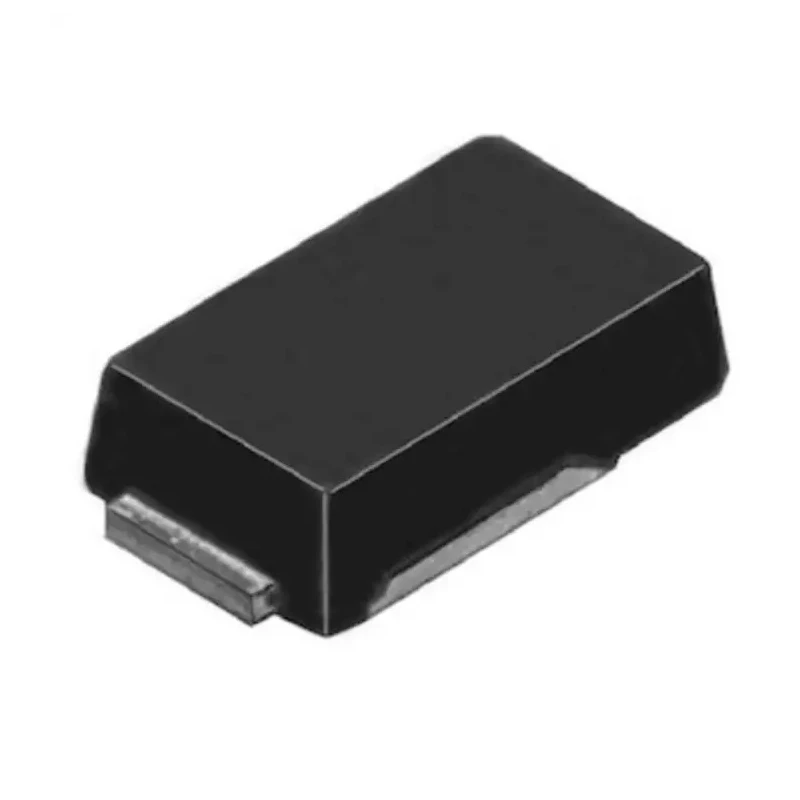

Vishay 100 V 2 A General Purpose Schottky Diode Surface Mount DO-220AA VS-2ENH01HM3/84A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 4mm |
| Model | VS-2ENH01HM3/84A |
| Width | 2.18mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-220AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 1V |
Key Features
- The diode features a surface mount configuration in a compact DO-220AA package.
- Offers a low forward voltage drop of 1 V maintaining low power losses.
- Operates efficiently within a wide temperature range from -55°C to 175°C.
- Designed for applications requiring fast switching speeds and low leakage current.
- Compliant with AEC-Q101 automotive standards ensuring reliability in automotive environments.
- Suitable for high frequency inverters, freewheeling, DC/DC converters, and polarity protection.
- Compact physical dimensions measuring 4 mm length, 2.18 mm width, and 1.15 mm height.
Product Description
Vishay VS-2ENH01HM3/84A is a high-performance general purpose Schottky diode designed to operate at a peak reverse voltage of 100 V and support a maximum continuous forward current of 2 A. This surface mount device utilizes a DO-220AA package type which offers a compact footprint suitable for modern electronic assemblies.
The diode features a low forward voltage drop of 1 V which contributes to reduced power dissipation and higher efficiency, particularly beneficial in fast switching applications.
Operating temperature range spans from -55°C to 175°C, delivering reliable performance across demanding industrial, automotive, and commercial environments. The device exhibits low leakage current and is rated for a peak non-repetitive forward surge current of 40 A.
It complies with AEC-Q101 automotive standards, making it appropriate for use in automotive electronics as well as industrial power applications such as inverters, freewheeling circuits, and DC/DC converters. The compact dimensions of 4 mm length, 2.18 mm width, and 1.15 mm height enable space-saving PCB layouts.
The diode’s single configuration ensures straightforward integration into electronic designs. Low thermal resistance improves durability and thermal management in circuits. Its robust electrical characteristics ensure stable operation under repetitive high voltage and current stress.
This Vishay diode is manufactured in China, ensuring verified quality and adherence to relevant manufacturing standards. Explore the broader range of Schottky diodes and rectifiers at EnvMart for varied application requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage rating of this diode is 100 V.
This model can handle a maximum continuous forward current of 2 A.
The diode has a forward voltage drop of 1 V.
It operates efficiently within a temperature range from -55°C to 175°C.
This diode utilizes a DO-220AA package type, which is a surface mount configuration.
The peak non-repetitive forward surge current rating is 40 A.
This diode complies with the AEC-Q101 automotive standard.
The diode measures 4 mm in length, 2.18 mm in width, and 1.15 mm in height.
The peak reverse current for this diode is 20 μA.
It is suitable for high frequency inverters, freewheeling circuits, DC/DC converters, and polarity protection.
This diode has a pin count of 2.
This diode is manufactured in China.
