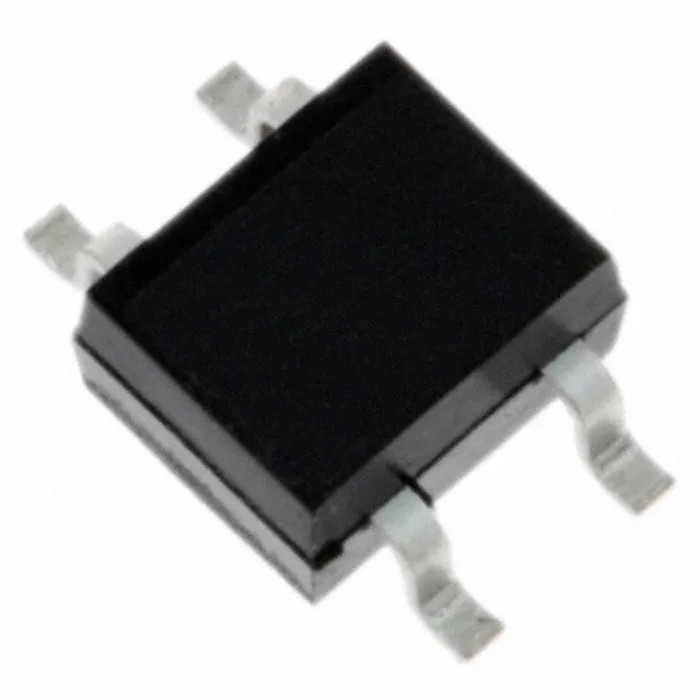

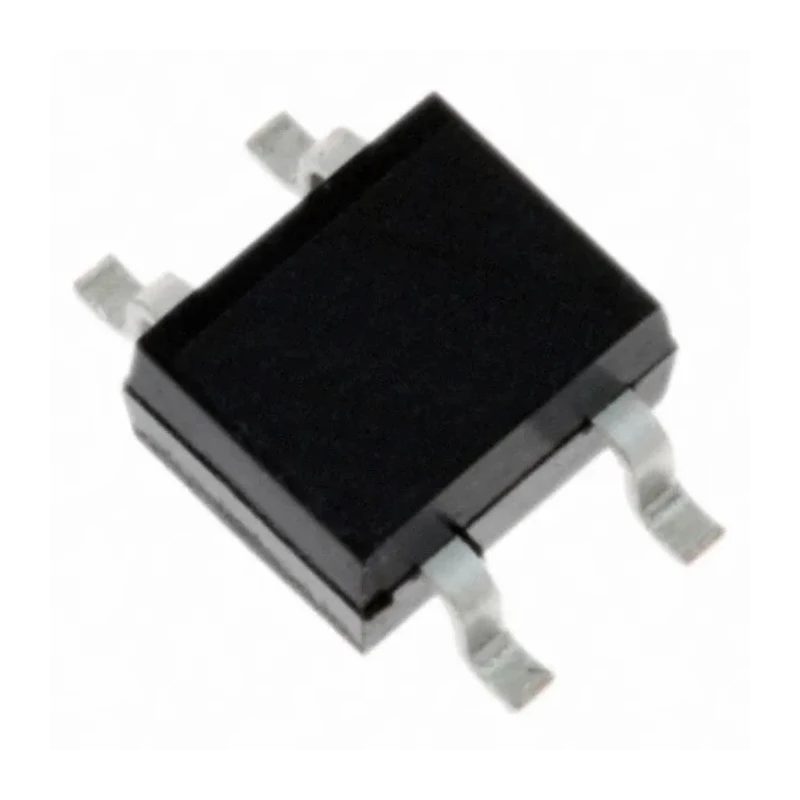

DiodesZetex Bridge Rectifier 1000 V Peak Reverse Voltage 290 A Peak Surge Current 4-Pin Surface Mount HBS Package HBS810-13

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Bridge Rectifier 1000 V Peak Reverse Voltage 290 A Peak Surge Current 4-Pin Surface Mount HBS Package HBS810-13

Name: DiodesZetex Bridge Rectifier 1000 V Peak Reverse Voltage 290 A Peak Surge Current 4-Pin Surface Mount HBS Package HBS810-13
Brand: DiodesZetex
SKU: 169303
Price: 0.57 USD
Availability: InStock



Category Bridge Rectifier Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Model	HBS810-13
Mount Type	Surface
Series	HBS
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	HBS
Minimum Operating Temperature	-55°C
Number of Phases	1
Standards/Approvals	RoHS
Pin Count	4
Automotive Standard	AEC-Q100
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	290A
Forward Current If	8A
Peak Forward Voltage Vf	1V

Key Features

Operates at a maximum forward current of 8 amperes for reliable performance.
Features a 4-pin single configuration in a low profile HBS package.
Maximum operating temperature up to 150°C and minimum up to -55°C for robust thermal handling.
Glass passivated design ensures high reliability and low forward voltage drop.
Compliant with RoHS and automotive standard AEC-Q100 certifications.
Peak forward voltage is rated at 1 volt, improving efficiency in AC to DC conversion.
Designed for efficient full-wave bridge rectification in power supplies and fast charging circuits.
Surface mount package type aids compact PCB design and thermal dissipation.

Product Description

DiodesZetex HBS810-13 Bridge Rectifier is a glass passivated discrete semiconductor device designed to convert AC to DC using full-wave rectification in electronic circuits. It supports a peak reverse repetitive voltage of 1000 V and a peak non-repetitive forward surge current of 290 A while maintaining a maximum forward current of 8 A.

This bridge rectifier comes in a compact 4-pin single configuration within a surface mount HBS package, enabling effective heat dissipation and space saving on printed circuit boards. The device is engineered for operation in extreme temperature ranges from -55°C minimum to 150°C maximum, suitable for demanding industrial and automotive environments.

The peak forward voltage of 1 V ensures low voltage drop during conduction, optimizing power efficiency. It is RoHS compliant and meets the automotive standard AEC-Q100, making it an ideal choice for automotive and harsh industrial applications.

Applications for this rectifier include switching power supplies, fast charging circuitry, and USB Power Delivery systems. Its high surge current handling capacity also makes it suitable for transient conditions in power conversion.

Operates reliably with a forward current of 8 A. Glass passivated for increased longevity and performance. Low forward voltage drop enhances efficiency. Wide operating temperature range supports diverse industrial uses. Complies with RoHS environmental standards and AEC-Q100 automotive quality.

Surface mount HBS package suitable for compact PCB assemblies.
