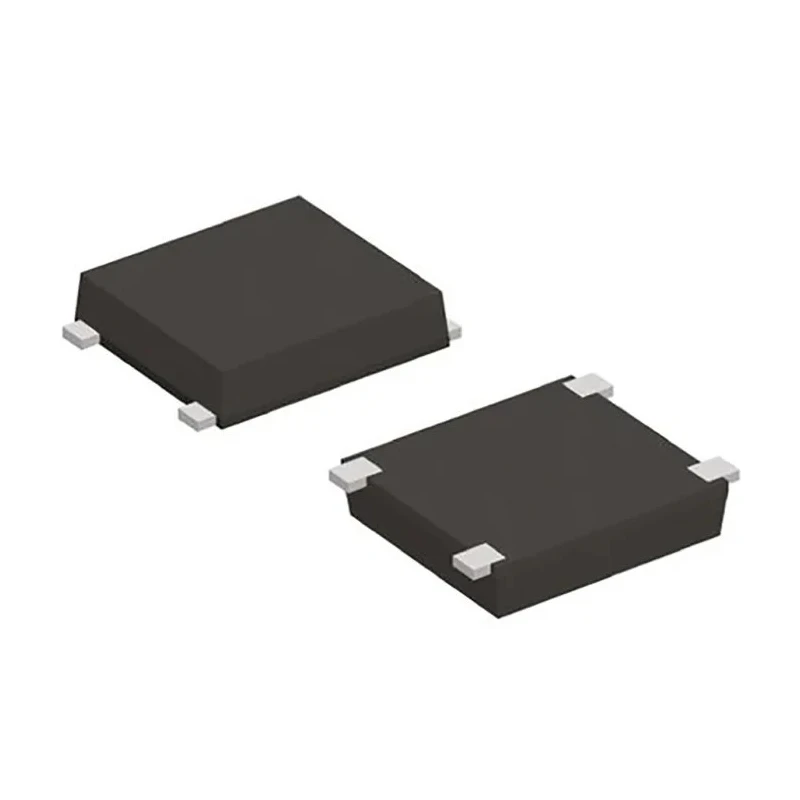

DiodesZetex Bridge Rectifier 1000 V 100 A 4-Pin Surface Mount MSB30M-13

DiodesZetex MSB30M-13 bridge rectifier is a high-performance single-phase rectifier designed to efficiently convert alternating current (AC) inputs into a direct current (DC) output, making it essential for numerous electronic and industrial applications.

This component features a surface mount MSBL package with a compact, thin profile measuring 6.7 mm in length, 7.4 mm in width, and 1.42 mm in height, allowing for space-saving designs on printed circuit boards.

It supports a peak reverse repetitive voltage (Vrrm) of 1000 volts and a forward current (If) of 3 amps, capable of sustaining high peak non-repetitive forward surge currents up to 100 amps during transient conditions, thereby providing robust operational reliability.

The device operates effectively across a temperature range of -55°C to 150°C, suitable for various industrial and commercial environments. The glass passivated die construction provides durability, thermal stability, and resistance to environmental factors, enhancing the lifespan of the rectifier.

Compact 4-pin surface mount MSBL package for easy PCB integration. Peak reverse voltage rating of 1000 V ensures protection against voltage spikes. Supports continuous forward current of 3 A and surge current handling up to 100 A.

Wide operating temperature from -55°C to 150°C supports diverse applications. Low forward voltage drop of 1.1 V improves efficiency and reduces power loss. Robust glass passivated construction ensures reliability and durability.

Thin profile aids in compact electronic designs.

Typical industrial applications include power supplies, rectification circuits in electronics manufacturing, and various control and automation equipment in sectors such as industrial machinery and instrumentation.
