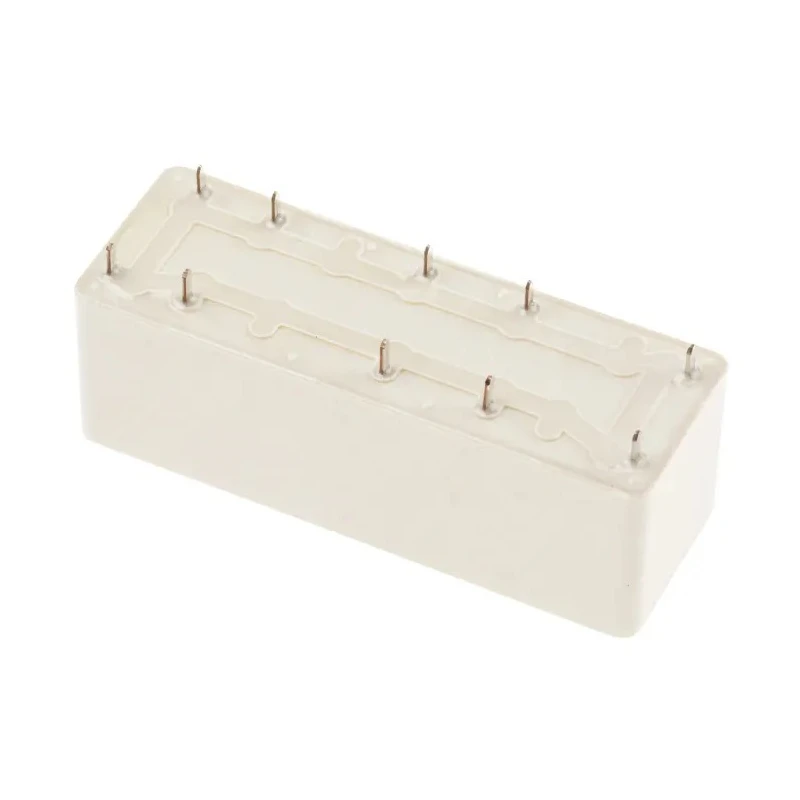

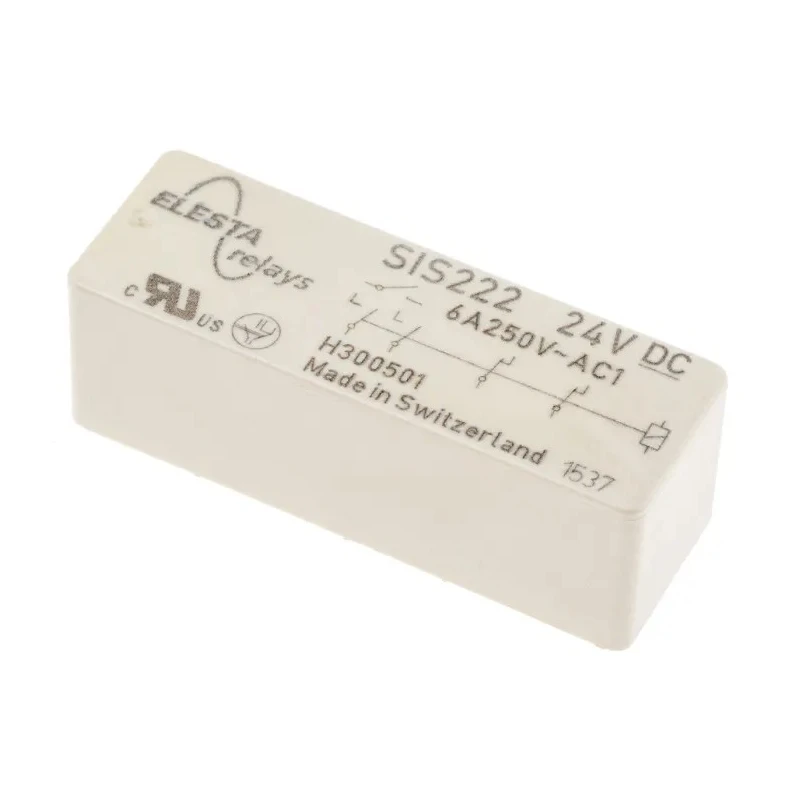

Elesta PCB Force Guided Relay, 24V DC Coil Voltage, 2-Pole DPDT, Gold Plated Contacts SIS 222 24VDC
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Elesta |
| Height | 16.5mm |
| Length | 48mm |
| Model | SIS 222 24VDC |
| Depth | 16.6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SIS 4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| Coil Resistance | 1.15kΩ |
| Coil Power | 0.5W |
| - Contact mounting | SIS312 3NO/1NC SIS222 2NO/2NC |
| - For Railway Applications | EN 50155 |
Key Features
- Force guided contacts provide protective separation between control and load circuits.
- Complies with EN 50205 type A standard for double and reinforced insulation.
- Compact dimensions of 48mm length, 16.5mm height, and 16.6mm depth.
- Low mean coil power consumption of 0.5W with holding power of 0.15W.
- Suitable for railway applications compliant with EN 50155 certification.
- Coil resistance is 1.15 kΩ with solder type terminals for PCB mounting.
- Operates reliably within -40°C to 70°C temperature range.
- Supports contact mounting configurations SIS312 3NO/1NC and SIS222 2NO/2NC.
Product Description
Elesta SIS 222 24VDC is a PCB-mounted force guided relay designed for industrial and railway applications, providing safe and reliable switching with 2-pole DPDT (Double Pole Double Throw) contact configuration. Its gold plated contacts guarantee low resistance and high durability, while small external dimensions (48mm x 16.5mm x 16.6mm) make it suitable for compact PCB installations. The relay features a low coil power consumption of 0.5W and a holding power of 0.15W, improving energy efficiency.
The relay ensures protective separation between control and load circuits with leakages and creepage distances exceeding 8mm, compliant with EN 50205 type A standards, and possesses double and reinforced insulation for operational safety. It withstands extreme temperatures, operating reliably within -40°C to 70°C, suitable for demanding industrial environments.
With solder-type terminals making it easy to mount on PCBs, the relay supports contact mounting types SIS312 3NO/1NC and SIS222 2NO/2NC, while its coil resistance is rated at 1.15kΩ. Designed specifically for railway applications conforming to EN 50155 standards, the device ensures stable operation under railway system conditions.
The gold plated contacts enhance conductivity and resist corrosion, while the compact form factor facilitates integration into various electronic control systems. This relay is optimal for industrial automation, railway signal control, safety interlocking, and other applications requiring robust, reliable switching in harsh operational environments.
Force guided contacts provide protective separation between control and load circuits. Complies with EN 50205 type A for double and reinforced insulation. Compact dimensions facilitate PCB mounting and space-saving layouts.
Low coil power improves energy efficiency in control circuits. Suitable for railway applications compliant with EN 50155. Solder terminal type for reliable PCB integration. Wide operating temperature range ensures performance in harsh environments.
Gold plated contacts ensure excellent conductivity and long service life. Supports multiple contact mounting configurations for flexibility. Explore a wide range of Elesta Force Guided Relays and related electrical products on EnvMart for industrial and railway applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 24V DC.
It features a 2-pole DPDT (Double Pole Double Throw) contact configuration.
The relay has compact dimensions of 48mm in length, 16.5mm in height, and 16.6mm in depth.
The coil resistance is rated at 1.15 kΩ.
It operates reliably within a temperature range of -40°C to 70°C.
This model features solder-type terminals for PCB mounting.
The coil power consumption is low at 0.5W, with a holding power of 0.15W.
Yes, it is compliant with EN 50155 standards for railway applications.
The contacts are made of gold-plated material, ensuring low resistance and high durability.
It supports contact mounting configurations SIS312 3NO/1NC and SIS222 2NO/2NC.
It complies with EN 50205 type A standards for double and reinforced insulation.
This model belongs to the SIS 4 series.
