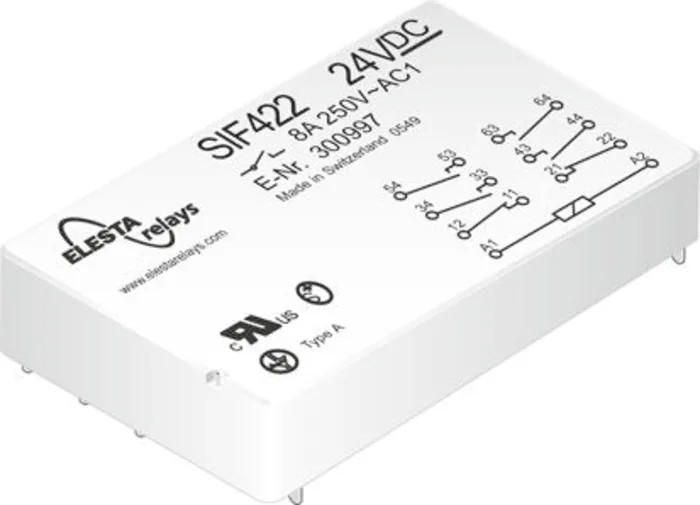

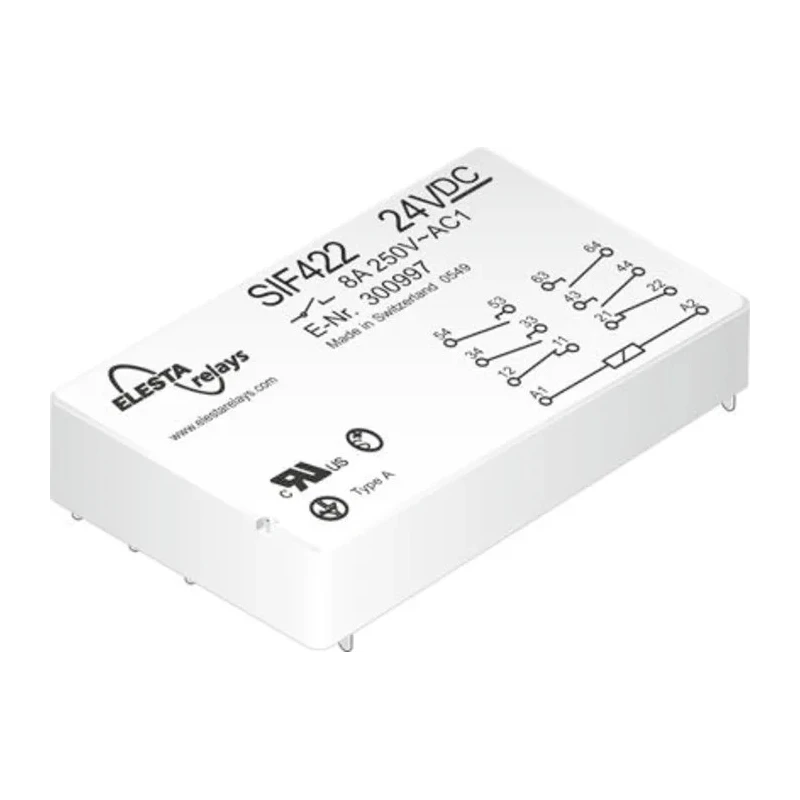

Elesta PCB Force Guided Relay 24V DC Coil Voltage SIF 422 24VDC
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Elesta |
| Height | 10.9mm |
| Length | 53.6mm |
| Model | SIF 422 24VDC |
| Depth | 33.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SIF6 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Coil Resistance | 870Ω |
| Coil Power | 0.66W |
| - Contact mounting | SIF422 4NO/2NC |
| - Compact height | only 10.9mm |
Key Features
- Equipped with forcibly guided contacts to ensure safety and compliance with EN 50205 Type A standards.
- Coil power consumption is 0.66W with a coil resistance of 870 Ω.
- Compact height of 10.9 mm allowing low-profile PCB installations.
- Terminals designed for solder connection facilitating easy integration.
- Suitable for harsh conditions with operating temperature range from -40°C to 70°C.
- Gold plated contact material ensures reliable electrical connections and longevity.
- Complies with railway application standard EN50155, ensuring rugged industrial performance.
- Double and reinforced insulation providing enhanced electrical safety.
Product Description
Elesta SIF 422 24VDC is a PCB mount Force Guided Relay designed for industrial, railway, and automation applications requiring reliable and safety-oriented switching performance. The relay operates with a 24V DC coil, consuming 0.66W power with an 870Ω coil resistance, providing efficient control in low-power circuits.
The package features forcibly guided contacts compliant with EN 50205 Type A, delivering protective separation between coil and contacts with distances greater than 5.5 mm. It has double and reinforced insulation ensuring electrical safety during operation. The compact height of only 10.9 mm and PCB mounting design suit space-constrained electronics.
Terminals are solder type, providing secure and robust connections. The relay withstands a wide operating temperature range from -40°C to 70°C suitable for demanding environmental conditions. Contact materials are gold plated for superior conductivity and corrosion resistance. Contact mounting presents a 4NO/2NC configuration meeting various application needs.
This Elesta Force Guided Relay meets the EN50155 standard for railway applications, confirming its suitability for transportation and industrial control systems. Its solid build and compact design deliver longevity and reliable switching performance in manufacturing, automation, industrial control panels, and specialized electronic equipment.
Equipped with forcibly guided contacts compliant with EN 50205 type A. Compact relay height of 10.9 mm for PCB mounting. Coil power consumption at 0.66W and coil resistance of 870 Ω. Operating temperature range from -40°C to 70°C.
Gold plated contact material for improved electrical performance. Terminals are solder type for secure PCB integration. Contact configuration includes 4NO and 2NC contacts. Double and reinforced insulation for enhanced safety.
Conforms to EN50155 for railway and industrial applications. Manufactured in Switzerland ensuring high quality standards. Explore more industrial Relay and Contactors at EnvMart for comprehensive electrical automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC and has a power consumption of 0.66W.
This model can operate within a temperature range of -40°C to 70°C, making it suitable for harsh environmental conditions.
The relay features a contact configuration of 4 normally open (NO) and 2 normally closed (NC) contacts.
It is equipped with solder-type terminals, facilitating secure connections for PCB integration.
The relay has a compact height of only 10.9 mm, making it suitable for low-profile PCB installations.
The contacts are made from gold-plated material, ensuring reliable electrical connections and longevity.
Yes, it complies with EN 50205 Type A standards for forcibly guided contacts and EN 50155 for railway applications.
The coil resistance of this relay is 870 Ω.
The relay measures 53.6 mm in length and 33.5 mm in depth.
This model is part of the SIF6 series of relays.
It is designed for PCB mounting, making it suitable for various electronic applications.
This relay is manufactured in Switzerland, ensuring adherence to high-quality standards.
