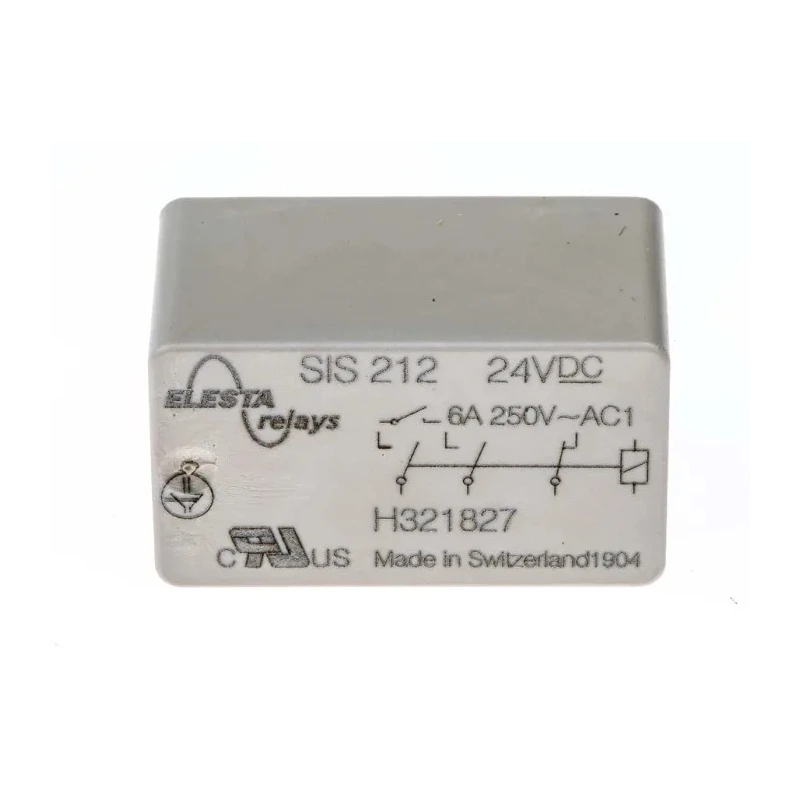

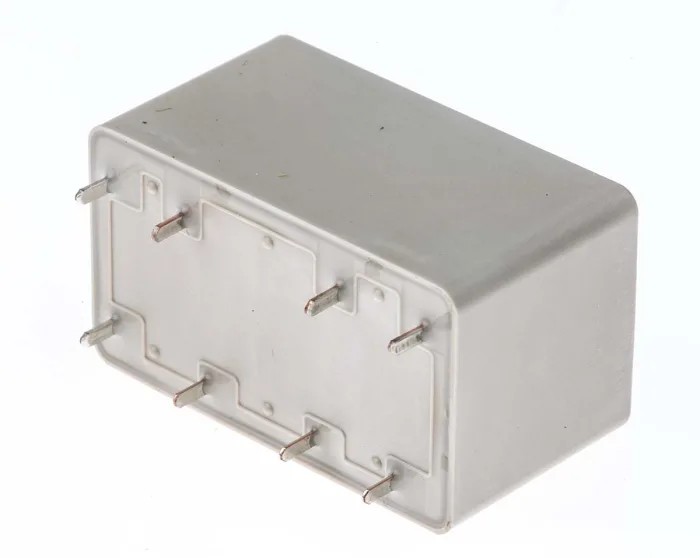

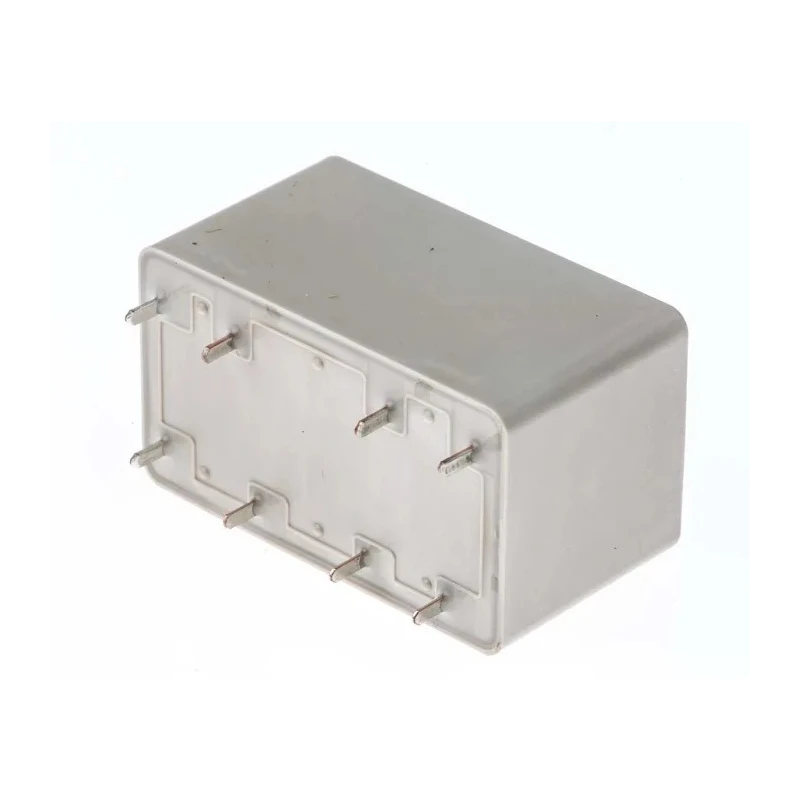

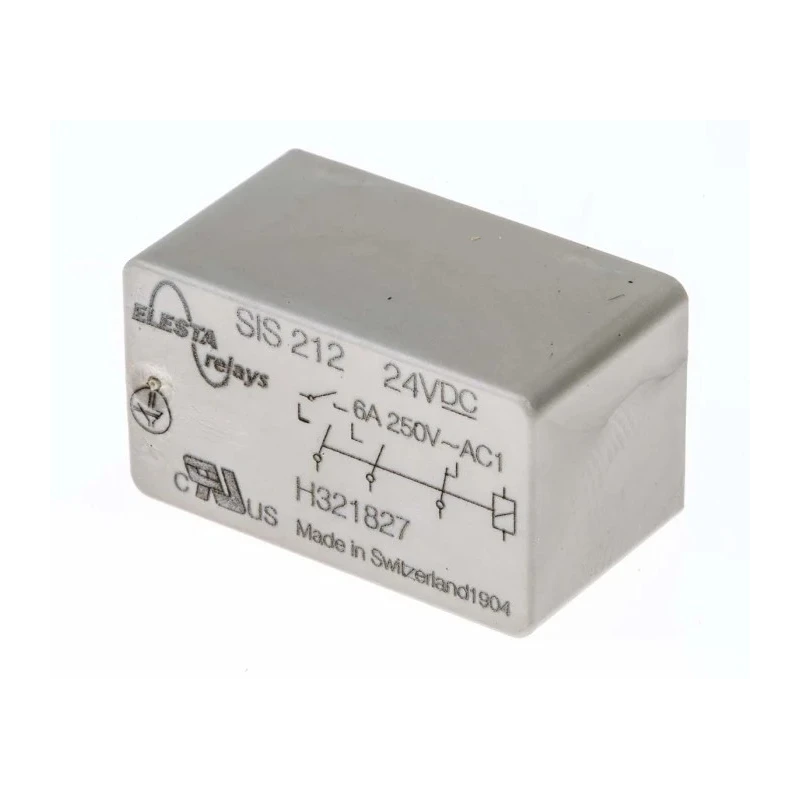

Elesta PCB Force Guided Relay 24V DC Coil Voltage, Coil Resistance 960Ω, Coil Power 0.6W SIS 212 24VDC
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Elesta |
| Height | 16.5mm |
| Length | 29.2mm |
| Model | SIS 212 24VDC |
| Depth | 16.6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SIS 3 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 960Ω |
| Coil Power | 0.6W |
Key Features
- The relay features a coil resistance of 960 ohms for efficient operation.
- The coil power consumption is 0.6 watts, minimizing energy usage.
- It provides protective separation greater than 8 mm between coil/control and output contacts.
- The terminal type is solder, suitable for PCB mounting.
- Operating temperature ranges from -40°C to 70°C, ensuring durability in harsh environments.
- The relay uses gold-plated contact material to enhance conductivity and longevity.
- Physical dimensions include a length of 29.2 mm, height of 16.5 mm, and depth of 16.6 mm.
- Applications include railway systems and safety-related industrial controls.
Product Description
Elesta SIS 212 24VDC PCB Force Guided Relay is a non-latching relay designed for PCB mounting with a 24V DC coil voltage and a switching current capacity of 6A. It features a forcibly guided contact configuration of DPNO and SPNC, suitable for applications requiring safety and reliability.
The coil resistance is precisely 960 ohms, and the coil power consumption is about 0.6 watts, making it energy efficient. The relay offers protective separation exceeding 8 mm between the coil/control contacts and output contacts, providing enhanced electrical isolation and safety.
The relay's solder terminal type supports through-hole mounting, ensuring robust mechanical and electrical connections. It has compact physical dimensions: 29.2 mm in length, 16.5 mm in height, and 16.6 mm in depth. The gold-plated contact material ensures excellent electrical conductivity and corrosion resistance.
Designed for harsh operating conditions, the relay withstands temperatures from -40°C up to 70°C, making it suitable for industrial, safety, railway, and automation systems. It complies with relevant certifications including ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, and EN 50205 standards.
The relay features a coil resistance of 960 ohms for efficient operation. Energy-efficient coil power consumption of 0.6 watts. Protective separation greater than 8 mm between coil/control and output contacts. Solder terminal type supports PCB through-hole mounting.
Operating temperature range from -40°C to 70°C for industrial robustness. Gold-plated contacts enhance conductivity and durability. Compact dimensions: 29.2 mm length, 16.5 mm height, and 16.6 mm depth. Application in railway, safety, and automation industries.
Certified to ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, and EN 50205.
Elesta PCB Force Guided Relay SIS 212 24VDC delivers reliable switching performance and safety compliance for demanding industrial and railway applications. Explore more electronics and electrical components suitable for automation and control systems at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
The coil resistance is 960 ohms, which contributes to its efficient operation.
The coil power consumption is 0.6 watts, making it energy efficient.
The physical dimensions of the relay are 29.2 mm in length, 16.5 mm in height, and 16.6 mm in depth.
It features a solder terminal type, which is suitable for PCB mounting.
The relay can operate within a temperature range of -40°C to 70°C, making it suitable for harsh environments.
The relay uses gold-plated contact material, which enhances conductivity and longevity.
It complies with ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, and EN 50205 standards.
This model supports PCB through-hole mounting, ensuring robust connections.
It is suitable for applications in railway systems and safety-related industrial controls.
The relay provides protective separation greater than 8 mm between the coil/control and output contacts.
This relay belongs to the SIS 3 series.
