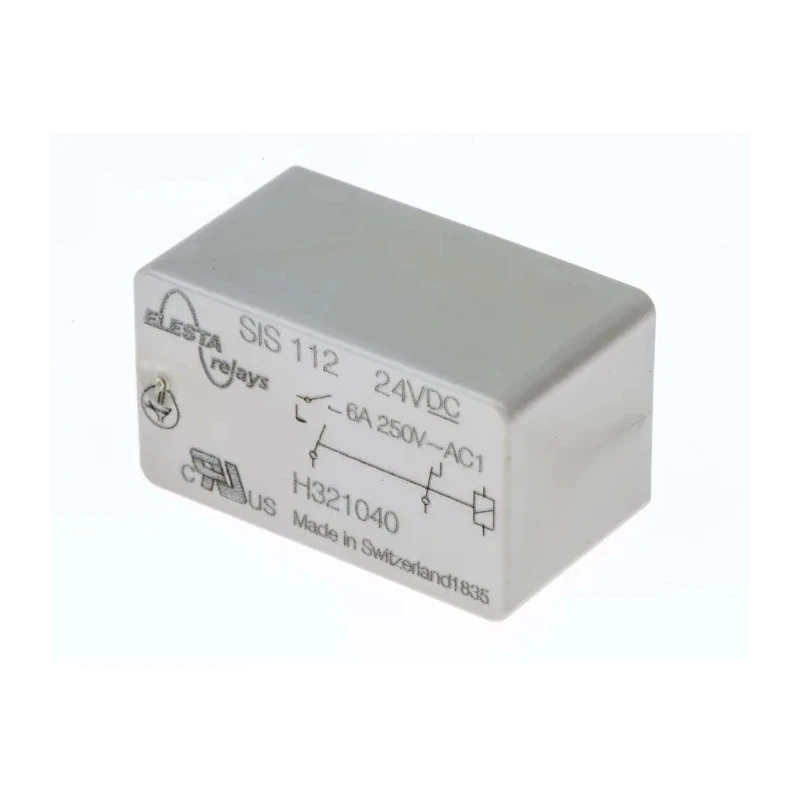

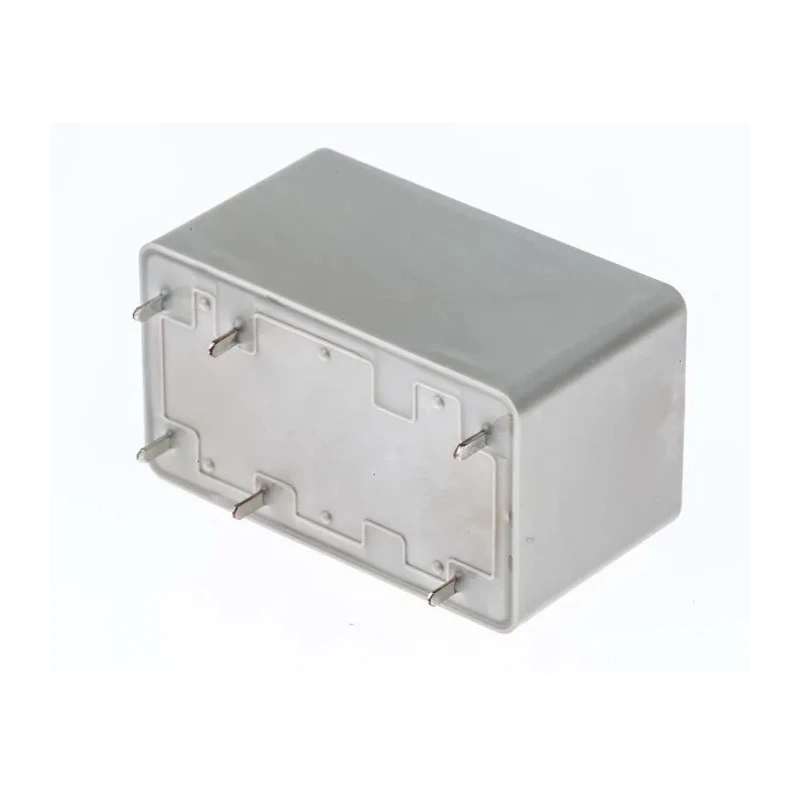

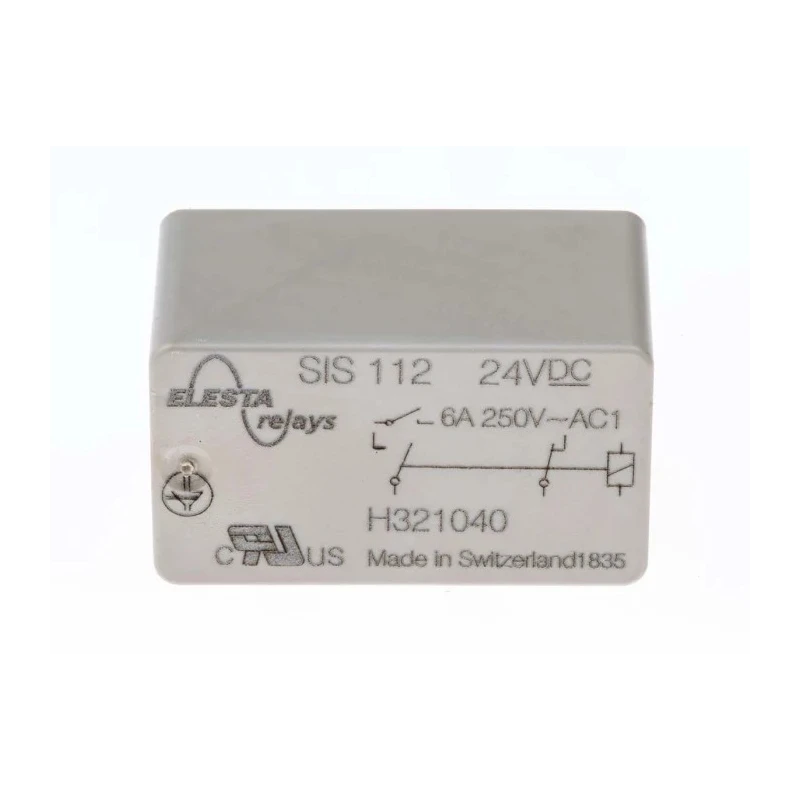

Elesta PCB Mount Force Guided Relay 2-Pole DPST 24V DC Coil Voltage SIS 112 24VDC
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Elesta |
| Height | 16.5mm |
| Length | 29.2mm |
| Model | SIS 112 24VDC |
| Depth | 16.6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SIS 2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 2.1kΩ |
| Coil Power | 0.27W |
Key Features
- This relay features a coil resistance of 2.1kΩ ensuring reliable actuation.
- It has a coil power rating of 0.27W optimized for efficient operation.
- Protective separation over 8mm between coil/control contacts and output contacts enhances safety.
- Gold plated contact material ensures high conductivity and durability.
- Suitable for PCB mounting with a solder terminal type for easy installation.
- Operates reliably in temperatures ranging from -40°C to 70°C.
- Compact dimensions with length 29.2mm, height 16.5mm, and depth 16.6mm.
- Ideal for railway and industrial automation applications requiring force guided relay safety.
Product Description
The Elesta SIS 112 24VDC is a high-quality PCB mount force guided relay designed for industrial and railway applications. It features a dual-pole, double-throw (DPST) contact configuration with a 24 V DC coil voltage and a switching current rating of 6 amperes, ensuring reliable control in safety-critical environments.
This relay has a coil resistance of 2.1 kilo-ohms and a mean coil power consumption of 0.27 watts, providing efficient and consistent actuation over its operating life. The contact set is gold plated to offer excellent conductivity and long-term durability. A protective separation exceeding 8 millimeters between coil/control and output contacts enhances electrical isolation and safety.
Designed for PCB mounting, it incorporates solder terminals facilitating straightforward assembly on printed circuit boards. Its compact physical dimensions (length of 29.2 mm, height 16.5 mm, and depth 16.6 mm) make it suitable for space-constrained installations.
Operating reliably across a broad temperature range from -40°C to 70°C, this relay fulfills rigorous demands of harsh industrial environments. The product adheres to critical standards including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, certifying its robustness and compliance with electrostatic discharge protection requirements.
The Elesta SIS 112 24VDC force guided relay is well-suited for applications requiring reliable signal and safety relay performance such as railway signaling and industrial process automation. Its non-latching design ensures a fail-safe operation with clear forced guidance of contacts.
Coil resistance of 2.1kΩ for steady actuation performance. Coil power rating of 0.27W supporting energy efficiency. Gold plated contacts improving conductivity and lifespan. Protective separation >8mm for enhanced electrical isolation.
PCB mount form factor with solder terminals for ease of installation. Operating temperature range from -40°C to 70°C. Compact dimensions: 29.2mm length, 16.5mm height, 16.6mm depth. Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
Ideal for railway safety systems and industrial automation. Explore more Force Guided Relay options and industrial automation components within the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24 V DC.
It features a dual-pole, double-throw (DPST) contact configuration.
The switching current rating is 6 amperes, suitable for various applications.
The relay has compact dimensions: 29.2 mm in length, 16.5 mm in height, and 16.6 mm in depth.
The coil resistance is 2.1 kilo-ohms, ensuring steady actuation performance.
The coil power rating is 0.27 watts, optimized for efficient operation.
It operates reliably in temperatures ranging from -40°C to 70°C.
This model uses solder terminals for PCB mounting, facilitating straightforward assembly.
The contacts are made of gold-plated material, which enhances conductivity and durability.
It adheres to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrostatic discharge protection.
This relay is ideal for railway signaling and industrial process automation applications requiring reliable safety performance.
There is a protective separation of over 8 mm between the coil/control contacts and the output contacts, enhancing safety.
