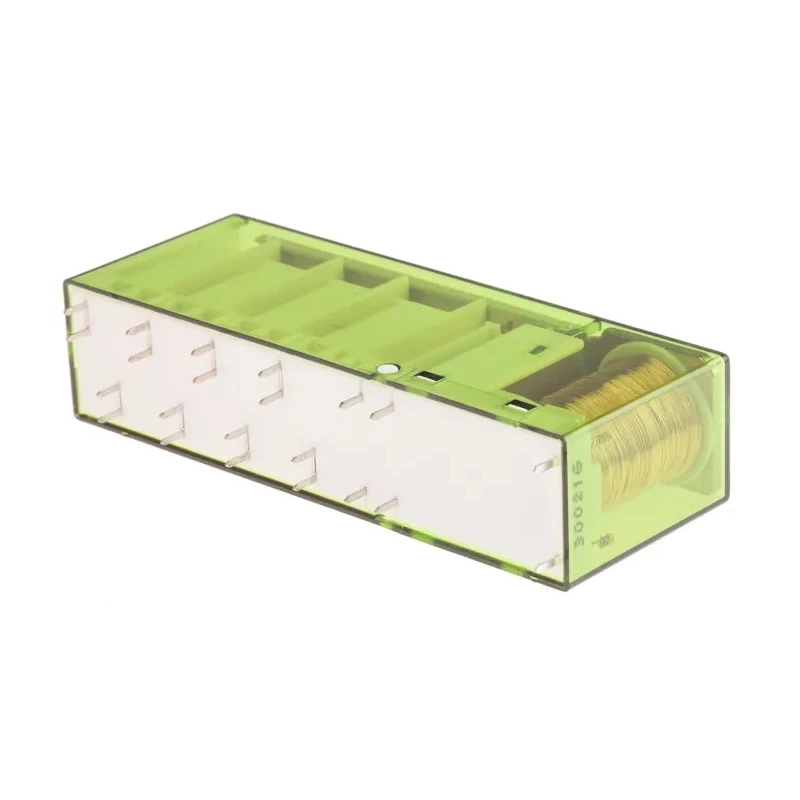

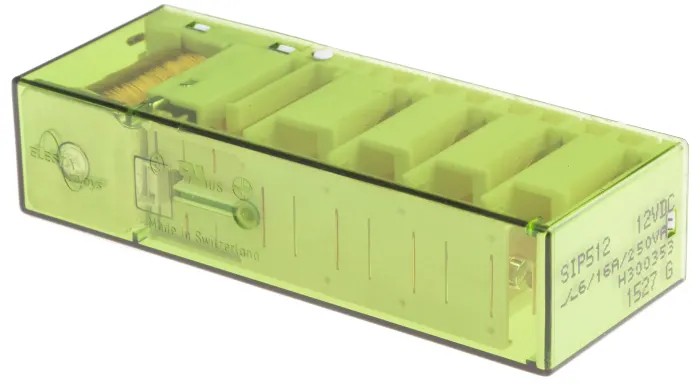

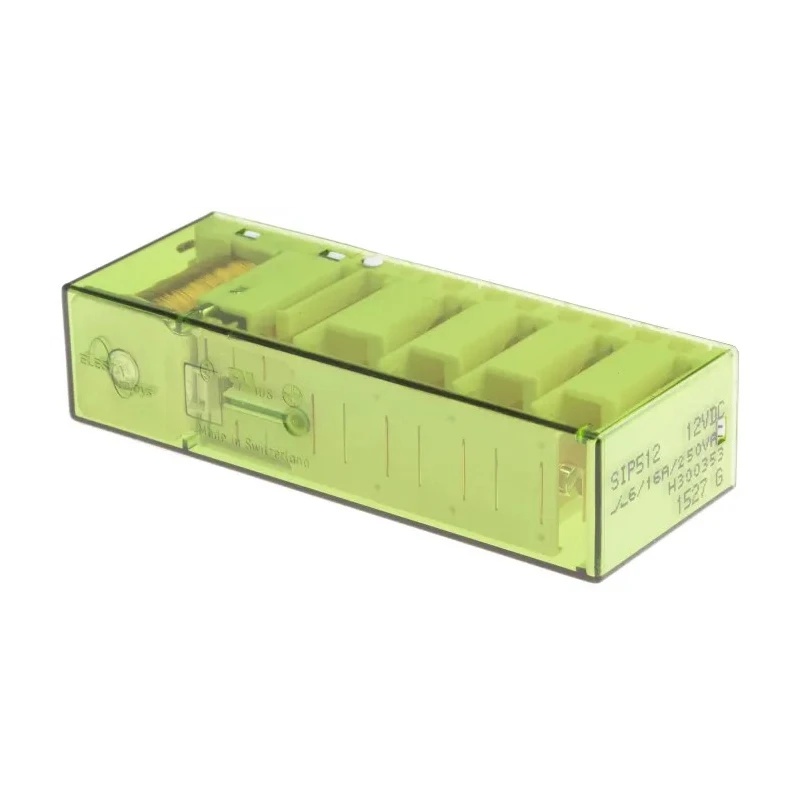

Elesta PCB Force Guided Relay with 12V DC Coil Voltage, 1.3W Coil Power, 110Ω Resistance, Gold Plated Contacts SIP 512 12VDC

Elesta SIP 512 12VDC PCB Force Guided Relay is a precision-engineered industrial relay designed for demanding automation and control applications. Featuring a 12V DC coil voltage and low coil power consumption of 1.3W, this relay integrates forcibly guided contacts to deliver high safety and reliability. It is built to operate effectively over a wide temperature range from -40°C to 70°C, making it suitable for challenging environments including railway and industrial automation systems.

This relay is constructed with gold plated contacts to minimize contact resistance and enhance durability, ensuring long service life under frequent switching operations. The compact PCB mount design with dimensions 84.6 mm length, 32 mm height, and 20 mm depth allows easy integration within compact control panels and printed circuit boards.

Designed to meet EN 50205 type A standards, the SIP 512 12VDC relay offers protective separation greater than 8 mm between coil/control contacts and output contacts, ensuring electrical safety and signal integrity. The relay configuration includes 1 normally open (NO) and 1 normally closed (NC) control contacts alongside 4 normally open output contacts suitable for various control scenarios.

The mean coil power consumption of 1.3W and a low holding power of 0.39W contribute to energy-efficient operation, ideal for applications demanding sustained relay activity without excessive power draw. This product is compliant with EN 50155 regulations, validating its use in railway applications that require high reliability and safety standards.

Features gold plated contacts ensuring high reliability and low contact resistance. Coil resistance is rated at 110Ω which supports controlled current flow. Compact PCB mount with dimensions 84.6 mm length, 32 mm height, and 20 mm depth.

Operates reliably within a temperature range of -40°C to 70°C. Complies with EN 50205 type A standard, suitable for railway applications with EN 50155 certification. Constructed with forcibly guided contacts with protective separation greater than 8 mm.

Includes control contacts 1NO/1NC and output contacts 4NO in a SIP 512 configuration. Mean coil power consumption is 1.3W with a holding power of 0.39W.

This force guided relay is widely used in industrial automation, railway signaling, control systems, and safety-critical applications where forced-contact guidance and protective separation are mandatory for operational safety and compliance. Its compact size, reliable electrical characteristics, and robust manufacturing origin from Switzerland ensure consistent performance in harsh and demanding environments.
