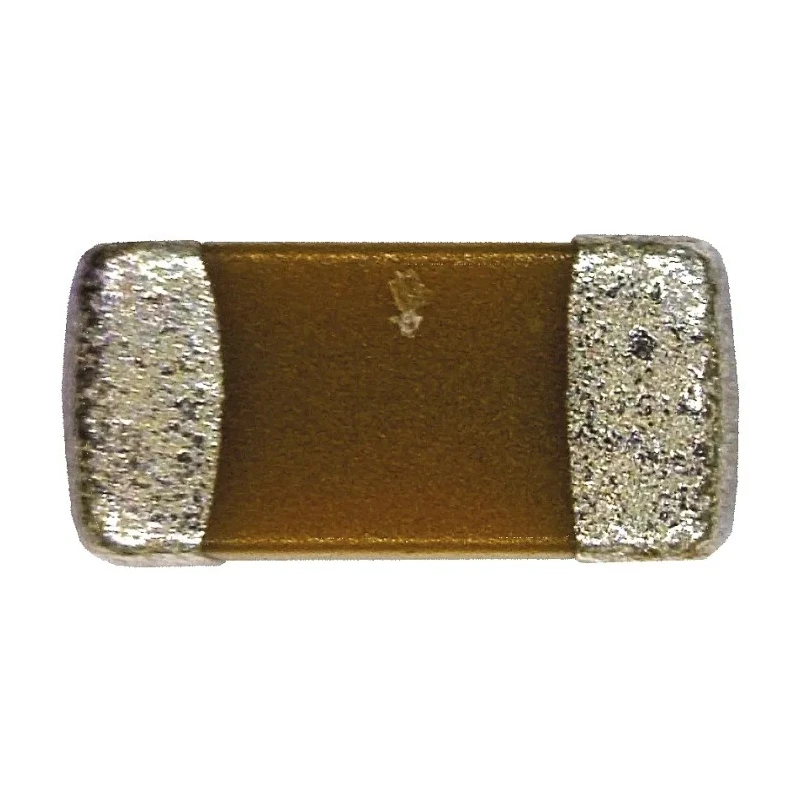

KEMET 680 pF Multilayer Ceramic Capacitor, 100V dc, ±10 % Tolerance, 0603 Surface Mount, X7R Dielectric C0603C681K1RACTU

Free Delivery in India | Lowest Global Shipping Charges

KEMET 680 pF Multilayer Ceramic Capacitor, 100V dc, ±10 % Tolerance, 0603 Surface Mount, X7R Dielectric C0603C681K1RACTU

Name: KEMET 680 pF Multilayer Ceramic Capacitor, 100V dc, ±10 % Tolerance, 0603 Surface Mount, X7R Dielectric C0603C681K1RACTU
Brand: KEMET
SKU: 144364



Category MLCCs - Multilayer Ceramic Capacitors Brand KEMET Condition New

Specifications

Country of Origin	Mexico
Voltage	100V dc
Brand	KEMET
Height	0.8mm
Length	1.6mm
Model	C0603C681K1RACTU
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Construction	Stacked
Series	C
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	680pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X7R
Suppression Class	Class II

Key Features

Offers a capacitance value of 680 pF suitable for precise electronic applications.
Rated for 100V dc operating voltage ensuring stable performance.
X7R dielectric provides temperature stability from -55°C to 125°C.
Surface mount package size 0603 with dimensions 1.6 mm length and 0.8 mm width and height.
Solder termination type with matte tin plating ensures excellent solderability.
Constructed as a stacked multilayer ceramic capacitor for robustness.
Packaged in tape and reel format for efficient automated assembly.
Complies with J-STD-020, IPC-7351, and various EIA standards for quality assurance.

Product Description

The KEMET C0603C681K1RACTU is a 680 pF multilayer ceramic capacitor designed for surface mount technology (SMT) applications. It features an operating voltage of 100V dc with ±10 % tolerance, making it suitable for high-reliability electronic circuits.

With an X7R dielectric, this capacitor maintains stability over a temperature range from -55°C up to 125°C. The compact 0603 package (1.6 mm length, 0.8 mm width and height) supports efficient PCB space usage while providing robust performance.

This capacitor is constructed using a stacked multilayer ceramic design, providing high ripple current capability alongside extremely low equivalent series resistance (ESR) and inductance (ESL). The termination uses 100% pure matte tin-plated finish for excellent solderability and reliable connections.

KEMET's capacitor meets key industry standards including J-STD-020, IPC-7351, EIA 624, EIA 556, and EIA 481 ensuring consistent manufacturing quality and reliability. Although not automotive qualified (AEC-Q200 standard), it is suitable for demanding commercial and industrial use.

Typical use cases include bypassing, filtering, transient voltage suppression, blocking, and energy storage in power and signal circuits. Its small size and high performance make it ideal for compact electronic assemblies in industrial, communication, instrumentation, and consumer electronics.

Capacitance value of 680 pF supports critical timing and tuning circuits. Voltage rating of 100V dc enables safe operation in moderate power applications. X7R dielectric ensures stable capacitor behavior over extended temperature ranges.

Surface mount 0603 case facilitates automated PCB assembly and saves board space. Compliance with multiple industry standards guarantees performance and reliability. This capacitor is provided in tape and reel packaging optimized for surface mount assembly machines, supporting high-volume manufacturing.
