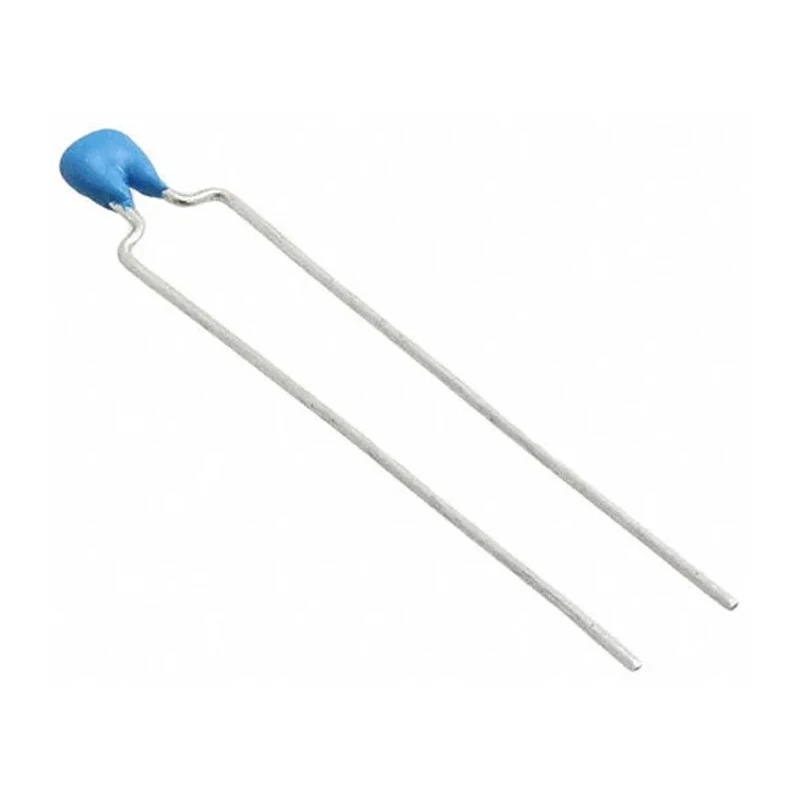

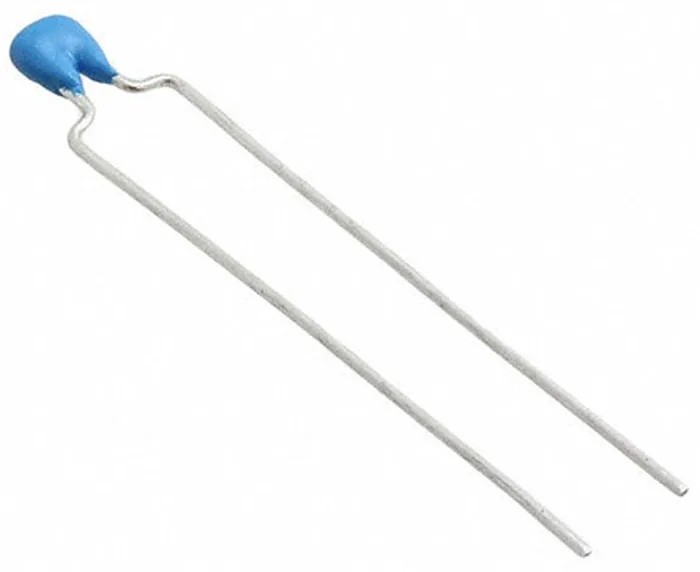

Murata 22 pF 100V DC Multilayer Ceramic Capacitor Through Hole Radial Lead RDE5C2A220J0M1H03A

Murata RDE5C2A220J0M1H03A is a high-quality multilayer ceramic capacitor designed for commercial electronic applications. It features a capacitance of 22 pF and a voltage rating of 100V DC, making it suitable for precise filtering and timing circuits. The capacitor utilizes a C0G dielectric that offers excellent temperature stability and low losses, ideal for high frequency use in consumer electronics and white goods.

This model is built with a through hole radial lead mounting type, providing robust mechanical connection and ease of assembly in printed circuit boards. The compact form factor with dimensions of 4 mm in length, 2.5 mm width and 3.5 mm height allows efficient use of board space. It also includes a lead spacing of 5 mm and lead diameter of 0.5 mm for secure solder joints.

The Murata RDE series capacitors are epoxy resin coated with tin/copper leads ensuring durability and corrosion resistance. It complies with the standards BS EN 61340-5-1:2007, ANSI/ESD S20.20:2014, and RoHS, confirming both quality and environmental compliance.

With a tolerance of 5 pF and capability to operate at temperatures up to 125°C, this capacitor is reliable for various commercial and consumer electronic systems where low ESR and high frequency performance are critical. However, it is not designed for automotive related power train or safety equipment.

The RDE5C2A220J0M1H03A capacitor is packed in an ammo pack improving production efficiency by supplying components ready for insertion into machinery. Its origin is Japan, assuring high manufacturing standards.

Capacitance of 22 pF provides precise filtering in electronic circuits. Rated voltage of 100V DC ensures reliable operation under standard conditions. Through hole radial lead type for secure and stable PCB mounting. Manufactured with C0G dielectric for minimal temperature coefficient and excellent stability.

Tolerance of 5 pF guarantees close capacitance values for precise applications. Compact dimensions of 4 mm length, 2.5 mm width and 3.5 mm height save PCB space. Lead spacing of 5 mm with 0.5 mm diameter leads supports robust connections.

Complies with BS EN 61340-5-1:2007, ANSI/ESD S20.20:2014 and RoHS standards. Maximum operating temperature of 125°C supports use in elevated temperature environments. Suitable for commercial and consumer electronics requiring high frequency, low ESR capacitors.
