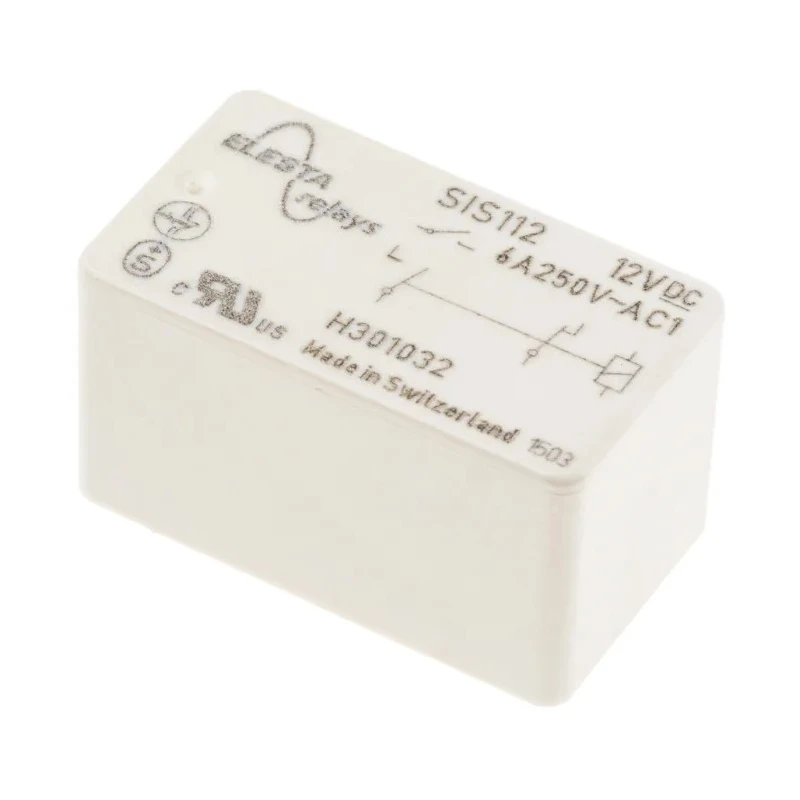

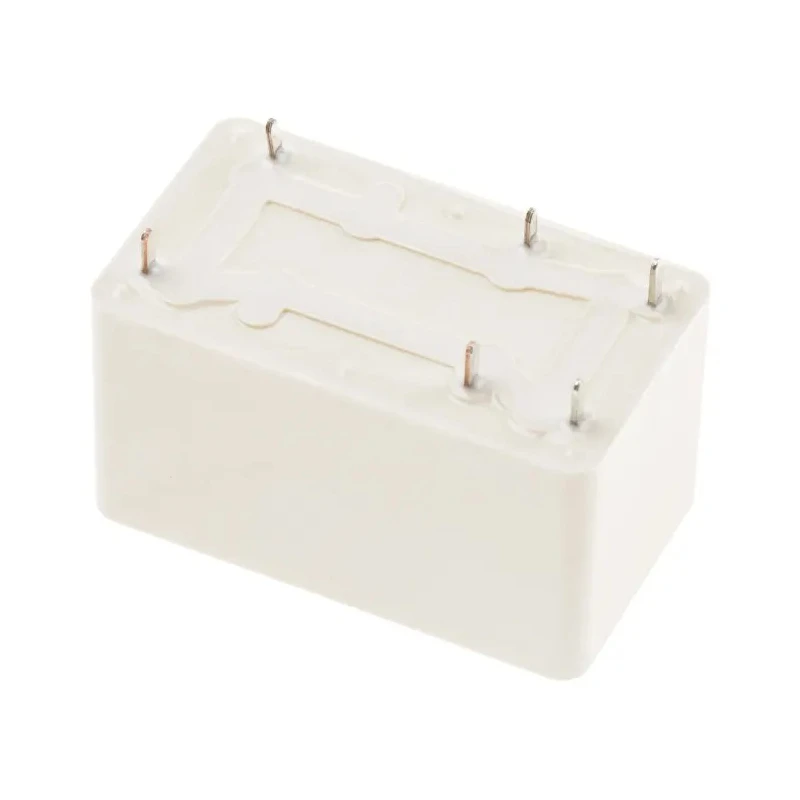

Elesta PCB Force Guided Relay 2-Pole DPST with 12V DC Coil Voltage SIS 112 12VDC
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Elesta |
| Height | 16.5mm |
| Length | 29.2mm |
| Model | SIS 112 12VDC |
| Depth | 16.6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SIS 2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| Coil Resistance | 520Ω |
| Coil Power | 0.27W |
| - Contact mounting | SIS112 1NO/1NC |
| - For Railway Applications | EN 50155 |
Key Features
- Equipped with gold plated contacts for durability and optimal conductivity.
- Coil power consumption is low at 0.27W ensuring energy efficiency.
- Operates reliably in extreme conditions from -40°C to 70°C ambient temperature.
- Provides protective separation between control and load circuits with double and reinforced insulation.
- Designed for railway applications compliant with EN 50155 standards.
- Terminal type is solder for secure and stable connections.
Product Description
Elesta SIS 112 12VDC PCB Force Guided Relay, with 2 poles configured as DPST, features a 12V DC coil voltage and small footprint dimensions (29.2mm length, 16.5mm height, 16.6mm depth). It is highly suitable for applications requiring forcibly guided contacts and robust switching reliability.
The relay incorporates gold plated contacts enhancing electrical performance and longevity. Its coil resistance of 520Ω and coil power consumption of 0.27W contribute to low energy use, with a holding power of 0.08 W, making it efficient for various industrial systems.
Engineered for protective separation between control and load circuits, it meets stringent safety insulation standards (EN 50205, type A) with double and reinforced insulation. The relay is designed for use in demanding railway applications conforming to the EN 50155 specification, ensuring dependable operation under extreme temperature ranges from -40°C to 70°C.
The solder terminal design facilitates secure PCB mounting, making it ideal for control panels, automation systems, and railway signaling equipment. The series SIS 2 relay family provides a standardized solution for force guided relay requirements.
Gold plated contact material ensures high reliability and low contact resistance. Low coil power consumption minimizes energy expenses in continuous operation. Protective separation enhances safety between control and power circuits.
Compact size optimizes PCB space utilization. Compliance with railway standards guarantees operational safety and robustness.
This relay is a premium choice for automation, railway, and industrial circuitry requiring precision and safety. Discover more industrial electrical components in the Force Guided Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of the Elesta SIS 112 relay is 12V DC.
This model features a DPST (Double Pole Single Throw) contact configuration.
The dimensions of this relay are 29.2mm in length, 16.5mm in height, and 16.6mm in depth.
The maximum operating temperature for the Elesta SIS 112 relay is 70°C.
The minimum operating temperature for this model is -40°C.
It uses solder terminals for secure and stable connections.
The coil power consumption is 0.27W, contributing to its energy efficiency.
The contacts of this relay are made of gold plated material, enhancing electrical performance and longevity.
Yes, it is designed for railway applications and complies with the EN 50155 standards.
The coil resistance of this relay is 520Ω.
This relay belongs to the SIS 2 series, which provides standardized solutions for force guided relay requirements.
The relay is designed for PCB mounting, making it suitable for control panels and automation systems.
