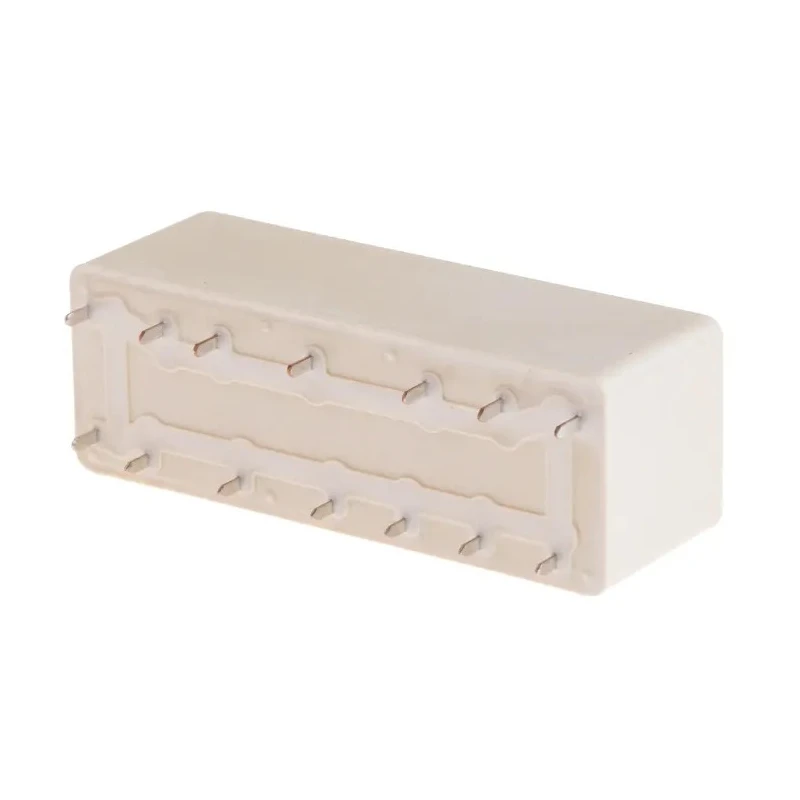

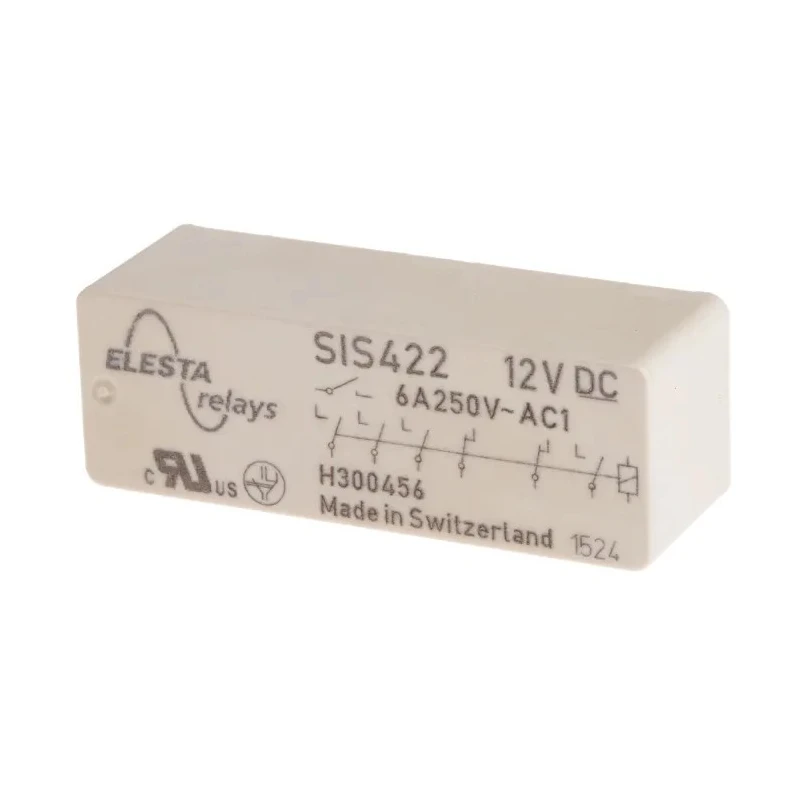

Elesta Force Guided Relay PCB Mount 12V DC Coil Voltage 0.66W Power SIS 422 12VDC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Elesta |
| Height | 16.5mm |
| Length | 48mm |
| Model | SIS 422 12VDC |
| Depth | 16.6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SIS 6 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Coil Resistance | 215Ω |
| Coil Power | 0.66W |
Key Features
- Designed with forcibly guided contacts ensuring protective separation between control and load circuits.
- Compact dimensions of 48mm length, 16.5mm height, and 16.6mm depth for efficient PCB integration.
- Gold plated contact material provides enhanced conductivity and durability.
- Operates within temperature range of -40°C to 70°C suitable for various industrial environments.
- Terminal connections are solder type for secure electrical contacts.
- Compliant with EN 50205 type A standards and reinforced double insulation for safety.
- Low mean coil power consumption of 0.66W with holding power of 0.20W for energy efficiency.
- Ideal for railway and industrial applications requiring reliable force guided relay performance.
Product Description
Elesta SIS 422 12VDC is a high-quality force guided relay designed for printed circuit board (PCB) mounting applications. Featuring a 12V direct current coil voltage and a low coil power of 0.66W, this relay offers efficient operation with minimal power consumption. It incorporates forcibly guided contacts, providing protective separation between control and load circuits with leakage and creepage distances exceeding 8mm. This design ensures enhanced safety and compliance with EN 50205 type A standards.
The relay is compact with dimensions measuring 48mm in length, 16.5mm in height, and 16.6mm in depth, making it suitable for densely populated PCB layouts. Gold plated contacts ensure high conductivity and long service life, while solder-type terminals provide reliable electrical connections. The relay can safely operate within a temperature range from -40°C up to 70°C, fitting industrial, railway, and other demanding operating conditions.
Additional features include double and reinforced insulation between the contacts to enhance electrical isolation and safety. The coil resistance is 215 ohms, supporting a mean coil power of just 0.66 watts and an even lower holding power of 0.20 watts. This low power consumption characteristic supports energy-efficient system designs.
Elesta SIS 422 12VDC relays are particularly well suited for industrial automation, railway systems conforming to EN 50155 standards, and other applications requiring fail-safe force guided relay operation to meet strict safety and reliability criteria.
Protective separation with forcibly guided contacts for safety compliance. Compact size enables integration in tight PCB assemblies. Gold plated contacts ensure conductivity and durability. Wide operating temperature range for industrial environments.
Solder terminals for secure electrical connections. Low power coil for energy-efficient relay operation. Reinforced insulation between contacts enhances safety. Compliant with EN 50205 and suitable for railway applications.
Explore the comprehensive range of Force Guided Relays available at EnvMart to meet diverse industrial and automation needs. Elesta products offer trusted quality backed by industry compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of the Elesta SIS 422 relay is 12V DC.
This model has dimensions of 48mm in length, 16.5mm in height, and 16.6mm in depth.
The relay has a mean coil power consumption of 0.66W and a holding power of 0.20W.
It uses solder-type terminals for secure electrical connections.
The relay can operate within a temperature range of -40°C to 70°C.
It complies with EN 50205 type A standards and features reinforced double insulation for safety.
The contact material is gold plated, which enhances conductivity and durability.
It is suitable for industrial automation and railway systems conforming to EN 50155 standards.
The coil resistance of the Elesta SIS 422 relay is 215 ohms.
The relay features forcibly guided contacts that provide protective separation between control and load circuits.
This model belongs to the SIS 6 series of relays.
The relay is designed for PCB mounting applications.
