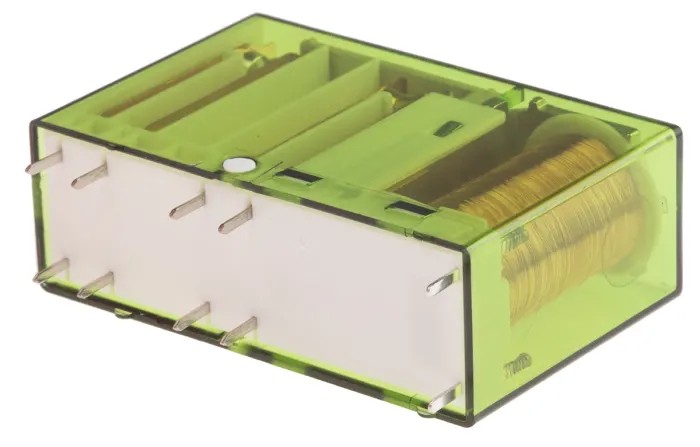

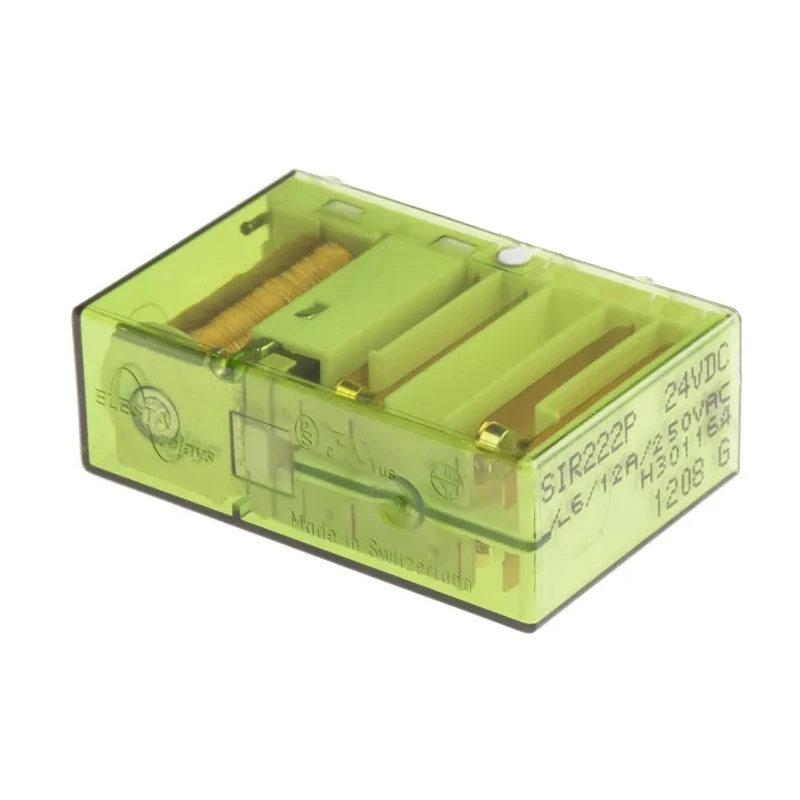

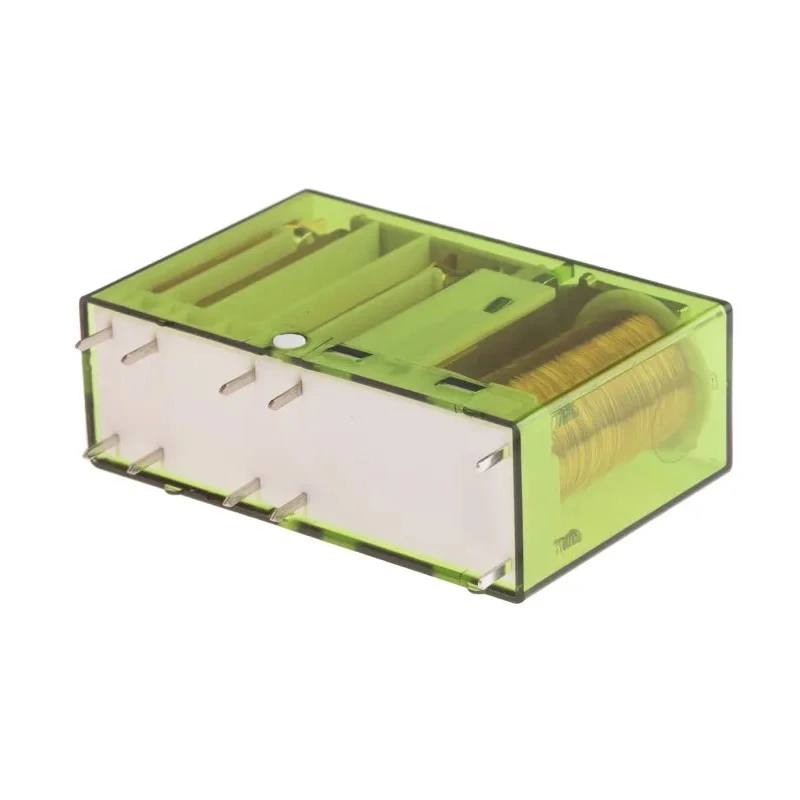

Elesta PCB Force Guided Relay 2-Pole DPDT, 24V DC Coil Voltage, Gold Plated Contacts SIR 222P 24VDC

Elesta SIR 222P 24VDC PCB Force Guided Relay is a premium quality relay designed for reliable switching in industrial control, automation, and electrical applications. It features a 24V DC coil voltage suitable for PCB mounting with solder terminals to ensure firm connections.

This relay includes two poles with a double-pole double-throw (DPDT) contact configuration, allowing versatile circuit control. The coil resistance stands at 760 ohms with a mean coil power of 0.75 watts, enabling energy-efficient operation. The relay is designed to operate reliably within a temperature range from -40°C to 70°C, suitable for demanding environments.

The device's physical dimensions are compact with a length of 46.4 mm, height of 30.7 mm, and depth of 16 mm, facilitating integration in dense control panels. Gold plated contacts ensure low contact resistance and long service life, enhancing electrical performance and durability under continuous use.

Compliant with EN 50205 type A, the relay offers forced guided contacts that provide protective separation between coil/control contacts and output contacts, improving safety and reducing the risk of contact welding or failure. Typical applications include industrial automation systems, safety-related control circuits, and other situations requiring reliable contact guidance and electrical isolation.

Elesta Force Guided Relays are well-suited for industrial, automation, HVAC, manufacturing, and electrical distribution applications, providing dependable switching performance and safety features.

Designed for PCB mounting with solder terminals for secure installation. Features double-pole double-throw (DPDT) contact configuration. Coil resistance of 760 ohms and coil power consumption of 0.75 watts. Operates reliably between -40°C and 70°C ambient temperatures.

Compact dimensions: 46.4 mm length, 30.7 mm height, and 16 mm depth. Constructed with gold plated contacts for enhanced conductivity and durability. Complies with EN 50205 type A standard for forced guided contacts. Provides protective separation between coil/control contacts and output contacts for safety.
