KYOCERA AVX 680 nF MnO2 Solid Electrolyte Tantalum Capacitor 35V DC Through Hole
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 35V dc |
| Diameter | 4.5mm |
| Brand | KYOCERA AVX |
| Height | 8.5mm |
| Length | 8.5mm |
| Model | MnO2 |
| Technology | MnO2 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | Tap |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±20 % |
| Capacitance | 680nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Dissipation Factor | 4% |
| Leakage Current | 0.5μA |
| Electrolyte Type | Solid |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Lead Pitch | 5mm |
| Lead Diameter | 0.5mm |
| Equivalent Series Resistance ESR | 10Ω |
| Lead Style | Outside Bend |
Key Features
- Capacitance rated at 680 nanofarads with ±20% tolerance.
- Equivalent Series Resistance (ESR) of 10 ohms provides stable electrical performance.
- Lead pitch of 5 mm and lead diameter of 0.5 mm optimized for through-hole mounting.
- Operating temperature range from -55°C to 125°C ensures reliability in harsh environments.
- Features solid MnO2 electrolyte with low leakage current of 0.5 µA.
- Dissipation factor of 4% enhances capacitor efficiency and stability.
- Radial resin dipped TAP series with flame retardant coating for added safety.
- RoHS compliant with solder terminal and outside bend lead style.
Product Description
KYOCERA AVX TAP684M035CCS is a high-quality 680 nF MnO2 solid electrolyte tantalum capacitor designed for through-hole mounting. It operates at a voltage rating of 35V DC and belongs to the TAP series known for its reliability and temperature stability.
This capacitor features a resin dipped radial design with a flame retardant coating, making it suitable for various industrial and commercial electronic applications including power supply circuits, signal processing, and filtering tasks.
Its electrical characteristics include a ±20% capacitance tolerance and an Equivalent Series Resistance (ESR) of 10Ω, ensuring stable performance. The low leakage current of 0.5 µA and dissipation factor of 4% highlight its efficiency in energy handling.

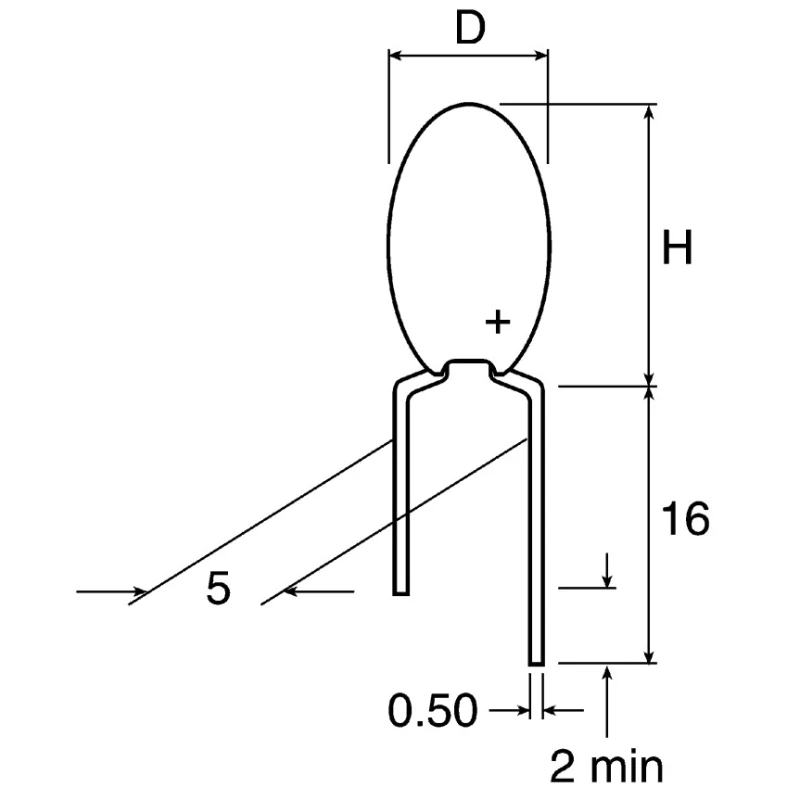

The component has a lead pitch of 5mm and lead diameter of 0.5mm, with solder terminals and an outside bend lead style for secure PCB mounting. The operating temperature range from -55°C up to 125°C makes it reliable under demanding thermal conditions.
Dimensional specifics include an 8.5 mm length and height, and a diameter of 4.5 mm, optimizing it for compact board layouts.
This RoHS-compliant tantalum capacitor is ideal for industrial electronics manufacturing, automotive electronics (non-automotive standard), and laboratory equipment requiring precision passive components.
Capacitance rated at 680 nanofarads with ±20% tolerance. Voltage rating of 35 volts DC suitable for various electronic applications. Equivalent Series Resistance (ESR) of 10 ohms provides stable electrical performance. Lead pitch of 5 mm and lead diameter of 0.5 mm optimized for through-hole mounting.
Operating temperature range from -55°C to 125°C ensures reliability in harsh environments. Features solid MnO2 electrolyte with low leakage current of 0.5 µA. Dissipation factor of 4% enhances capacitor efficiency and stability.
Radial resin dipped TAP series with flame retardant coating for added safety. RoHS compliant with solder terminal and outside bend lead style. Compact dimensions with length and height of 8.5 mm and diameter of 4.5 mm. Explore the electronics components catalog at EnvMart to find compatible passive components and complementary products for your electronic design and manufacturing needs.
Explore more products in our Tantalum Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance rated at 680 nanofarads with a tolerance of ±20%.
It operates at a voltage rating of 35V DC, making it suitable for various electronic applications.
The Equivalent Series Resistance (ESR) is 10 ohms, which ensures stable electrical performance.
It has an operating temperature range from -55°C to 125°C, ensuring reliability in harsh environments.
The capacitor has a length and height of 8.5 mm and a diameter of 4.5 mm, optimizing it for compact board layouts.
It features a lead pitch of 5 mm and a lead diameter of 0.5 mm, optimized for through-hole mounting.
It features a solid MnO2 electrolyte, which contributes to its low leakage current of 0.5 µA.
The dissipation factor is 4%, which enhances the capacitor's efficiency and stability.
Yes, it is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
The terminal type is solder, designed for secure PCB mounting with an outside bend lead style.
It is suitable for various industrial and commercial electronic applications, including power supply circuits and signal processing.
The country of origin for this capacitor is India.
