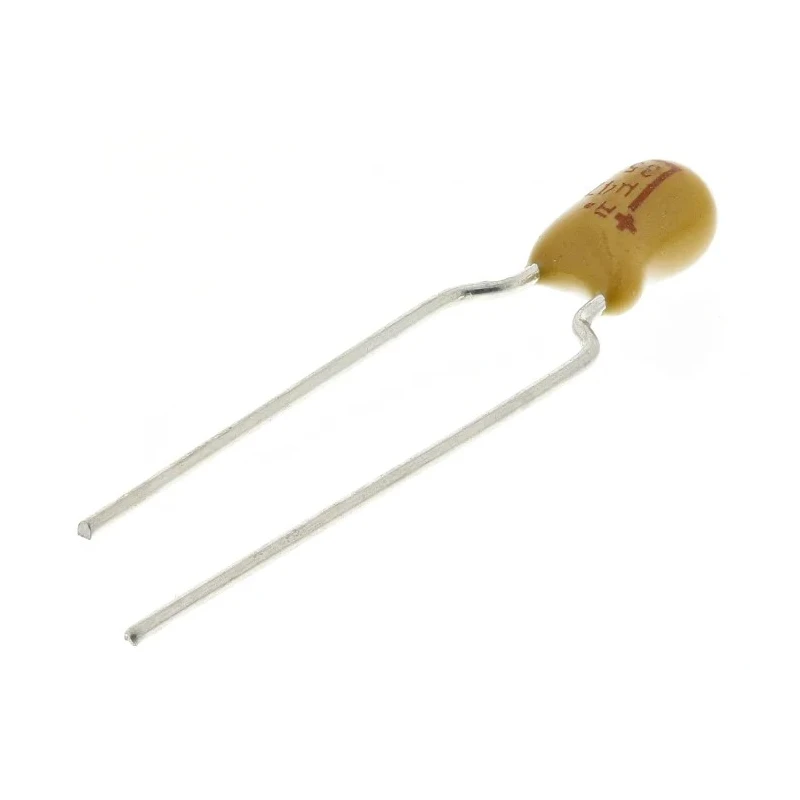

KYOCERA AVX 470 nF MnO2 Tantalum Capacitor 35V DC Through Hole

KYOCERA AVX TAP474M035CCS is a manganese dioxide (MnO2) solid tantalum capacitor designed for through-hole mounting. It offers a capacitance of 470 nF and a rated voltage of 35V DC, making it ideal for various electronic circuits requiring stable capacitance and low leakage currents.

The TAP series capacitors are resin-dipped with flame retardant coating to enhance durability and safety in demanding industrial and electronic manufacturing environments. The capacitor supports a temperature range from -55°C up to a maximum of 125°C, ensuring reliable performance under thermal stress.

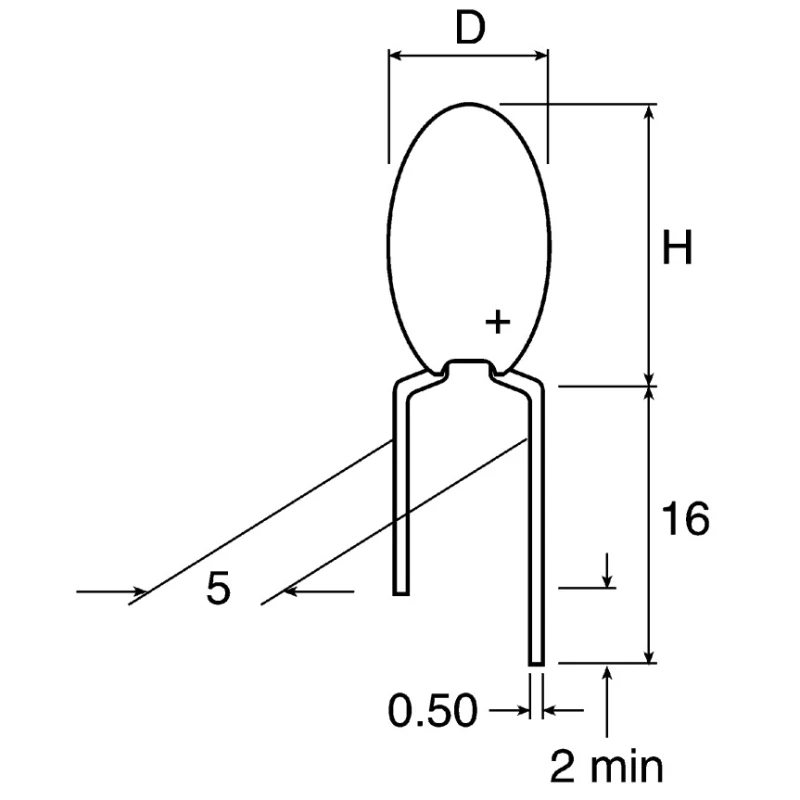

With a lead pitch of 5 mm and pin diameter of 0.5 mm, this component is compatible with standard through-hole PCB designs. The equivalent series resistance of 13 Ω and dissipation factor of 4% contribute to efficient circuit operation with minimal losses.

The capacitor features an outside bend lead style, solder terminal type, and solid electrolyte construction, resulting in superior temperature stability and low impedance. Leakage current is limited to 0.5 μA, offering high reliability in precision applications.

Applications for this capacitor include power supplies, automotive electronics, communication devices, and general purpose industrial electronics. The bulk packaging supports efficient manufacturing processes with ready-to-insert quantities.

This tantalum capacitor has a capacitance of 470 nF. Rated voltage is 35 volts DC, suitable for low voltage circuits. Constructed with manganese dioxide (MnO2) technology for enhanced stability. Features a through-hole mount type with 5 mm lead pitch.

Includes an equivalent series resistance (ESR) of 13 ohms. Capacitor has a tolerance of ±20% and operates from -55°C to 125°C. Compact dimensions of 8.5 mm height and length with 4.5 mm diameter. Solid electrolyte type with low leakage current of 0.5 μA.

Flame retardant resin dipped coating provides safety during operation. RoHS compliant, free from hazardous substances. Explore the range of KYOCERA AVX Tantalum Capacitors in the Electronics Components category at EnvMart for precision and durability in your projects.
