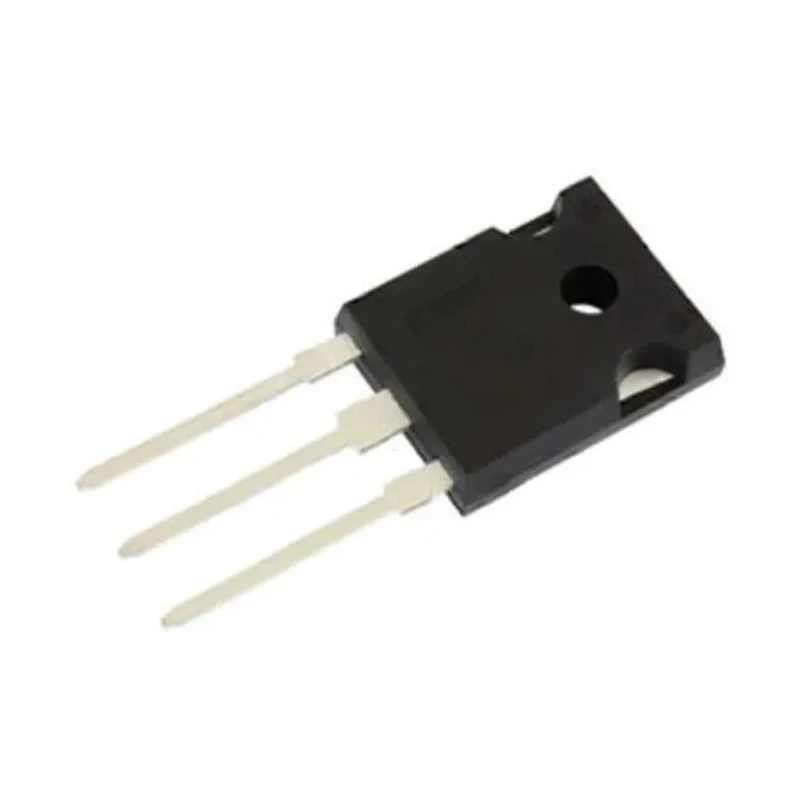

Vishay 650 V 16 A Power SiC Merged PIN Schottky Diode Through Hole TO-247AD 3L VS-C16CP07L-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-C16CP07L-M3 |
| Mount Type | Through Hole |
| Series | VSX |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD 3L |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 16A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Utilizes SiC wide band gap material for improved performance.
- Majority carrier diode with Schottky technology ensures low forward voltage.
- High maximum operating junction temperature of 175°C.
- Positive forward voltage temperature coefficient for easy paralleling.
- Virtually no recovery tail and no switching losses enable high efficiency.
- Robust MPS structure for high ruggedness against surge currents.
- Designed for power electronic applications requiring fast switching.
- Operating temperature range from -55°C to 175°C.
Product Description
Vishay VS-C16CP07L-M3 is a high-performance power SiC merged PIN Schottky diode designed for use in power electronic circuits. It provides a maximum continuous forward current of 16 A and a peak reverse repetitive voltage rating of 650 V, housed in a TO-247AD 3L through-hole package for easy mounting.
This diode leverages Silicon Carbide (SiC) wide band gap material combined with Schottky technology to deliver a majority carrier diode with very low forward voltage drop (maximum 1.8 V), enhancing circuit efficiency and thermal management.
It features a positive forward voltage temperature coefficient which simplifies paralleling of devices in high current applications. Additionally, the diode exhibits virtually no recovery tail and almost no switching losses, making it suitable for high-speed switching environments.
The device operates reliably within a wide temperature range from -55°C to a maximum of 175°C junction temperature, ensuring durability in demanding industrial or automotive environments where high ruggedness is required against forward current surges.
Typical applications include power supply rectifiers, motor drive inverters, solar inverters, UPS, and other power conversion systems that benefit from reduced switching losses and improved thermal performance.
Utilizes advanced SiC Schottky technology for low forward voltage. TO-247AD 3L package ensures good thermal dissipation and easy PCB mounting. Supports a wide operating temperature range from -55°C to 175°C. Designed for high ruggedness against forward current surges.
Minimal switching losses for efficiency in high-frequency operation. Positive VF temperature coefficient simplifies device paralleling. Three-pin through hole mount for ease of integration. Complies with industry standards but has no specific certifications listed.
Explore more Vishay power and discrete semiconductors on EnvMart for your industrial, automotive, and power electronics needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 16 A.
The diode operates reliably within a temperature range from -55°C to 175°C.
The maximum forward voltage drop for this diode is 1.8 V.
This model is housed in a TO-247AD 3L package, suitable for through-hole mounting.
The diode has a pin count of 3.
It is a Schottky type rectifier, utilizing advanced SiC technology.
The positive forward voltage temperature coefficient simplifies the paralleling of devices in high current applications.
The diode features virtually no recovery tail and minimal switching losses, enhancing its efficiency in high-speed applications.
The country of origin for this diode is India.
The diode configuration is a 2x common cathode pair.
