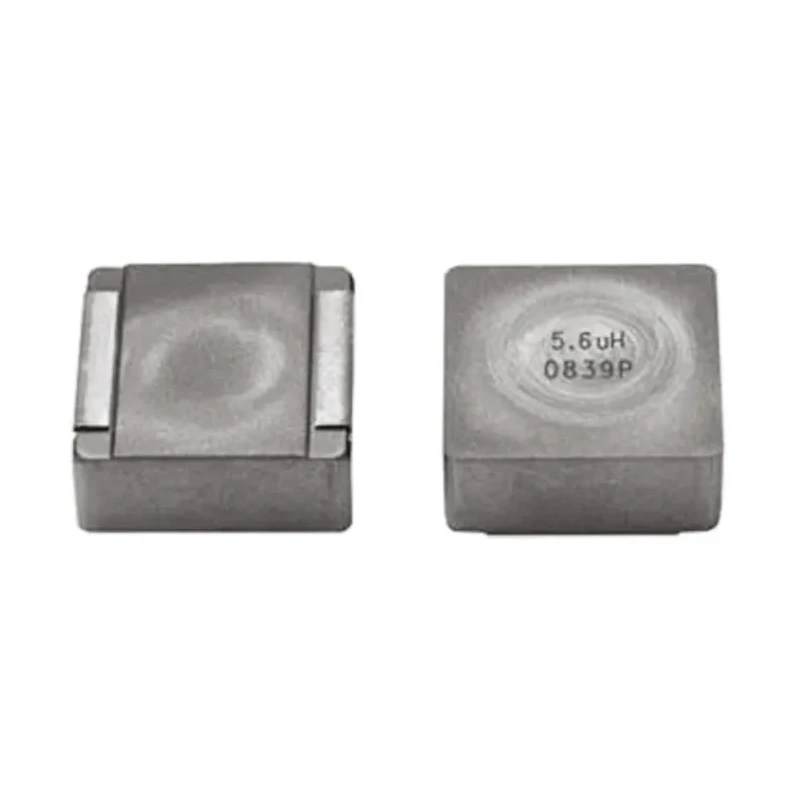

Vishay 6767 Shielded Surface Mount Inductor Metal Composite Core 22μH ±20% 12A IHLP6767GZER220M11
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 7mm |
| Length | 17.15mm |
| Model | IHLP6767GZER220M11 |
| Depth | 17.15mm |
| Packaging | Reel |
| Series | IHLP-6767GZ-11 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 6767 |
| Maximum DC Current | 12A |
| Maximum DC Resistance | 21mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4.3MHz |
| Inductor Construction | Shielded |
Key Features
- This inductor has a shielded wire wound construction to minimize electromagnetic interference.
- Its inductance tolerance is ±20%, suitable for high current applications.
- The package case size is 6767 with surface mount termination style.
- Operating temperature range is from -55°C to 125°C for robust industrial use.
- The inductor provides a very low maximum DC resistance of 21mΩ for high efficiency.
- It features a metal composite core ensuring improved performance and durability.
- This component is RoHS compliant and ideal for DC/DC converters and power supplies.
- The product handles transient current spikes without saturation and has ultra low buzz noise.
Product Description
Vishay IHLP6767GZER220M11 is a high current 6767 shielded surface mount inductor featuring a metal composite core with an inductance of 22μH ±20% and a maximum DC current rating of 12A. This surface mount inductive component is designed for compact electronic circuit applications where space constraints and performance stability are critical.
The IHLP6767GZ-11 series inductors are magnetically shielded wire wound chokes that handle transient current spikes effectively without saturation. Built to reduce electromagnetic interference, the shielded construction also delivers ultra-low buzz noise, making them ideal for noise-sensitive applications.
Operating over a wide temperature range from -55°C to 125°C, these inductors maintain consistent performance in harsh industrial environments. The 6767 packaging offers a length and depth of approximately 17.15mm, with a height of 7mm, optimized for surface mount technology on PCBs.
With a maximum DC resistance of only 21mΩ, the inductor ensures efficient current flow, contributing to minimal power loss. The metal composite core enhances load handling capability and thermal stability, making this inductor suitable for high current POL converters, low profile power supplies, battery-powered devices, and DC/DC converters used in computing and communication systems.
The component is RoHS compliant, moulded, and designed with a surface mount termination style for ease of assembly. Its high self-resonant frequency of 4.3MHz enables a broad frequency range operation, including up to 750kHz typical switching frequencies in power electronics.
This product is widely used in industrial, computing, telecommunications, and power management applications. Set includes a reel package containing multiple inductors ready for mass production use. Explore the Vishay product line and other Surface Mount Inductors at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 22μH with a tolerance of ±20%.
This model has a maximum DC current rating of 12A.
The 6767 package case has a length and depth of approximately 17.15mm and a height of 7mm.
The maximum DC resistance of this inductor is 21mΩ.
The operating temperature range is from -55°C to 125°C.
It features a metal composite core, which enhances performance and thermal stability.
Yes, this component is RoHS compliant.
The maximum self-resonant frequency is 4.3MHz.
This inductor uses a surface mount termination style.
It is suitable for high current applications, including DC/DC converters and power supplies.
The inductor has a shielded wire wound construction to minimize electromagnetic interference.
The inductor is packaged in a reel for ease of assembly and mass production use.
