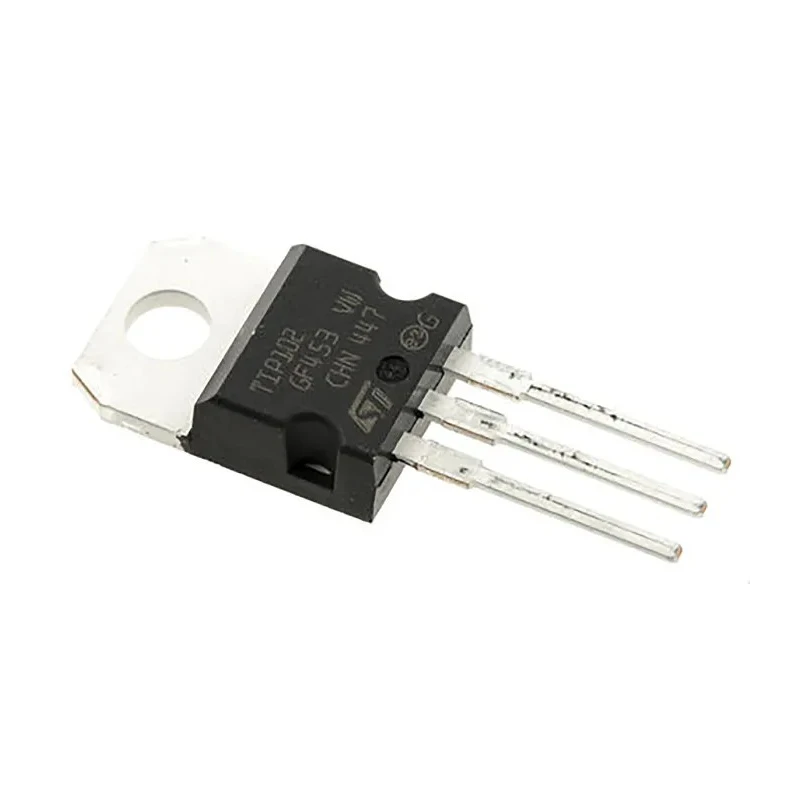

STMicroelectronics NPN Darlington Transistor, 8 A, 100 V, HFE 200, TO-220 Package TIP102
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | TIP102 |
| Mount Type | Through Hole |
| Series | TIP102 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 8A |
| Maximum Collector Emitter Voltage Vceo | 100V |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain hFE | 200 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2V |
| Maximum Collector Base Voltage VCBO | 100V |
| Maximum Collector Cut-off Current | 0.05mA |
| Maximum Power Dissipation Pd | 80W |
| onsemi 1 Darlington Transistor NPN, 8 A 100 V HFE | 200, 3-Pin TO-220Brand: onsemi |
| STMicroelectronics 1 Darlington Transistor NPN, 8 A 100 V HFE | 200, 3-Pin TO-220 |
Key Features
- Maximum continuous collector current of 8 amperes for high power applications.
- Collector-emitter voltage rating up to 100 volts ensuring robustness.
- Guaranteed minimum DC current gain (hFE) of 200 for efficient amplification.
- Power dissipation up to 80 watts supports thermal reliability.
- Through hole mount type with 3-pin TO-220 package for easy PCB integration.
- Operates over a wide temperature range from -65°C to 150°C.
- Low collector-emitter saturation voltage of 2 volts for reduced power loss.
- Single element per chip ensuring predictable performance.
Product Description
STMicroelectronics TIP102 is an NPN Darlington transistor designed for use in high current and voltage switching applications. Featuring an 8 amp maximum continuous collector current and collector-emitter voltage rating of 100 volts, this device is ideal for power amplification and control in various industries.
The transistor is housed in a 3-pin TO-220 package, facilitating through-hole mounting on printed circuit boards. With a minimum DC current gain (hFE) of 200, it achieves efficient amplification while dissipating up to 80 watts of power safely.
Designed to operate reliably within a temperature range from -65°C to 150°C, the TIP102 transistor offers robust performance for industrial, commercial, and automotive electronics. Its low maximum collector-emitter saturation voltage of 2 volts helps reduce losses and improve energy efficiency.
This component contains a single transistor element per chip and is configured with NPN polarity, suitable for a wide range of applications such as motor control, voltage regulation, and relay driving.
Maximum continuous collector current of 8 amperes for high power applications. Collector-emitter voltage rating up to 100 volts ensuring robustness. Guaranteed minimum DC current gain (hFE) of 200 for efficient amplification.
Power dissipation up to 80 watts supports thermal reliability. Through hole mount type with 3-pin TO-220 package for easy PCB integration. Operates over a wide temperature range from -65°C to 150°C. Low collector-emitter saturation voltage of 2 volts for reduced power loss.
Single element per chip ensuring predictable performance. NPN polarity suitable for typical Darlington transistor circuits. Manufactured in China to international quality standards.
This transistor is widely used across electronics and electrical engineering sectors including industrial automation, power supply circuits, and embedded system controls. Its reliable design and high ratings make the TIP102 a versatile choice for engineers and technicians.
Explore more STMicroelectronics components and Darlington Transistors in the EnvMart catalog for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TIP102 transistor has a maximum continuous collector current of 8 amperes, making it suitable for high power applications.
It has a collector-emitter voltage rating of up to 100 volts, ensuring robustness in various applications.
The guaranteed minimum DC current gain (hFE) for this transistor is 200, which allows for efficient amplification.
This model can dissipate up to 80 watts of power, supporting thermal reliability during operation.
The TIP102 is housed in a 3-pin TO-220 package and is designed for through-hole mounting on printed circuit boards.
It operates reliably within a wide temperature range from -65°C to 150°C.
The maximum collector-emitter saturation voltage for the TIP102 is 2 volts, which helps reduce power loss.
This transistor contains a single element per chip, ensuring predictable performance.
The maximum emitter-base voltage (VEBO) for this model is 5 volts.
The TIP102 is suitable for various applications including motor control, voltage regulation, and relay driving.
The TIP102 has a height of 9.15 mm and a length of 10.4 mm.
The TIP102 is manufactured in China to international quality standards.
