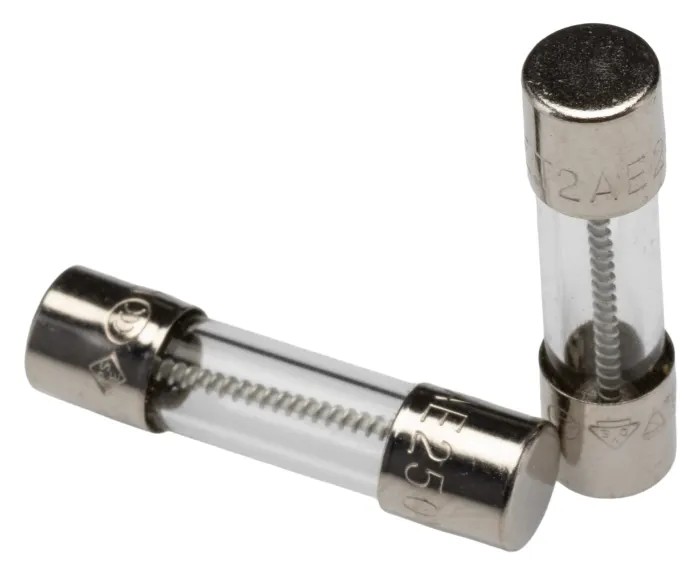

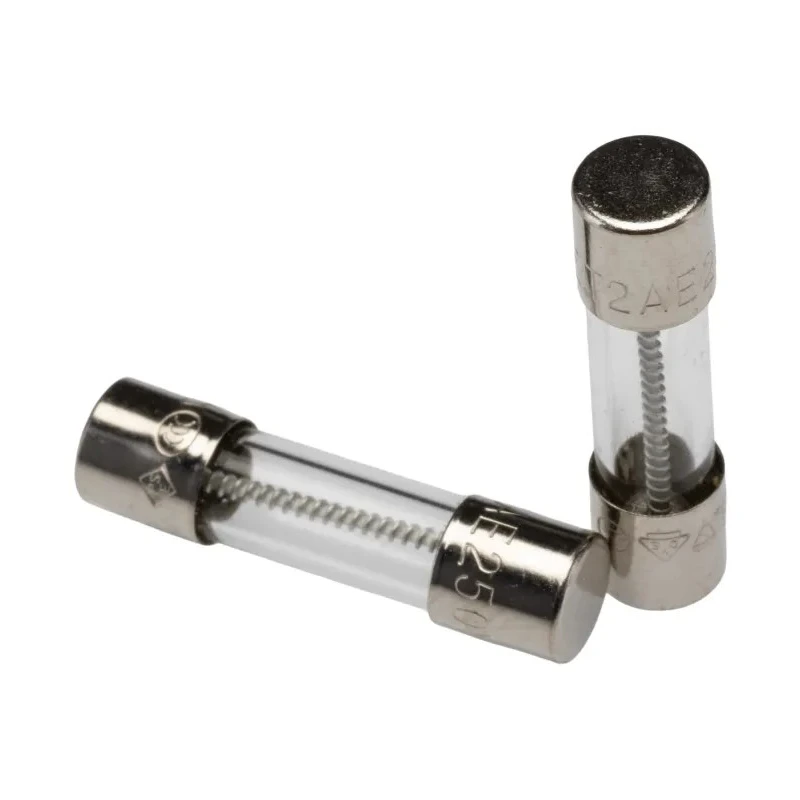

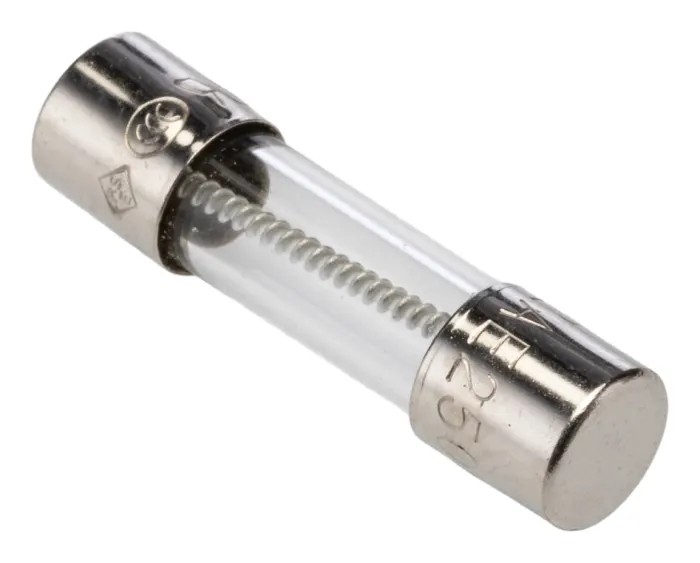

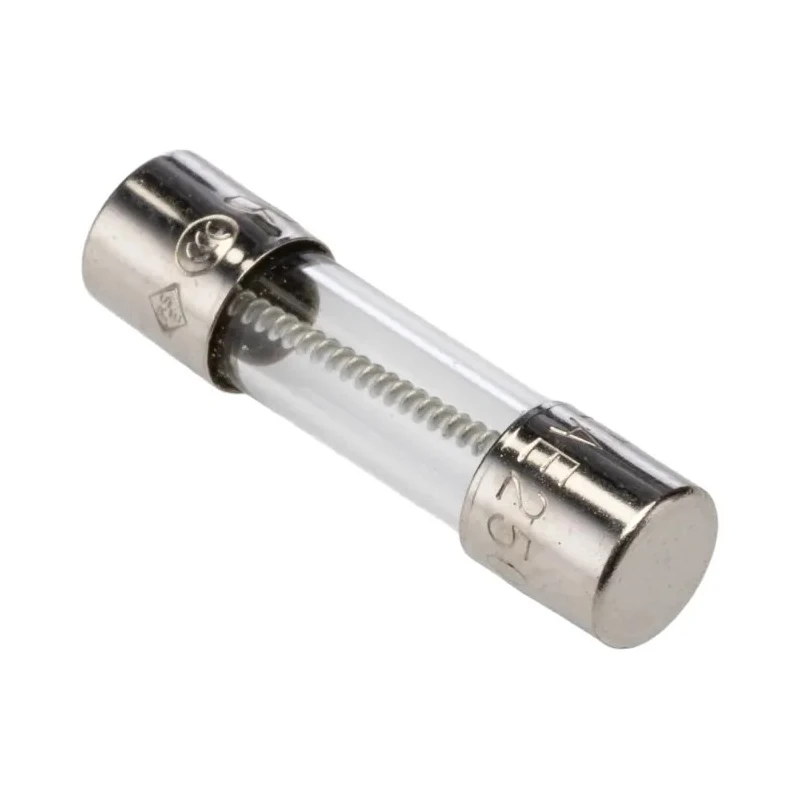

Littelfuse 2A T Glass Cartridge Fuse 5 x 20 mm 250V AC Time Delay 0219002.MXAP

Littelfuse 0219002.MXAP Glass Cartridge Fuse 2A 5 x 20 mm 250V AC is a time delay fuse designed to protect electrical circuits by preventing damage caused by short circuits and overcurrent. The glass body not only provides a robust construction but also allows visual inspection of the fuse element, enabling easy determination if the fuse has blown.

This fuse measures 20 mm in overall length with a diameter of 5 mm, conforming to the standard 5 x 20 mm cartridge fuse size, making it compatible with typical fuse holders in industrial and commercial panel boards.

The T speed rating indicates a slow acting fuse characteristic, which is capable of tolerating brief current surges without blowing immediately, making it ideal for applications where transient currents occur, such as motor starting and air conditioning units.

Its operational temperature range is from -55°C to +125°C, allowing stable performance in various environments. The low breaking capacity rating is suitable for protection circuits where the fault current is limited.

This fuse finds applications across industrial, commercial, automotive, and residential settings, protecting appliances like motors, refrigerators, pumps, and air conditioners from electrical faults.

Durable glass cartridge body offers clear blow indication. Standard 5 x 20 mm size ensures wide holder compatibility. Time delay (T speed) provides anti-surge protection. Rated for 2 amperes and 250 volts AC operation. Wide operating temperature range from -55°C to +125°C.

Low breaking capacity suited for circuits with limited fault currents. Conforms to CE, CCC, PSE, CSA, UL, SEMKO, and VDE safety standards. Choosing a glass fuse like the Littelfuse 0219002.MXAP supports enhanced electrical safety management and protection in essential industrial and domestic electrical systems.
