| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 900μm |
| Length | 2mm |
| Model | DMP2900UW-7 |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | DMP2900 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101, AEC-Q100, AEC-Q200 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 600mA |
| Maximum Drain Source Voltage Vds | 20V |
| Maximum Drain Source Resistance Rds | 750mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 0.3W |
| Typical Gate Charge Qg @ Vgs | 0.7nC |
| Maximum Gate Source Voltage Vgs | 6V |
| Forward Voltage Vf | -1.2V |

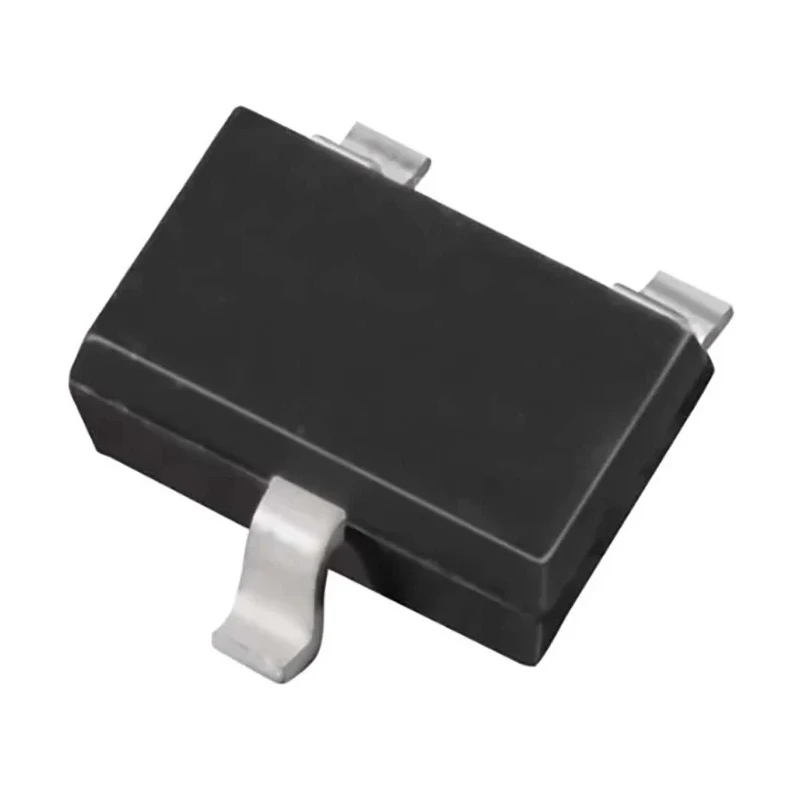

DiodesZetex DMP2900UW-7 is a P-Channel enhancement mode MOSFET engineered to provide efficient switching performance with minimized on-state resistance, ideal for high-efficiency power management systems.
The device supports a maximum continuous drain current of 600 mA and a maximum drain-source voltage of 20 V. Its surface mount SOT-323 package with three pins allows for compact circuit board designs. The MOSFET achieves a low maximum drain-source resistance of 750 mΩ, reducing conduction losses during operation.
Operating within a gate-source voltage of 6 V and a power dissipation limit of 0.3 W, it ensures reliability under various thermal conditions. The component is qualified for a wide temperature range from -55°C up to 150°C, supporting demanding industrial and automotive environments.
The device features low typical gate charge of 0.7 nC, enabling fast switching and improved efficiency. Automotive standards compliance (AEC-Q101, AEC-Q100, AEC-Q200) make it highly suitable for automotive electronics applications requiring high reliability.
Its small form factor with dimensions of 2 mm length, 1.8 mm width, and 900 μm height supports space-constrained designs. Manufactured in China with strict quality controls. This MOSFET is ideal for industrial, electronic, automotive, and power management applications requiring durable and efficient semiconductor solutions.
Explore more components in our MOSFET category on EnvMart for additional semiconductor solutions and power management devices.
