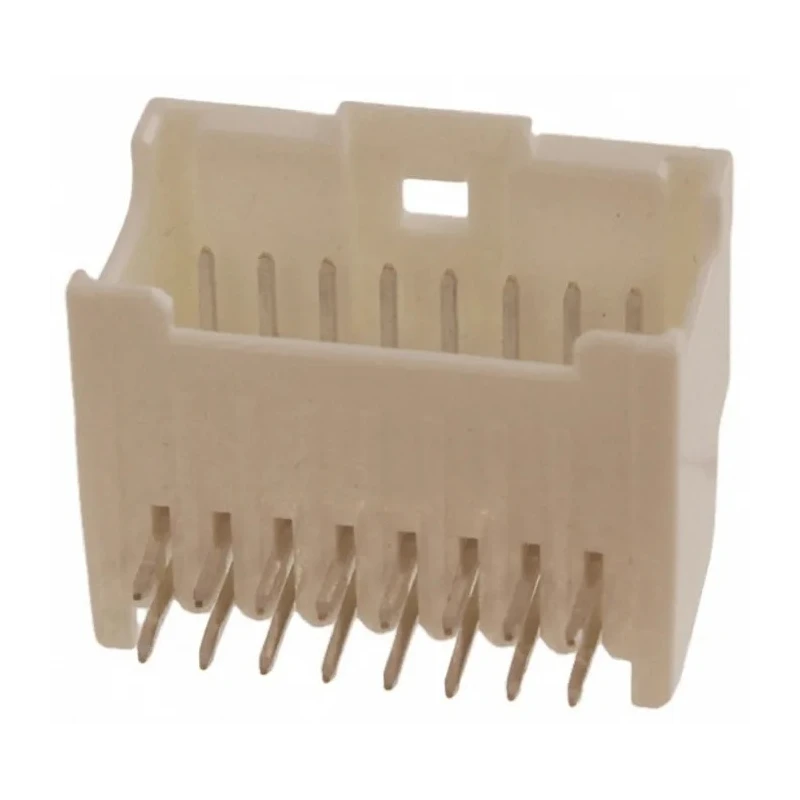

Molex MicroClasp Series Right Angle Through Hole 10 Contact 2 mm Pitch 2 Row Shrouded PCB Header 55959-1030

Molex 55959-1030 MicroClasp Series Right Angle Through Hole PCB Header is a high-quality electronic connector designed for reliable wire-to-board connections with 10 contacts arranged in 2 rows at 2 mm pitch.

This PCB header features a shrouded housing made from polyester, making it robust and durable. Its brass contacts are plated with tin to assure secure electrical connections and corrosion resistance. The right angle orientation facilitates space-saving PCB layouts and convenient connectivity.

The MicroClasp range incorporates an inner positive lock mechanism that provides latch protection and ensures secure mating with an audible click, reducing the risk of disconnections during device operation. The terminal design offers low insertion and withdrawal forces while supporting a current of up to 3 A in a compact footprint.

Operating reliably between -40°C and 105°C, this header is suitable for demanding industrial, electronic manufacturing, and embedded system applications. It supports solder termination through hole mounting to PCBs, featuring male contact gender with tail pin length of 3.2 mm and mating pin length of 2 mm.

Voltage rating of 250 V allows use in a wide variety of Electronic Components and assemblies requiring robust, dependable connections. The housing lance system enhances PCB space savings and ensures easy unmating for maintenance and replacement.

Provides space saving and easy mating/unmating with a unique inner positive lock. Supports 3.0 A current in a compact 2.00 mm pitch configuration. Features a low insertion and withdrawal force terminal design. Constructed with brass contacts plated with tin for reliable connectivity.

Mounts through hole on PCBs with right angle orientation for wire-to-board connection. Operates reliably from -40°C to 105°C temperature range. Includes a housing made of durable polyester material. Designed with a latch protection system for secure retention and audible click confirmation.

Male contact gender with tail pin length of 3.2 mm and mating pin length of 2 mm. Voltage rating up to 250 V suitable for various electronic applications.

This product is ideal for industrial, electronics manufacturing, automation, and embedded electronic device applications requiring secure and durable PCB connectors. EnvMart offers comprehensive catalog search options for related PCB headers and connectors for optimized system design.
