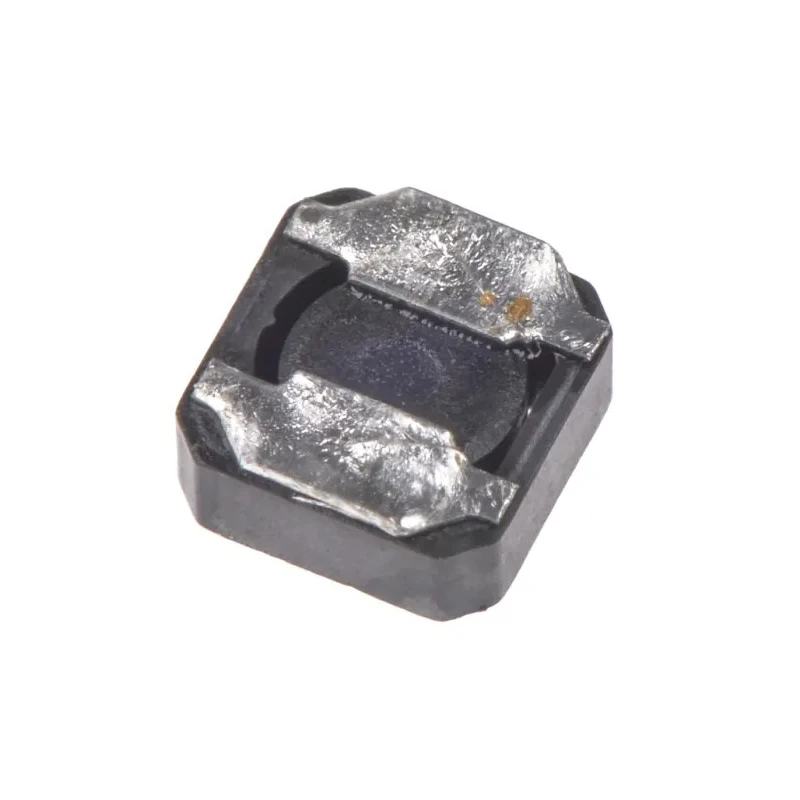

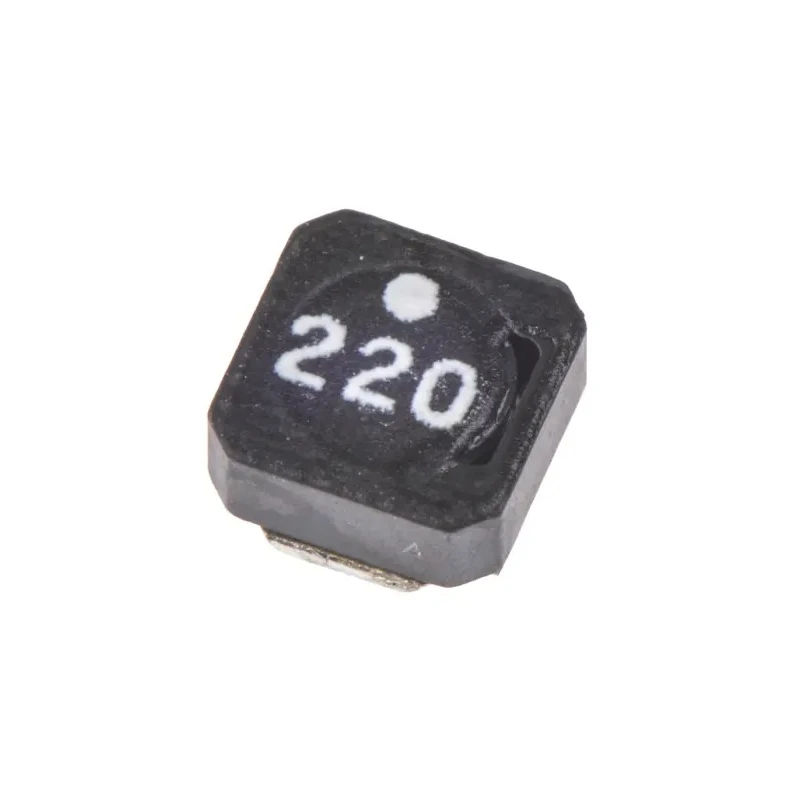

TDK Shielded Wirewound Surface Mount Inductor 22 μH ±20/±30 % 800 mA Idc 4020 Case VLCF4020T-220MR56
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 4.3mm |
| Model | VLCF4020T-220MR56 |
| Depth | 4mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS Directive |
| Package/Case | 4020 |
| Maximum DC Current | 800mA |
| Maximum DC Resistance | 431mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- This inductor utilizes a ferrite core enhancing magnetic shielding performance.
- Packaged in a compact 4020 surface mount case measuring 4.3 mm length, 2 mm height, and 4 mm depth.
- Wirewound construction ensures stable inductance and low DC resistance of 431 mΩ.
- Designed to operate reliably between -40°C and 105°C ambient temperatures.
- RoHS compliant and fitted with tape and reel packaging for efficient assembly.
Product Description
TDK VLCF4020T-220MR56 is a shielded wirewound surface mount inductor featuring a ferrite core, engineered to provide 22 μH inductance with tolerances of ±20/±30 % and a maximum DC current rating of 800 mA.
This component is packaged in a 4020 tape and reel case, measuring 4.3 mm in length, 2 mm in height, and 4 mm in depth, suitable for compact PCB designs requiring surface mount technology.
The wirewound design offers magnetic shielding to minimize electromagnetic interference in sensitive electronic circuits. It has a maximum DC resistance of 431 mΩ, supporting efficient current flow with minimal power loss.
Operating within a temperature range from -40°C up to 105°C, this inductor is suitable for various industrial, consumer electronics, and automotive applications, although it is not qualified to automotive standards.
The inductor complies with the RoHS directive, ensuring it meets environmental regulations for hazardous substances. This inductor utilizes a ferrite core enhancing magnetic shielding performance. Packaged in a compact 4020 surface mount case measuring 4.3 mm length, 2 mm height, and 4 mm depth.
Wirewound construction ensures stable inductance and low DC resistance of 431 mΩ. Designed to operate reliably between -40°C and 105°C ambient temperatures. RoHS compliant and fitted with tape and reel packaging for efficient assembly.
This product is ideal for use in electronic circuits requiring inductors that provide low noise, stable inductance, and effective shielding, such as DC to DC converters and power management modules.
Explore the Electronics Components category on EnvMart to discover more inductors and surface mount passive components from leading manufacturers like TDK.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 22 μH with tolerances of ±20/±30 %.
The maximum DC current rating for this inductor is 800 mA.
The dimensions of the case are 4.3 mm in length, 2 mm in height, and 4 mm in depth.
The maximum DC resistance is 431 mΩ, which supports efficient current flow.
It is designed to operate reliably between -40°C and 105°C ambient temperatures.
The inductor utilizes a ferrite core that enhances magnetic shielding performance.
It is packaged in tape and reel format, which facilitates efficient assembly.
The termination style of this inductor is surface mount, suitable for compact PCB designs.
Yes, it complies with the RoHS directive, ensuring it meets environmental regulations for hazardous substances.
It is suitable for various applications in industrial, consumer electronics, and power management modules, but is not qualified for automotive standards.
This inductor belongs to the VLCF series by TDK.
The inductor features a wirewound construction, which ensures stable inductance and low DC resistance.
