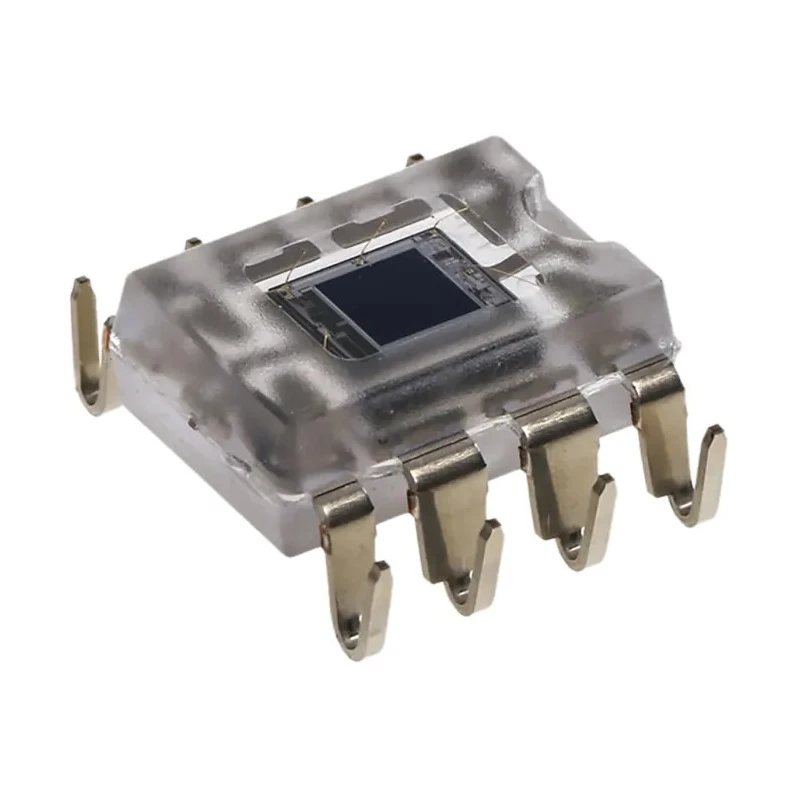

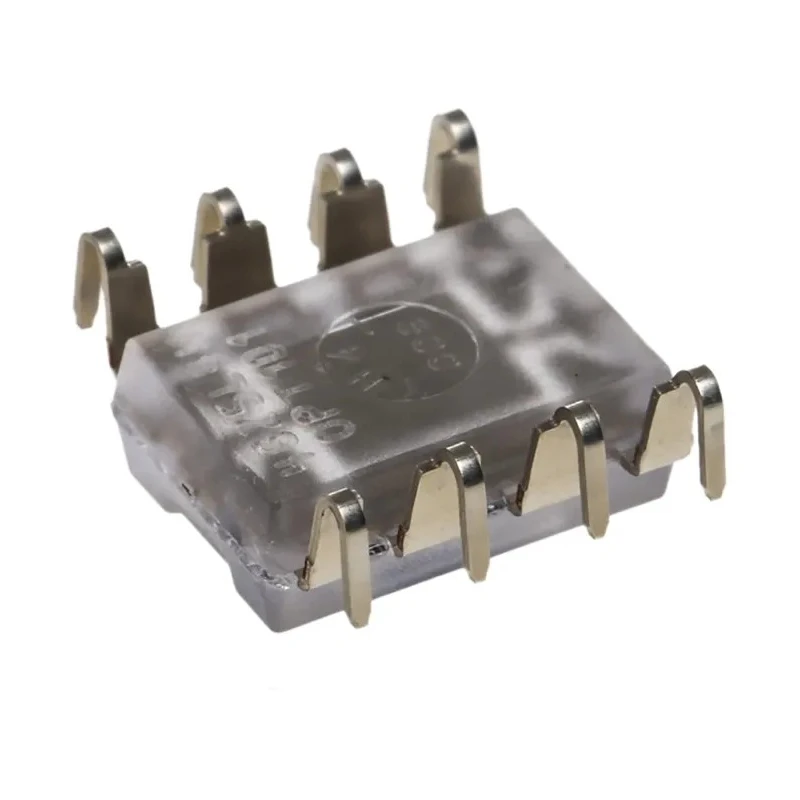

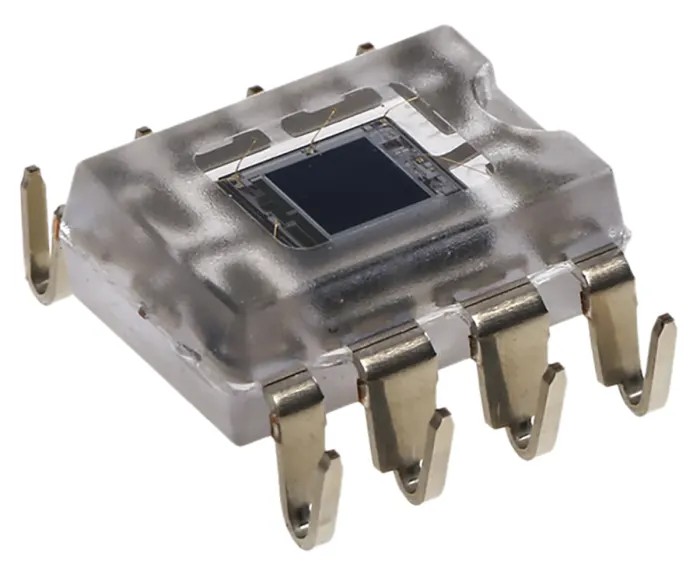

Texas Instruments Infrared Ultraviolet Photodetector Amplifier Unit Surface Mount OPT101P-J
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.24mm |
| Length | 9.52mm |
| Model | OPT101P-J |
| Packaging | Tube |
| Width | 6.52mm |
| Mount Type | Surface |
| Series | OPT101 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | REACH, RoHS |
| Number of Pins | 8 |
| Output Signal Type | Voltage |
| Wavelength of Peak Sensitivity | 650nm |
| Spectrums Detected | Infrared, Ultraviolet |
| Peak Photo Sensitivity | 0.47A/W |
Key Features
- Photodetector with integral amplification ensures stable and accurate readings.
- Surface mount packaging facilitates easy installation on PCBs.
- Designed to operate in temperature range from 0°C to 70°C for varied applications.
- Peak photo sensitivity of 0.47 A/W enables effective detection of low light intensities.
- Compact dimensions with length 9.52 mm, width 6.52 mm, height 3.24 mm.
- Tube packaging aids protection and handling during assembly and transport.
- Equipped with 8 pins for secure electrical connection.
- Compliant with REACH and RoHS standards ensuring environmental safety.
Product Description
Texas Instruments OPT101P-J is a highly sensitive photodetector amplifier unit designed for infrared and ultraviolet light detection. It integrates a photodiode and a transimpedance amplifier within a compact surface-mount package measuring 9.52 mm in length, 6.52 mm in width, and 3.24 mm in height. The device provides a voltage output signal with a peak photo sensitivity of 0.47 A/W, making it suitable for precision light measurement and control in various industrial and medical instrumentation applications.
This photodetector operates reliably within an ambient temperature range of 0°C to 70°C, ensuring stable performance under typical environmental conditions. The unit features 8 pins for secure electrical connections and comes packaged in a tube format that supports efficient insertion in automated production processes.
Designed with compliance to REACH and RoHS standards, the OPT101P-J supports environmentally responsible manufacturing practices. It belongs to the OPT101 series products known for high accuracy and low noise characteristics, ideal for sensitive detection tasks.
Its applications include medical diagnostic equipment, laboratory instrumentation, industrial automation, and other scenarios where accurate ultraviolet and infrared light measurement is critical. The surface mount package allows for compact circuit designs and streamlined assembly processes.
Photodiode integrated with transimpedance amplifier for precise detection. Surface mount type enables compact PCB layouts. Operating temperature range from 0°C to 70°C ensures versatile use. Peak sensitivity rated at 0.47 A/W enhances signal detection quality.
Tubular packaging facilitates handling and assembly efficiency. Compliant with major environmental directives REACH and RoHS. Voltage output suitable for direct signal processing. 8-pin configuration for dependable connectivity.
Optimized for medical instrumentation and precise optical sensing.
Explore more Texas Instruments photodetector amplifiers and optoElectronic Components in our Electronics & Electricals category to find ideal devices for your measurement and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak photo sensitivity of this model is 0.47 A/W, which enhances its ability to detect low light intensities effectively.
It operates reliably within an ambient temperature range of 0°C to 70°C, making it suitable for various applications.
This unit has compact dimensions of 9.52 mm in length, 6.52 mm in width, and 3.24 mm in height.
It features 8 pins for secure electrical connections, ensuring dependable connectivity in circuit designs.
The output signal type is voltage, suitable for direct signal processing in various applications.
This model is capable of detecting both infrared and ultraviolet light, making it versatile for different applications.
The photodetector is packaged in a tube format, which aids in protection and handling during assembly and transport.
Yes, it is compliant with REACH and RoHS standards, ensuring environmentally responsible manufacturing practices.
It is suitable for applications in medical diagnostic equipment, laboratory instrumentation, and industrial automation where accurate light measurement is critical.
This model is designed as a surface mount type, allowing for compact PCB layouts and streamlined assembly processes.
It belongs to the OPT101 series, known for high accuracy and low noise characteristics in sensitive detection tasks.
The wavelength of peak sensitivity for this photodetector is 650 nm, which is optimal for its detection capabilities.
