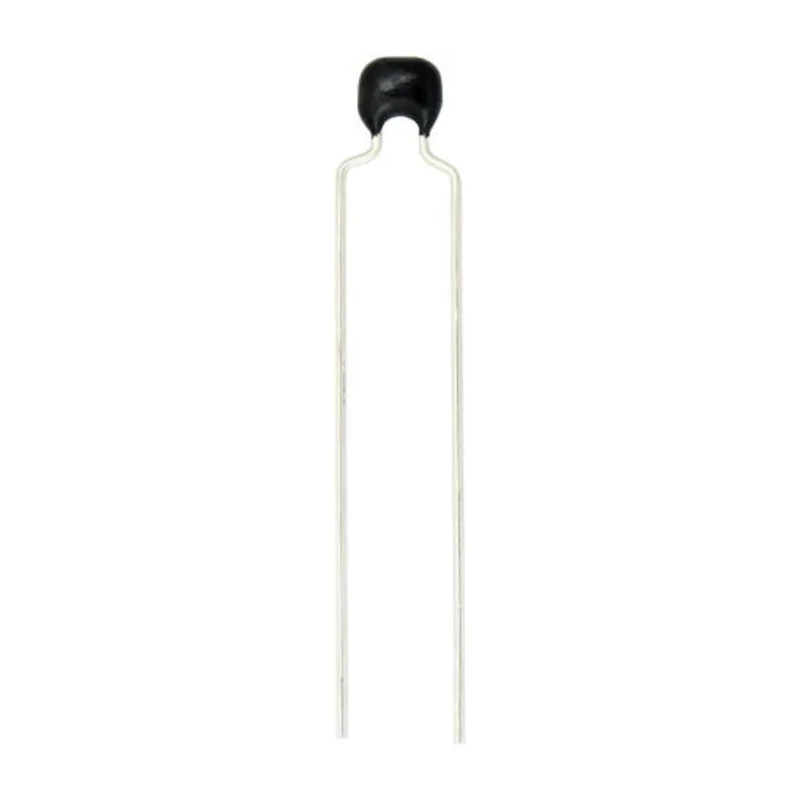

Vishay 100 nF 200V dc Multilayer Ceramic Capacitor Through Hole Radial K104K20X0UK63H5H

Vishay K104K20X0UK63H5H is a high-quality Multilayer Ceramic Capacitor (MLCC) designed for demanding electronic and automotive environments requiring robust performance. It features a capacitance of 100 nF and is rated for 200V dc, ensuring reliable operation in high voltage circuits. The capacitor uses an X0U dielectric material that provides minimal capacitance variation across extreme temperature ranges.

Manufactured to meet stringent automotive standard AEC-Q200 and other global standards such as IEC, UL, RoHS, EN, and EIA, this capacitor guarantees exceptional quality and reliability. Its through hole radial mounting style allows for easy installation in various electronic assemblies.

Key dimensions include 5.1 mm length and width, with a 3.2 mm overall height and seated plane height of 2.6 mm, making it suitable for compact circuit designs. The leads have a 0.6 mm diameter and a spacing of 5 mm which supports robust mechanical and electrical connections.

The Vishay K-H series capacitors are designed to handle temperatures from -55°C to +175°C, making them ideal for harsh automotive and industrial environments. The capacitor also features Class II suppression capabilities, making it effective for EMI filtering functions in circuits such as cable harnesses, turbo charger controls, throttle valves, and sensor systems.

This capacitor features a through hole radial mounting for secure installation. Constructed with X0U dielectric for excellent temperature stability. Capacitor tolerates extreme temperatures from -55°C to 175°C with consistent performance.

AEC-Q200 qualified to meet automotive electronic component standards. Dimensions optimize fit in compact designs: 5.1 mm x 5.1 mm x 3.2 mm. Radial leads sized at 0.6 mm diameter with 5 mm spacing for stability. Provides EMI suppression with Class II rating for noise reduction.

Suitable for automotive sensors and electronic control units.

This Vishay capacitor is made in China and represents a reliable choice for engineers and designers requiring high-temperature, compliant MLCCs for automotive, industrial, and consumer electronic applications. Browse the Electronics Components category at EnvMart for more Vishay capacitors and related products.
