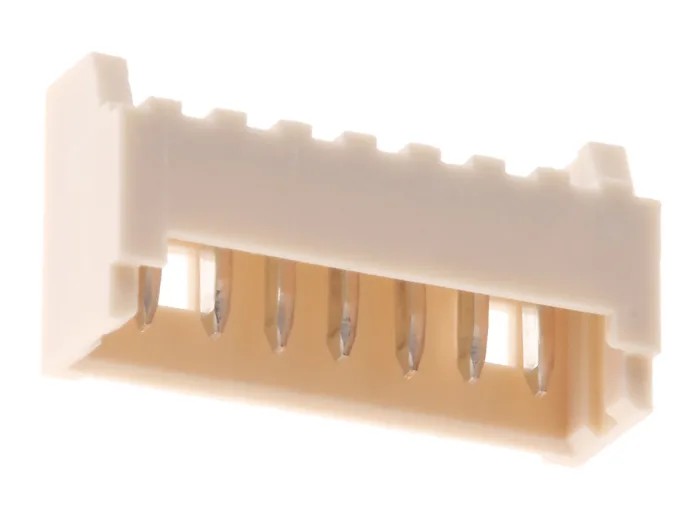

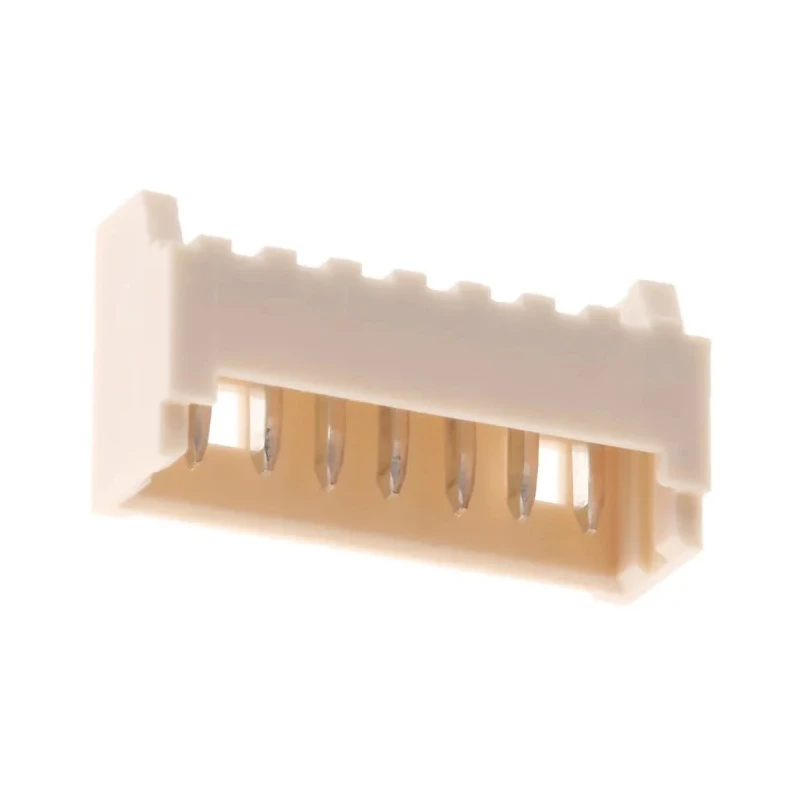

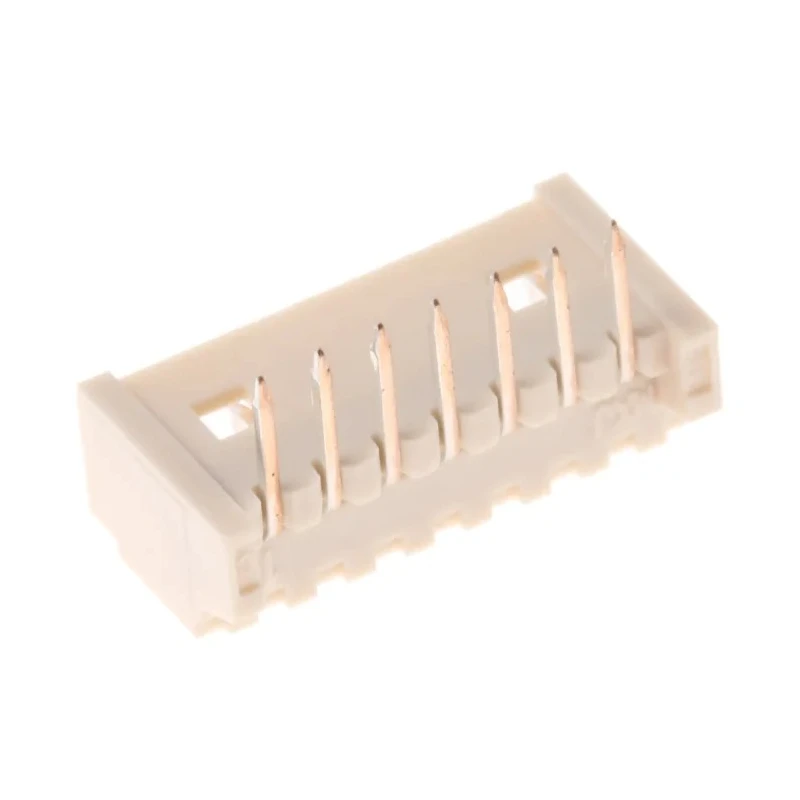

Molex PicoBlade Series Right Angle Through Hole PCB Header 7 Contact 1.25mm Pitch Shrouded 53048-0710

Name: Molex PicoBlade Series Right Angle Through Hole PCB Header 7 Contact 1.25mm Pitch Shrouded 53048-0710
Brand: Molex
SKU: 97902
Price: 0.77 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Japan
Voltage	125V
Brand	Molex
Orientation	Right Angle
Current	1A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	PicoBlade
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.25mm
Contact Plating	Tin
Number of Contacts	7
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

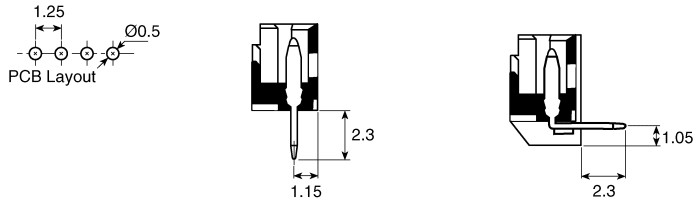

Tail Pin Length	2.3mm

Key Features

Features a shrouded design for enhanced contact protection.
Constructed with phosphor bronze contacts plated with tin for durability.
Wire-to-board connector system ensures secure and reliable attachment.
Rated for a voltage of 125V and current capacity of 1A.
Termination type is solder with male contact gender and tail pin length of 2.3 mm.
Operates reliably between -40°C and 85°C temperature range.
Utilizes nylon housing material for insulation and robustness.
Offers precise 1.25 mm pitch spacing with single row configuration.

Product Description

Molex 53048-0710 PicoBlade Series Right Angle Through Hole PCB Header features a 7 contact, 1.25 mm pitch single-row configuration, optimized for wire-to-board connections in industrial and electronics applications. The connector utilizes phosphor bronze contacts with tin plating, ensuring excellent conductivity and resistance to corrosion. Its shrouded design offers added protection against accidental short-circuits.

The header is designed with a right angle orientation to facilitate efficient PCB assembly and compact layouts. It enables reliable through hole mounting with solder termination, supporting operational voltage up to 125V and a current rating of 1A. The nylon housing provides mechanical strength and electrical insulation for secure connections across a wide temperature range from -40°C to 85°C.

This PCB header is ideal for electronic control panels, industrial automation equipment, sensor connectivity in automotive electronics, and various other PCB assembly scenarios. With precise 1.25 mm pitch and robust construction, it meets high reliability demands in manufacturing and commercial electronics.

Shrouded right angle design for enhanced protection and compact assembly. Wire-to-board connector system for secure, stable attachment. Phosphor bronze contacts with tin plating for durable electrical performance. Solder termination with 2.3 mm tail pin length for effective mounting.

Operational temperature from -40°C to 85°C, suitable for harsh environments. Nylon housing ensuring insulation and mechanical resilience. Rated 125V, 1A for versatile electronic applications. Single-row, 7 contacts, 1.25 mm pitch ensures precise connections.

Applications include industrial PCB assemblies, electronics manufacturing, and vehicle sensor connections, conforming to high-quality engineering standards. Choose this Molex PCB header to ensure secure, reliable, and long-lasting wire-to-board interconnections for your electronic projects or production needs.
