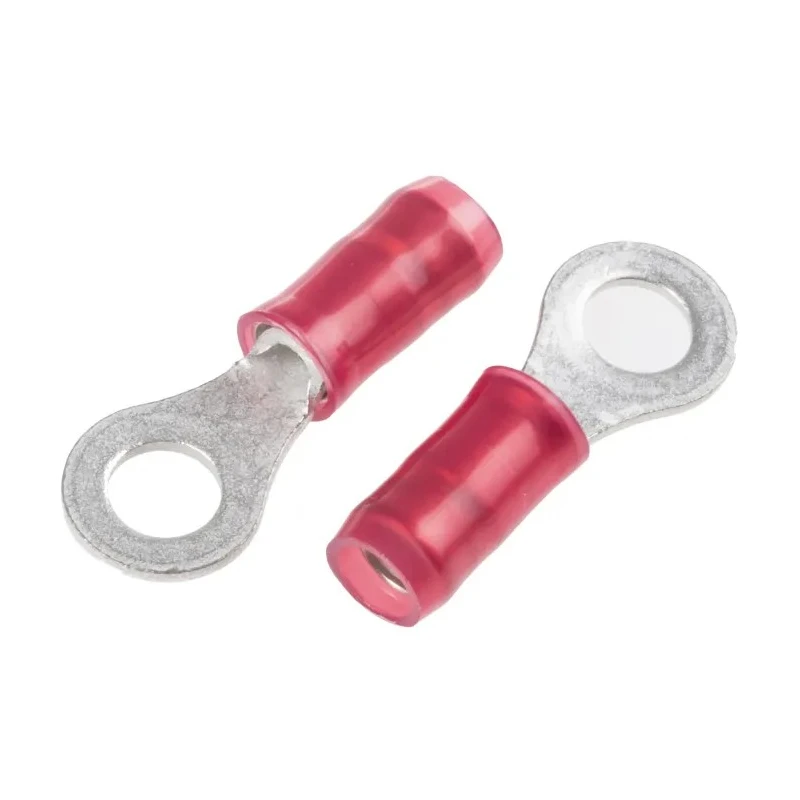

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 22 AWG 16 AWG Wire Size, Red 320551
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Model | 320551 |
| Insulation | Insulated |
| Overall Length | 21.44mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
| M4 RED RINGBrand | TE Connectivity |
Key Features
- Constructed with high conductivity copper for excellent electrical performance.
- Insulation is made from durable nylon material, providing added protection.
- Color coded red sleeve allows easy wire size and tooling identification.
- Features serrations inside the barrel for maximum contact and tensile strength after crimping.
- Designed with funnelled wire entry to facilitate quick and easy wire insertion.
- Suitable for wire sizes from 22 AWG to 16 AWG (0.26 mm² to 1.65 mm²).
- Compatible with M4 stud size applications requiring secure ring terminals.
- Withstands maximum operating temperature of 105°C for robust use environments.
Product Description
TE Connectivity 320551 PIDG Insulated Ring Terminal with M4 stud size offers reliable and uniform crimp terminations for wire gauges 22 AWG to 16 AWG (0.26 to 1.65 mm²). The terminal features a high conductivity copper body with a tin-plated contact to ensure excellent electrical connections and resistance to corrosion.
The insulated barrel is surrounded by a copper sleeve that provides improved wire insulation support and prevents wire fraying, while the outer nylon sleeve is color coded red for quick wire size identification. Serrations inside the wire barrel maximize contact and tensile strength after crimping, enhancing connection performance.
The funnelled wire entry design facilitates easy wire insertion during high-speed production, making it suitable for industrial manufacturing workflows. These terminals meet or exceed the demanding requirements for electrical instruments, control panels, lighting systems, power supplies, transportation, lifting equipment, motors, aerospace, and appliance connections.
Operating reliably up to 105°C, this ring terminal supports applications exposed to elevated temperatures without degradation of electrical integrity. Manufactured in the United States, it assures quality in critical circuit environments.
High conductivity copper contact with tin plating for corrosion resistance. Durable nylon insulation sleeve colored red for wire size identification. Serrated wire barrel maximizes contact and mechanical strength. Copper sleeve inside barrel supports wire insulation and prevents fraying.
Funnelled entry allows fast, easy insertion of wires during production. Accommodates wire sizes from 22 AWG to 16 AWG with M4 stud compatibility. Rated for operation at temperatures up to 105°C. Applications include industrial, aerospace, instrumentation, and control panel wiring.
Set your projects for success with TE Connectivity PIDG ring terminals known for reliability and ease of installation. Explore the full range of Ring Terminals for diverse electrical connection needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 22 AWG to 16 AWG, which corresponds to 0.26 mm² to 1.65 mm².
It is designed for M4 stud size applications, ensuring a secure fit.
The contact is made of high conductivity copper, which is tin-plated for corrosion resistance.
It can operate reliably at temperatures up to 105°C, suitable for various environments.
The overall length of this terminal is 21.44 mm.
The funnelled wire entry design allows for quick and easy wire insertion, enhancing efficiency during production.
It features a durable nylon insulation sleeve, which is color-coded red for easy wire size identification.
The outer ring diameter is 7.92 mm, and the inner ring diameter is 4.34 mm.
It is suitable for applications in industrial manufacturing, aerospace, instrumentation, and control panel wiring.
Serrations inside the wire barrel maximize contact and tensile strength after crimping, improving connection performance.
This terminal is manufactured in the United States, assuring quality in critical circuit environments.
The copper sleeve inside the barrel supports wire insulation and prevents fraying, enhancing durability during use.
