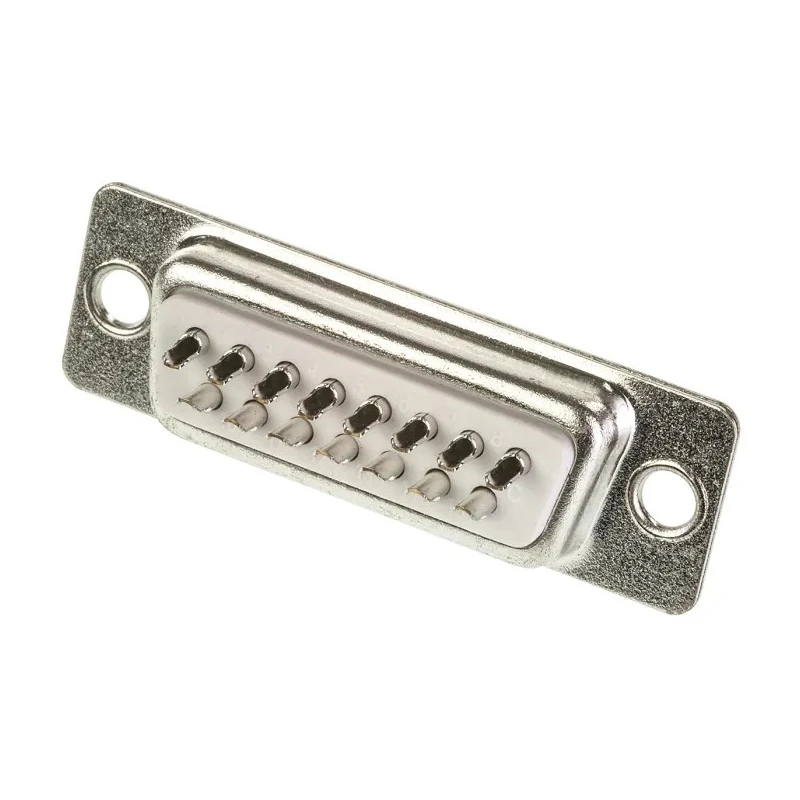

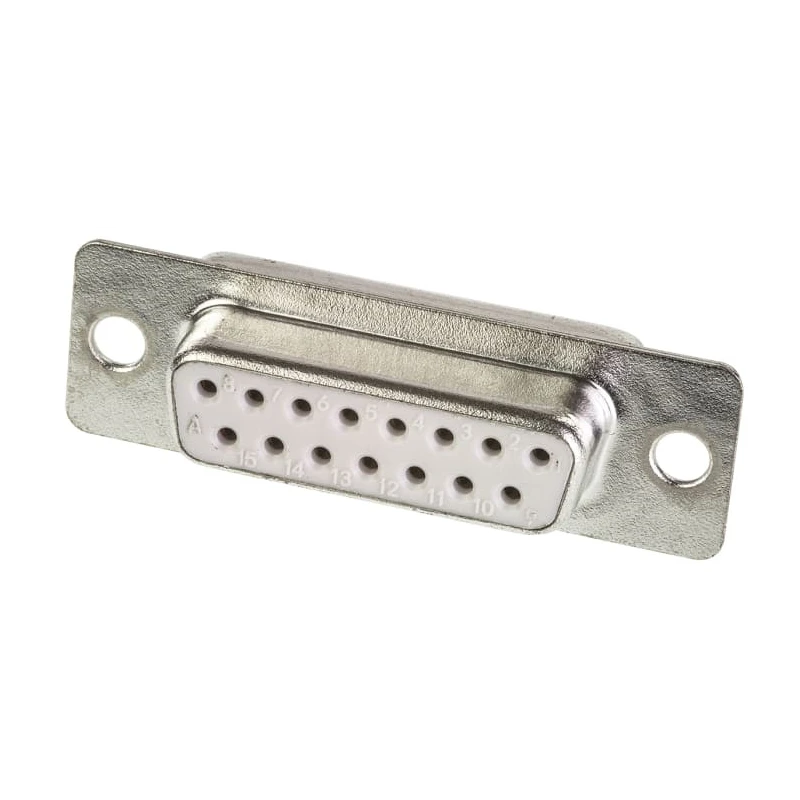

RS PRO 15 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector A-DF 15 LL/Z
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 3A |
| Model | A-DF 15 LL/Z |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Phosphor Bronze |
| Series | A-DF |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
Key Features
- Features 15 contacts with a standard 2.77 mm pitch.
- Designed as a straight panel mount connector for seamless integration.
- Constructed with a metal housing for durability and electromagnetic protection.
- Contacts are female with phosphor bronze material and gold plating for excellent conductivity and corrosion resistance.
- Operates at voltages up to 500V and current up to 3A safely.
- Supports operating temperatures from -55°C to 105°C suitable for harsh environments.
- Termination type is solder, providing secure and stable connections.
- Includes mounting flanges with 3.05 mm holes for secure assembly.
Product Description
ASSMANN WSW A-DF 15 LL/Z is a 15 Way Straight Panel Mount D-Sub Connector offering a 2.77 mm pitch, engineered for industrial, electronic, and computing applications requiring robust and reliable connectivity. The connector features a durable metal housing with a high-quality phosphor bronze contact core enhanced by gold plating, ensuring excellent electrical performance and corrosion resistance.
This panel mount connector supports voltage up to 500V and current ratings up to 3A with an operating temperature range of -55°C to 105°C, making it suitable for demanding electrical systems and environments. Its solder termination type and mounting flanges simplify installation and maintenance.
Ideal for use in electronics manufacturing, computer hardware assembly, telecommunications, and industrial control systems, this D-Sub connector ensures secure and stable electrical connections where high technical performance is required. The connector’s design facilitates integration into various types of equipment under stringent quality standards.
Constructed in China, the ASSMANN WSW model A-DF 15 LL/Z offers a balance of durability and precision necessary for professional applications in electronics, automation, telecommunications, and control systems.
Features 15 contacts with gold flash plating for optimal conductivity. Metal housing provides mechanical strength and EMI shielding. Supports panel mount installation with mounting flange holes for secure fixing. Wide temperature range ensures operational reliability in diverse environments.
Solder termination ensures secure and durable electrical contact. For high-quality D-Sub Connectors suitable for various industrial and electronics applications, explore more in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports voltages up to 500V and current ratings up to 3A.
The contacts have a standard pitch of 2.77 mm.
It features a metal housing for durability, with contacts made of phosphor bronze and gold plating for excellent conductivity and corrosion resistance.
The connector operates within a temperature range of -55°C to 105°C, making it suitable for harsh environments.
It utilizes a solder termination type, ensuring secure and stable electrical connections.
This model supports panel mount installation and includes mounting flanges with 3.05 mm holes for secure assembly.
It has 15 contacts, designed for reliable connectivity in various applications.
The contacts are female, designed for compatibility with male connectors.
It is ideal for use in electronics manufacturing, computer hardware assembly, telecommunications, and industrial control systems.
The connector has a D-Sub shell size classified as 'A'.
This model is constructed in China.
The metal housing provides mechanical strength and electromagnetic interference (EMI) shielding.
