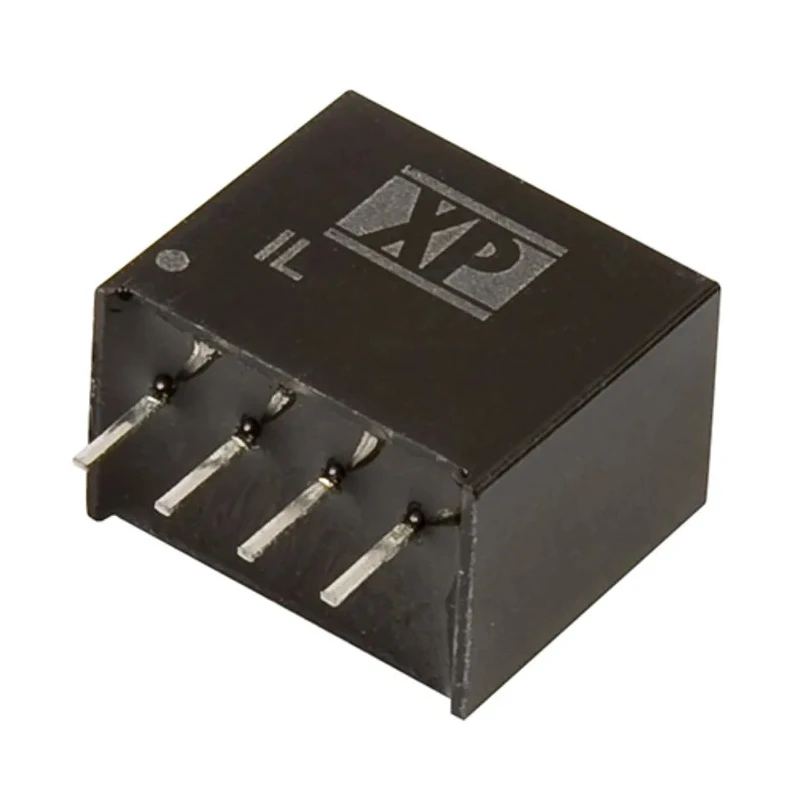

XP Power Isolated DC/DC Converter Through Hole SIP Package 5V DC 400 mA 13.2V DC Input IL1205S

XP Power IL1205S is a highly reliable isolated DC/DC converter designed for industrial and electronic component applications requiring a stable 5V dc output at 400 mA. This SIP (Single Inline Package) through hole module offers 2 W maximum output power and boasts a robust isolation voltage of 1 kV dc, ensuring safety and signal integrity in sensitive circuits.

The converter supports a nominal input voltage range between 10.8V to 13.2V dc, accommodating slight variations in supply voltage while maintaining consistent output regulation. Its compact physical dimensions - 11.68mm in length, 7.5mm in width, and 10.16mm in depth - enable efficient board space usage in dense electronic assemblies. The unit features four pins for secure through hole mounting and ensures extended operational reliability with an MTBF exceeding 1.2 million hours.

Operating across a temperature range of -20 °C to 100 °C, the IL1205S is suitable for environments that expose equipment to significant temperature variations, common in industrial, commercial, and automation settings. The device delivers a high efficiency of approximately 78%, reducing energy waste and resultant heat generation, which contributes to longer device lifespan and system stability.

Typical applications for the XP Power IL series isolated DC/DC Converters include powering control systems, instrumentation, industrial automation circuits, and embedded electronics requiring galvanic isolation and consistent low voltage power. The SIP package design simplifies integration into existing PCB layouts and systems.

Provides isolated 2 W power conversion with 1 kV dc isolation voltage. Operates over wide input voltage range from 10.8V to 13.2V dc for flexible power supply design. Compact SIP package measures 11.68mm length, 7.5mm width, and 10.16mm depth for space-saving PCB layouts.

Features 4 pins with high mean time between failure (MTBF) of 1,210,000 hours for reliable long-term operation. Installed via through hole mounting supporting industrial and embedded power supply use cases. Operating temperature range from -20°C to +100°C enables use in challenging environments.

Achieves energy efficiency of approximately 78% for power savings and thermal management. Ideal for powering electronics requiring isolated 5V output such as instrumentation, automation, and control systems.

This product is manufactured in Taiwan, Province of China, maintaining high manufacturing standards. Choose XP Power IL1205S for efficient, isolated power conversion in demanding industrial and commercial electronics environments.
