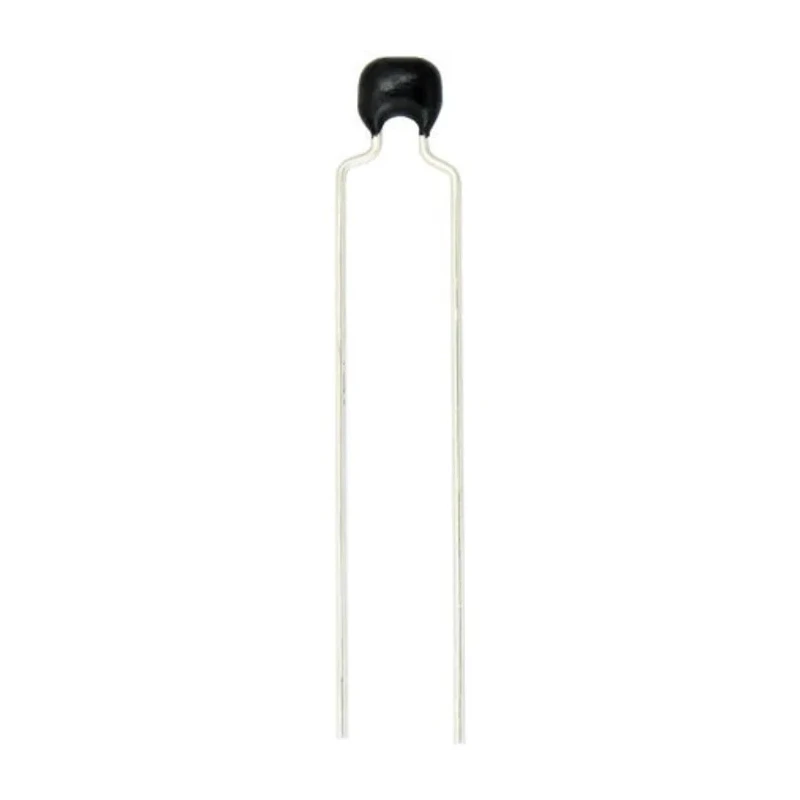

Vishay 100 pF Multilayer Ceramic Capacitor 50V dc Through Hole Radial K101J15C0GF53H5H
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V dc |
| Brand | Vishay |
| Height | 2.6mm |
| Length | 3.8mm |
| Model | K101J15C0GF53H5H |
| Packaging | Bulk |
| Width | 3.8mm |
| Mount Type | Through Hole |
| Series | K-H |
| Termination Type | Radial |
| Maximum Operating Temperature | 175°C |
| Tolerance | ±5 % |
| Capacitance | 100pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, UL, EIA, EN, IEC |
| Lead Diameter | 0.5mm |
| Dielectric | C0G |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class I |
| Lead Spacing | 5mm |
| Seated Plane Height | 2.6mm |
Key Features
- Capacitance of 100 pF ensures precise energy storage and filtering.
- Constructed with stable C0G dielectric for excellent stability and low losses.
- Radial termination type with through-hole mount provides robust mechanical connection.
- Operating temperature range from -55°C up to 175°C ensures high thermal reliability.
- Complies with automotive standard AEC-Q200, enhancing suitability for automotive applications.
- Class I suppression with ±5 % tolerance for high precision.
- Compact dimensions with 3.8mm length, 3.8mm width, and 2.6mm height.
- Lead spacing of 5mm and lead diameter of 0.5mm facilitate standard PCB assembly.
Product Description
Vishay K101J15C0GF53H5H is a high-performance Multilayer Ceramic Capacitor (MLCC) featuring a capacitance of 100 pF and rated for 50V DC operation. This through hole radial capacitor utilizes a C0G dielectric, known for its exceptional stability and low capacitance variation over temperature and time, making it ideal for precision applications such as filtering, timing, and sample-and-hold circuits.
Designed with automotive-grade quality, it complies with the AEC-Q200 standard, ensuring reliability in harsh operating conditions including automotive environments. The capacitor withstands temperatures from -55°C up to an exceptional 175°C, surpassing many standard ceramic capacitors.
The physical construction includes radial tinned copper-clad leads with a 5mm lead spacing and 0.5mm lead diameter. Its compact size (3.8mm x 3.8mm x 2.6mm) supports dense PCB layouts. The component is RoHS, UL, EIA, EN, and IEC certified, meeting strict international requirements for performance and safety.
This capacitor is well suited for demanding electronic design projects requiring stable, reliable ceramic capacitors with tight tolerances and high temperature resilience. Typical applications include automotive EMI filtering in systems like cable harnesses, turbochargers, throttle valves, brake controls, exhaust sensors, and seating position monitoring.
Capacitance of 100 pF ensures precise energy storage and filtering. Rated voltage of 50V DC suitable for low voltage circuits. Stable C0G dielectric provides excellent stability and low loss. Through hole radial mounting with tinned copper leads for durability.
Wide operating temperature range from -55°C to 175°C. AEC-Q200 compliant for automotive-grade reliability. Class I suppression with ±5 % tolerance. Compact dimensions suitable for dense PCB layouts. Lead spacing 5mm, lead diameter 0.5mm for standard mounting.
RoHS and other certifications ensure compliance and safety.
Explore the Vishay brand and other high-quality Multilayer Ceramic Capacitors in the Electronics & Electricals category to find components suited to your industrial, automotive, or commercial electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 100 pF, ensuring precise energy storage and filtering capabilities.
It is rated for a maximum voltage of 50V DC, making it suitable for low voltage circuits.
This capacitor utilizes a C0G dielectric, known for its excellent stability and low loss characteristics.
The operating temperature range is from -55°C to 175°C, ensuring high thermal reliability in various conditions.
The capacitor has a compact size of 3.8mm in length, 3.8mm in width, and 2.6mm in height.
It features a lead spacing of 5mm and a lead diameter of 0.5mm, facilitating standard PCB assembly.
Yes, it complies with the AEC-Q200 automotive standard, enhancing its reliability for automotive applications.
It has a tolerance of ±5 %, which is suitable for high precision applications.
It is certified to RoHS, UL, EIA, EN, and IEC standards, ensuring compliance with strict international requirements.
This model employs a through hole radial mounting type, providing a robust mechanical connection.
Typical applications include automotive EMI filtering in systems like cable harnesses, turbochargers, and brake controls.
The country of origin for this capacitor is China.
