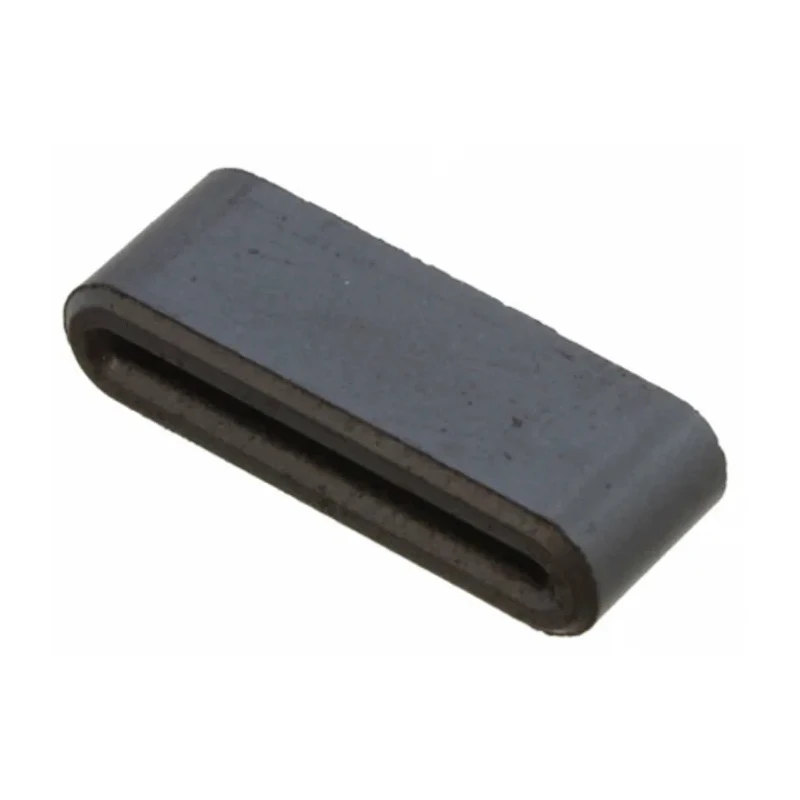

Wurth Elektronik Ferrite Sleeve Fixed 0.8 mm Internal Height, 17 mm Internal Width, 12 Max. Wires 7427809
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Material | Ferrite |
| Model | 7427809 |
| Sub Type | Fixed |
| Internal Width | 17mm |
| Internal Height | 0.8mm |
| External Width | 21mm |
| External Depth | 8mm |
| External Height | 5mm |
| Standards/Approvals | RoHS |
| Impedance at 100 MHz | 25Ω |
| Maximum Number of Wires | 12 |
| KEMET Ferrite Flat Cable Ferrite Core, Solid Core, Inner dims. 17 x 0.8mmBrand | KEMET |
Key Features
- Constructed from ferrite material to reduce electromagnetic interference.
- Designed to fit cables with a maximum of 12 wires.
- Fixed type sleeve, not openable, providing secure EMI filtering.
- External dimensions are 21 mm width, 8 mm depth, and 5 mm height.
- Impedance of 25 ohms at 100 MHz frequency ensures effective suppression of high-frequency noise.
- Operates reliably in temperatures ranging from -25°C to +125°C.
- Compliant with RoHS standards for hazardous substance limitation.
- Manufactured in Taiwan, Province Of China.
Product Description
Wurth Elektronik 7427809 Ferrite Sleeve is a precision-engineered fixed ferrite core designed for flat cable applications in electronic and digital devices. The sleeve accommodates flat cables with a maximum of 12 wires, providing reliable electromagnetic interference (EMI) suppression with an impedance rating of 25 Ω at 100 MHz. The internal dimensions of 17 mm width and 0.8 mm height ensure compatibility with standard flat ribbon cables.
Made of high-quality ferrite material, this sleeve is non-openable, ensuring a secure fit by threading it over the cable before connector installation. It remains firmly positioned using heat shrink sleeving or adhesive, making it ideal for durable electronic assemblies.
External measurements of 21 mm width, 8 mm depth, and 5 mm height contribute to its compact form factor, optimizing space in tight electronic enclosures. Designed to function effectively in temperatures from -25°C to +125°C, it suits a broad range of industrial, commercial, and laboratory settings including digital device manufacturing, signal processing, and EMI filtering applications.
This RoHS-compliant component also harmonizes environmental responsibility with performance excellence. Originating from Taiwan, Province Of China, the product reflects Wurth Elektronik's commitment to quality and reliability.
Constructed from ferrite material to reduce electromagnetic interference. Designed to fit cables with a maximum of 12 wires. Fixed type sleeve, not openable, providing secure EMI filtering. External dimensions are 21 mm width, 8 mm depth, and 5 mm height.
Impedance of 25 ohms at 100 MHz frequency ensures effective suppression of high-frequency noise. Operates reliably in temperatures ranging from -25°C to +125°C. Compliant with RoHS standards for hazardous substance limitation.
Manufactured in Taiwan, Province Of China.
Suitable for applications in electronics and electrical manufacturing, this Ferrite Sleeve is essential for minimizing signal noise on flat cable harnesses in industrial, laboratory, and commercial environments.
Explore additional Wurth Elektronik EMS components and ferrite solutions in the Electronics Components category on EnvMart for your next project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The internal dimensions of this ferrite sleeve are 17 mm in width and 0.8 mm in height, accommodating flat cables with a maximum of 12 wires.
The external dimensions are 21 mm in width, 8 mm in depth, and 5 mm in height, contributing to its compact form factor.
It has an impedance of 25 ohms at a frequency of 100 MHz, ensuring effective suppression of high-frequency noise.
This model operates reliably in temperatures ranging from -25°C to +125°C, making it suitable for various environments.
Yes, it is compliant with RoHS standards for hazardous substance limitation, ensuring environmental responsibility.
It is constructed from ferrite material, which is effective in reducing electromagnetic interference.
It is designed to fit cables with a maximum of 12 wires, providing secure EMI filtering.
This is a fixed type sleeve, meaning it is not openable and provides a secure fit by threading it over the cable before connector installation.
It is manufactured in Taiwan, Province Of China, reflecting the brand's commitment to quality.
It is suitable for applications in electronics and electrical manufacturing, particularly for minimizing signal noise on flat cable harnesses.
The model number of this ferrite sleeve is 7427809, which is used for identification and compatibility purposes.
It is installed by threading it over the cable before connector installation, and it can be secured using heat shrink sleeving or adhesive.
