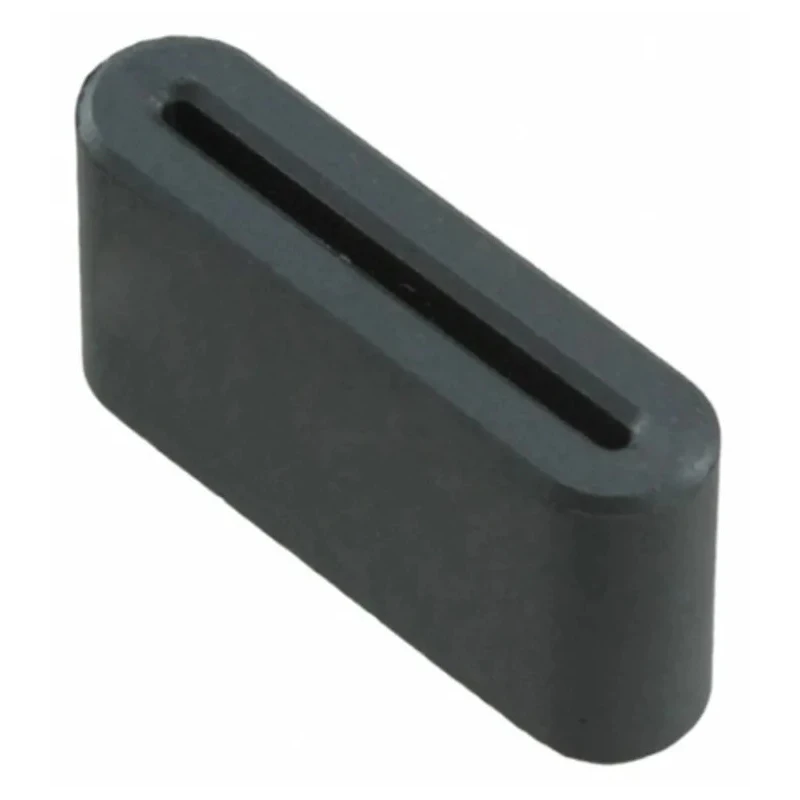

Wurth Elektronik Ferrite Sleeve Fixed 13 Max. Wires 1.1 mm Internal Height 18.8 mm Internal Width Model 7427226
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Material | Ferrite |
| Model | 7427226 |
| Sub Type | Fixed |
| Internal Width | 18.8mm |
| Internal Height | 1.1mm |
| External Width | 23.8mm |
| External Depth | 12mm |
| External Height | 6.3mm |
| Standards/Approvals | RoHS |
| Impedance at 100 MHz | 75Ω |
| Maximum Number of Wires | 13 |
Key Features
- The sleeve has an internal height of 1.1 mm and a width of 18.8 mm for flat cable applications.
- Constructed from high-quality ferrite material to effectively suppress electromagnetic interference.
- Provides an impedance of 75 ohms at 100 MHz frequency.
- Non-openable design ensures durability in electronic component protection.
- External dimensions are 23.8 mm width, 12 mm depth, and 6.3 mm height.
- Compliant with RoHS standards for environmental and safety requirements.
- Designed for use in digital devices and flat cable applications to minimize interference.
- This ferrite sleeve operates reliably within a temperature range of -25°C to +125°C.
Product Description
Wurth Elektronik model 7427226 is a fixed ferrite sleeve designed for EMI filtering on flat cables accommodating up to 13 wires. This ferrite sleeve is used extensively in digital devices and display controllers to reduce severe electrical interference that can disrupt signal integrity.
The sleeve is made from premium ferrite material, providing impedance of 75 ohms at 100 MHz frequency. It measures 18.8 mm internal width and 1.1 mm internal height, suitable for flat cable dimensions, while its external size is 23.8 mm in width, 12 mm in depth, and 6.3 mm in height. The closed, non-openable design ensures the ferrite stays securely in position during cable assembly and use.
Installation involves simply threading the sleeve over the cable before connector attachment. It can then be secured using heat-shrink sleeving or adhesive, offering a stable EMI filtering solution. The ferrite core operates efficiently in temperature conditions from -25°C up to +125°C, suitable for varied industrial and commercial electronic environments.
This product complies with RoHS environmental standards, emphasizing its safety and non-toxic manufacture. Its origin is Taiwan, Province Of China, reflecting stringent production quality controls.
The sleeve supports flat cable EMI suppression in digital and display equipment. High impedance ferrite material moderates cable interference effectively. Fixed design enhances reliability under operational stresses. Applicable in industrial electronics, communications equipment, and consumer devices.
Simple installation and compatibility with heat shrink or adhesive fixation. Suitable for operation across a wide temperature range. Conforms with environmental protection standards as per RoHS.
Wurth Elektronik Ferrite Sleeves are trusted components in electronics manufacturing and maintenance. Explore our extensive range for other ferrite cores and EMI filtering solutions to support your electronics design needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ferrite sleeve has an internal height of 1.1 mm and an internal width of 18.8 mm, making it suitable for flat cable applications.
This ferrite sleeve provides an impedance of 75 ohms at a frequency of 100 MHz, effective for EMI suppression.
The external dimensions of the sleeve are 23.8 mm in width, 12 mm in depth, and 6.3 mm in height.
This model can accommodate a maximum of 13 wires, making it suitable for various flat cable configurations.
The ferrite sleeve operates reliably within a temperature range of -25°C to +125°C, suitable for diverse environments.
Yes, this product complies with RoHS standards, emphasizing its adherence to environmental and safety requirements.
The sleeve is constructed from ferrite material, which is effective in suppressing electromagnetic interference.
Installation involves threading the sleeve over the cable before connector attachment, and it can be secured using heat-shrink sleeving or adhesive.
It features a fixed, non-openable design that ensures durability and secure positioning during cable assembly and use.
This ferrite sleeve is designed for use in digital devices and display controllers to minimize electrical interference affecting signal integrity.
The ferrite sleeve is manufactured in Taiwan, reflecting stringent production quality controls.
The primary purpose of the ferrite sleeve is to effectively suppress electromagnetic interference, enhancing signal integrity in electronic applications.
