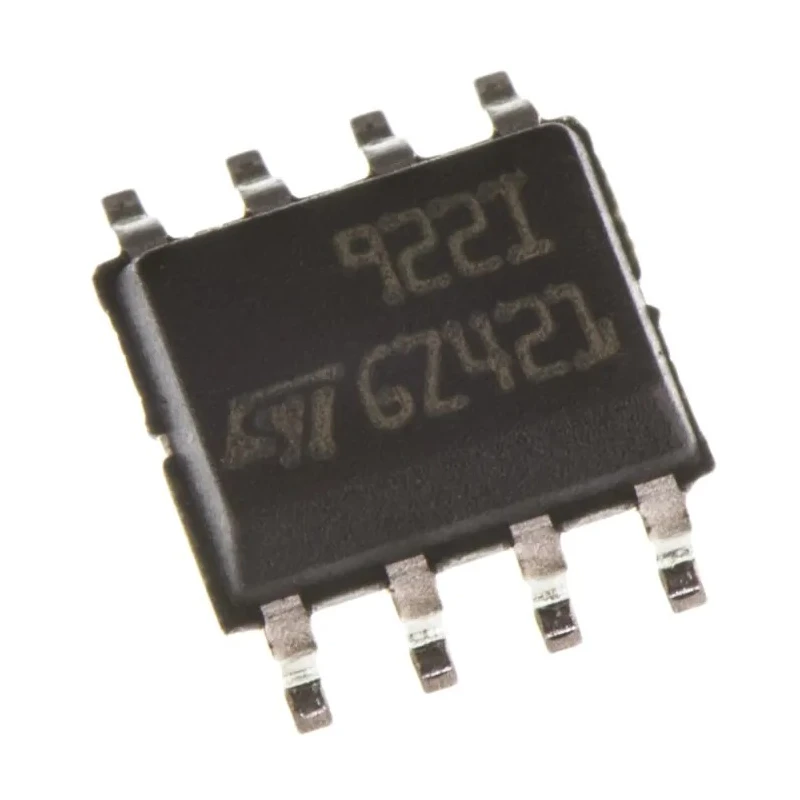

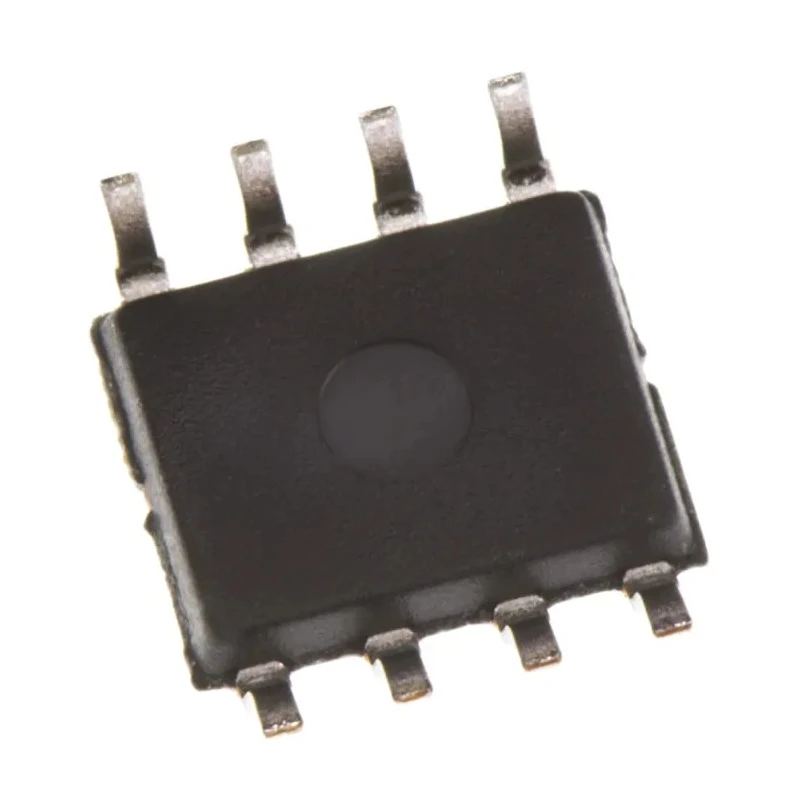

STMicroelectronics Operational Amplifier, Dual Channel, 4 MHz Gain Bandwidth, 8-Pin SOIC, 12V TS922IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TS922IDT |
| Width | 3.9mm |
| Mount Type | Surface |
| Low Noise | 9 nV/√Hz |
| Series | TS922 |
| Output Current | 80mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 100 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 1.3V/μs |
| High output current | 80 mA (able to drive 32 Ω loads) |
| Input Offset Current | 30 nA |
Key Features
- Offers a gain bandwidth product of 4 MHz suitable for audio and signal processing circuits.
- Features low noise operation with 9 nV/√Hz ensuring signal integrity.
- Capable of driving high output current up to 80 mA, ideal for low impedance loads.
- Comes in a compact 8-pin SOIC surface mount package with dimensions 4.9mm x 3.9mm x 1.25mm.
- Includes integrated slew rate of 1.3 V/μs supporting fast signal response.
- Meets AEC-Q100 automotive standards for high reliability in harsh environments.
- Operates reliably between temperatures of -40°C to 125°C for industrial use.
- Low input offset voltage of 5 mV and input bias current of 100 nA support precision applications.
Product Description
STMicroelectronics TS922IDT is a dual-channel operational amplifier designed for applications requiring high-performance amplification with low distortion and noise. It offers a gain bandwidth product of 4 MHz, making it suitable for audio, signal conditioning, and various electronic systems.
The device is housed in an 8-pin SOIC surface mount package measuring 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height, supporting compact PCB layouts. Its maximum output current capability of 80 mA enables it to drive 32 Ω loads effectively.
The amplifier operates from a supply voltage range of 3 V to 12 V and meets automotive-grade AEC-Q100 standards, making it reliable for automotive and industrial environments. The device performs with low noise (9 nV/√Hz) and low distortion (0.005%), delivering excellent audio performance and precision signal amplification.
Additional features include a low input offset voltage of 5 mV and input bias current of 100 nA, which enhance accuracy in sensitive circuits. The integrated slew rate of 1.3 V/μs ensures timely response to rapid input changes. The TS922IDT supports operating temperatures between -40°C and 125°C, suitable for wide-ranging industrial applications.
This operational amplifier series includes TS921 (single), TS922 (dual), TS924 (quad), and TS925 (quad) variants, all optimized for 3 V and 5 V operation but capable up to 12 V. The TS922IDT is ideal for use in industrial, automotive, instrumentation, audio processing, and control system applications.
Gain Bandwidth Product: 4 MHz. Output Current: 80 mA, drive 32 Ω load. Package: 8-Pin SOIC, Surface Mount. Low Noise: 9 nV/√Hz. Low Distortion: 0.005%. Temp Range: -40°C to 125°C. Input Offset Voltage: 5 mV. Supply Voltage: 3 V to 12 V.
Automotive Standard: AEC-Q100. RoHS Compliant. Explore STMicroelectronics Operational Amplifiers with TS922IDT model for high precision and performance on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS922IDT has a gain bandwidth product of 4 MHz, making it suitable for audio and signal processing applications.
This operational amplifier can drive a maximum output current of 80 mA, capable of handling low impedance loads such as 32 Ω.
The TS922IDT is housed in an 8-pin SOIC package with dimensions of 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
It operates within a supply voltage range of 3 V to 12 V, making it versatile for various applications.
The operational amplifier can operate reliably between temperatures of -40°C and 125°C, suitable for industrial use.
The TS922IDT has a low input offset voltage of 5 mV, which supports precision applications.
This model features an integrated slew rate of 1.3 V/μs, ensuring a fast response to rapid input changes.
It meets AEC-Q100 automotive standards, ensuring high reliability in harsh environments.
It operates with a low noise level of 9 nV/√Hz, which helps maintain signal integrity in sensitive applications.
This operational amplifier is ideal for use in industrial, automotive, instrumentation, audio processing, and control system applications.
The input bias current for this amplifier is 100 nA, which is beneficial for enhancing accuracy in sensitive circuits.
The TS922IDT is part of the TS922 series, which includes variants such as TS921 (single), TS922 (dual), TS924 (quad), and TS925 (quad).
