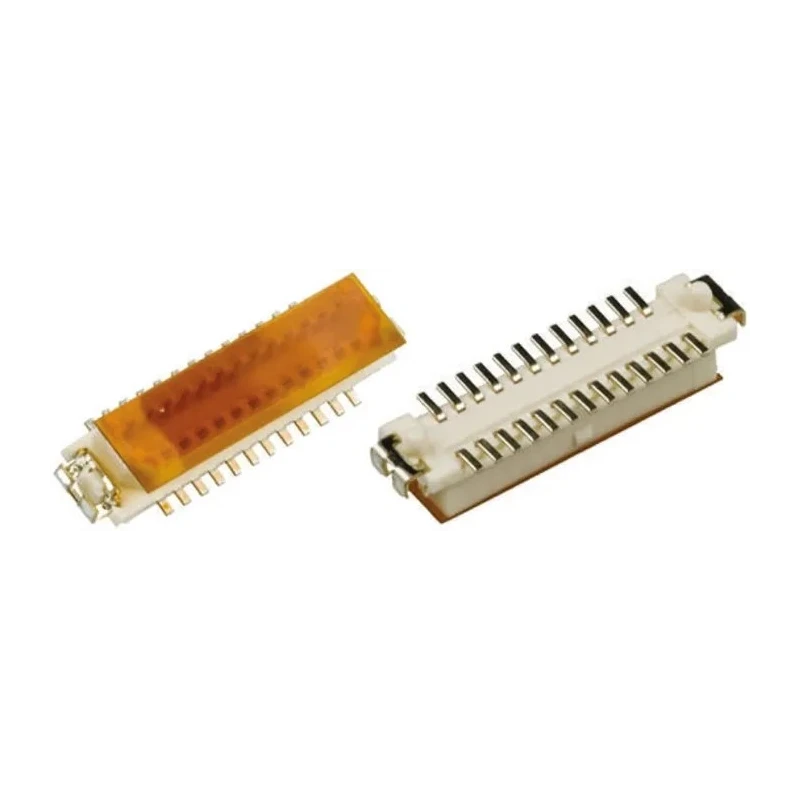

Hirose DF9 Series Straight Surface PCB Socket 41-Contact 2 Row 1 mm Pitch Solder DF9-41S-1V(69)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 150V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 500mA |
| Model | DF9-41S-1V(69) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper |
| Series | DF9 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -45°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 41 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Complies with VESA FPDI-1 standard for flat panel displays.
- Trapezoidal shaped mating interface prevents incorrect insertion.
- Easy lock mechanism ensures secure mating with tactile feedback.
- Mounting bosses allow stable placement during soldering or manual assembly.
- Metal fittings on SMT versions prevent solder joint stress and peeling.
- Suitable for portable equipment, POS terminals, measurement devices, and handheld electronics.
- Operating temperature range from -45°C to 125°C for diverse environments.
- Rated for 500mA current and 150V voltage.
Product Description
Hirose DF9-41S-1V(69) PCB Socket is a high-quality, 41-contact, 2-row PCB connector featuring a 1 mm pitch designed primarily for board-to-board connections in electronic devices.
This socket complies with the VESA FPDI-1 (Flat Panel Display Interface) standard, widely used in LCD display interfaces which ensures broad compatibility and reliable performance.
The trapezoidal shaped mating interface effectively prevents misinsertion, enhancing connection reliability. An easy lock mechanism provides a tactile click indicating secure mating, thereby improving assembly accuracy and user confidence.
Mounting bosses are integrated to hold the connector firmly during soldering or manual placement, facilitating manufacturing processes. Additionally, metal fittings on the surface mount technology (SMT) versions ensure a secure PCB attachment and help prevent solder joint peeling caused by mechanical stress.
Constructed using polyamide housing and copper contacts plated with gold, this connector offers excellent durability and conductivity suitable for demanding electronic applications.
The product is rated for 150V and 500mA, functioning reliably between -45°C and 125°C. Its applications include use in portable equipment, point of sale (POS) terminals, measurement instruments, and various handheld devices.
Complies with VESA FPDI-1 interface standard. Trapezoidal interface prevents incorrect mating. Includes an easy lock mechanism for secure connection. Mounting bosses aid stable soldering and placement. Enhanced PCB attachment with metal fittings on SMT versions.
Durable polyamide housing with gold-plated copper contacts. Rated for 150V voltage and 500mA current. Wide operating temperature range from -45°C to 125°C. Designed for applications in portable, POS, and measurement devices.
This Hirose PCB socket is an essential component for industries requiring reliable and compact board-to-board connections, such as consumer electronics, industrial equipment, and telecommunications.
Explore other high-performance PCB Sockets and connectors in the Electronics Components category on EnvMart to complement your designs and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 150V.
The current rating for this PCB socket is 500mA.
It operates reliably within a temperature range of -45°C to 125°C.
This connector features 41 contacts arranged in 2 rows.
The Hirose DF9-41S-1V(69) uses solder termination.
It has a polyamide housing and copper contacts that are gold-plated.
Yes, this model complies with the VESA FPDI-1 standard for flat panel displays.
The contact pitch for this model is 1 mm.
It is designed as a board-to-board connector system.
It has a trapezoidal shaped mating interface that effectively prevents misinsertion.
This model is suitable for portable equipment, POS terminals, measurement devices, and handheld electronics.
This connector uses a surface mount type for installation.
