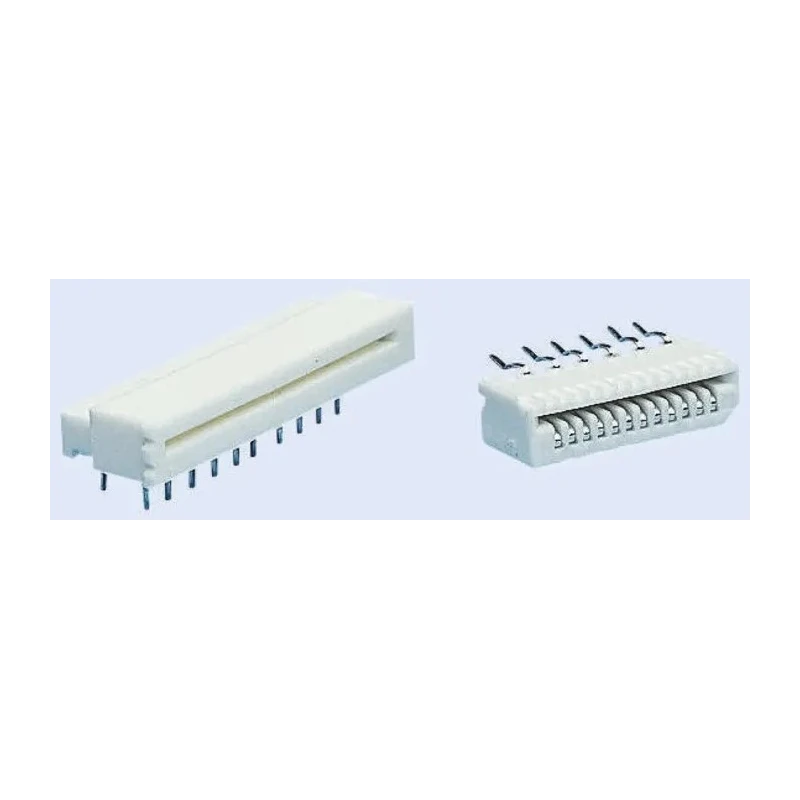

Molex 1.25 mm Pitch 26 Way Straight Female FPC Connector Through Hole Solder 39-53-2265

Molex 39-53-2265 is a high quality 1.25 mm pitch 26 way straight female FPC connector designed for through hole solder termination. This connector features a zero insertion force (ZIF) mounting technique with a slide type actuator, which allows easy and secure connection to flexible printed circuits (FPCs), minimizing insertion wear and ensuring reliable electrical contact for repeated cycles.

Featuring phosphor bronze contacts with tin over nickel plating, this connector supports currents up to 1 A and voltage up to 200 V, making it suited for electronic automotive and other precision applications where compact PCB connections are required. Its housing is made from polyethylene terephthalate, providing resistance against mechanical and thermal stress.

With locking mechanism included and a single row of 26 contacts spaced at 1.25 mm pitch, the connector offers a space-saving design ideal for dense PCB layouts. It performs reliably over an operating temperature range of -20°C to 80°C, accommodating both cold and warm environments encountered in industrial or vehicular electronics.

Molex 5597 series connectors are recognized for their durability, ease of use, and low insertion force. The slide actuator ensures consistent contact pressure and a secure connection between the flexible circuit and connector terminals, essential for high-density wiring harnesses and electronic assemblies.

This connector is typically used in automotive electronic systems, communication devices, and other industrial electronics where robust, compact, and reliable connections are vital. Its straightforward through-hole solder mount design allows easy installation on PCBs with stable mechanical retention.

The connector features a zero insertion force mechanism for ease and durability. The slide type actuator provides secure and reliable connections. Phosphor bronze contact material with tin over nickel plating ensures good electrical performance.

Suitable for 1 A current and 200 V voltage ratings. Single row 26 contacts with 1.25 mm pitch for compact PCB usage. Durable polyethylene terephthalate housing material. Operating temperature range of -20°C to 80°C allows diverse applications.

Locking mechanism included to maintain connection integrity under vibration or movement. Ideal for automotive electronics, industrial, and communication device PCBs. Manufactured in Japan with high quality standards. Explore more FPC Connectors and related electronic components on EnvMart for your design and manufacturing needs.
