| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C5V1-QYL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 5.1V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 500Ω |
| Typical Voltage Temperature Coefficient | -2mV/K |
The Nexperia BZX8850S-C5V1-QYL is a precision Zener diode engineered for reliable voltage regulation in modern electronic applications. With a nominal Zener voltage of 5.1V and a maximum power dissipation of 365mW, this diode is optimized for use in low-bias and portable battery-powered devices where stable voltage is essential.

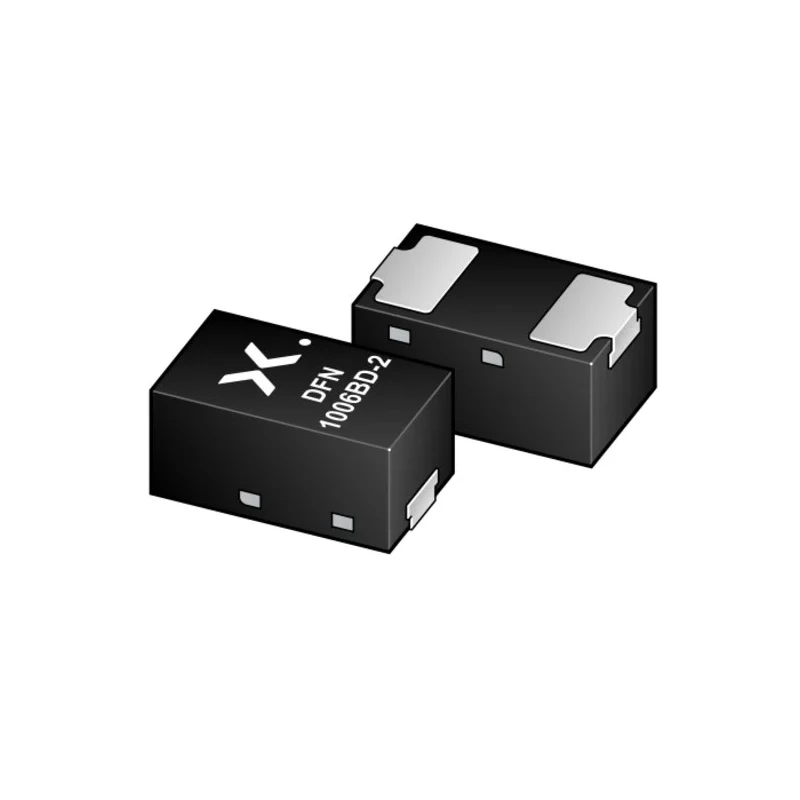

This model features a compact DFN1006BD-2 leadless surface mount package, aiding in miniaturization and automated PCB assembly. Its ±5% voltage tolerance and low test current of 50μA ensure accurate regulation while minimizing power consumption, making it well suited for general regulation functions in both industrial and automotive systems.
Offers robust performance with a maximum operating temperature of 150°C and a minimum of -55°C, ensuring stability across diverse application environments. Low reverse leakage current of just 5μA supports high efficiency and reliability in sensitive circuit designs.
Single diode configuration allows for simple, effective circuit integration. Automotive standard AEC-Q101 qualified, affirming its suitability for automotive and other demanding uses. Tiny 1mm body length and 0.47mm profile enable placement in ultra-compact assemblies.
Typical voltage temperature coefficient of -2mV/K for consistent operation across temperature swings. Ideal for voltage reference, overvoltage protection, and voltage clamping tasks in consumer electronics, industry, telecom, and automotive electronics.
Package: DFN1006BD-2, 2-pin, with side-wettable flanks for enhanced PCB soldering reliability. The device supports a broad working voltage range (nominal 1.8V to 75V across the BZX8850S series) and is optimized for regulated low-current applications.
Industries and Applications: Utilized in industrial systems, telecommunications, automotive electronics, commercial power regulation modules, laboratory circuit prototyping, and consumer portable devices.
Explore more Zener Diodes and electronic components from Nexperia and leading brands at EnvMart to fulfill your voltage regulation and circuit protection requirements.
