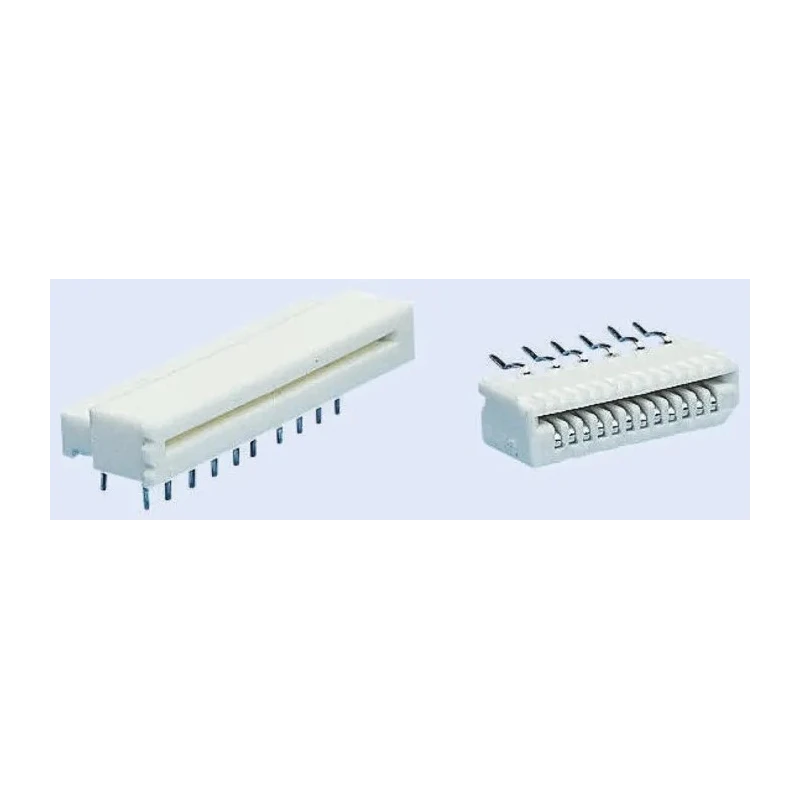

Molex 1.25 mm Pitch 16 Way Straight Female FPC Connector Through Hole Solder Termination 39-53-2165

Molex 39-53-2165 is a 16 Way Straight Female FPC Connector with a pitch of 1.25 mm, designed for Through Hole mounting and solder termination. This connector belongs to the 5597 series renowned for its zero insertion force (ZIF) capability, enabling repeat cycling while minimizing contact wear and tear.

The connector utilizes a slide type actuator mechanism that facilitates easy insertion and ensures a secure connection between flexible printed circuits (FPC) and the connector terminals. The housing is made from durable Polyethylene Terephthalate material, providing a robust physical structure suitable for various industrial environments.

Featuring Phosphor Bronze contacts with tin over nickel plating, the connector assures reliable electrical conductivity and resistance to corrosion. It operates safely under a voltage of 200V and supports a current capacity of 1A, making it suitable for low power electronic connections.

This connector supports operating temperatures from -20°C to +80°C, ensuring suitability for a broad range of electronic and automotive applications where environmental resilience is required. The locking mechanism and single row contact structure contribute to secure and stable mechanical and electrical connections.

The space-saving design makes it ideal for applications with tight packaging constraints. These connectors are typically used in electronic automotive applications, instrumentation, and any industry requiring compact and reliable FPC interconnect solutions.

Zero Insertion Force reduces wear during repeated connect cycles. Slide type actuator enables secure and easy FPC insertion. Durable Polyethylene Terephthalate housing enhances physical protection. Phosphor Bronze contacts with tin over nickel plating ensure excellent conductivity.

Rated for 200V and 1A, suitable for low power applications. Operating temperature range from -20°C to 80°C accommodates various environments. Locking mechanism provides secure connector retention. Compact single-row configuration optimizes PCB space utilization.

This Molex 39-53-2165 connector is essential for industrial, automotive electronics, manufacturing, and laboratory assembly requiring reliable and repeatable FPC connections. Explore the comprehensive range of Molex connectors at EnvMart for all your electronic component needs.
