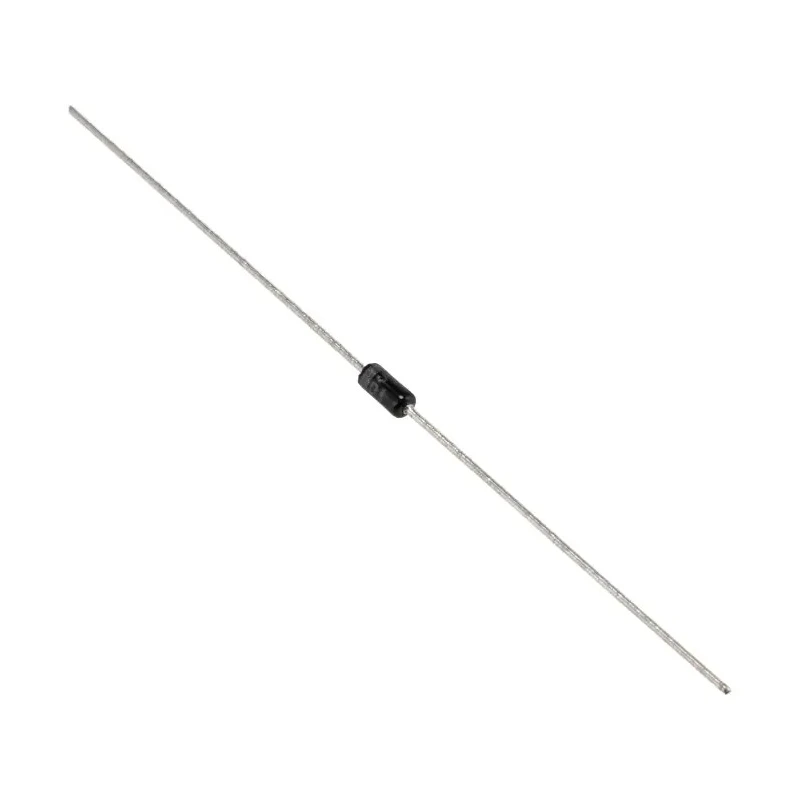

onsemi Small Signal Diode 150 V 200 mA Through Hole DO-35 Package 2-Pin 1N3595

onsemi 1N3595 is a small signal diode featuring a peak reverse voltage of 150 V and continuous forward current rating of 200 mA, ideal for general-purpose electronic circuits requiring fast switching diodes.

Designed in a through-hole DO-35 package with 2 pins, it offers reliable performance with a peak non-repetitive forward surge current of 4 A and a low forward voltage drop of 1 V, ensuring efficient signal rectification and switching.

Its peak reverse current at 3 μA and peak reverse recovery time of 3 μs provide fast switching capabilities making it suitable for low power, high frequency applications in electronic devices and circuits.

Compact in size, measuring 4.56 mm in height and 1.91 mm in diameter, the diode has a maximum operating temperature tolerance of 175°C, providing durability and stability under demanding environmental conditions.

This diode is commonly used in semiconductor discrete circuits, signal rectification, switching applications, and other general electronic component uses. This diode supports a peak non-repetitive forward surge current of 4 A.

It features a maximum forward voltage of 1 V and a peak reverse current of 3 μA. Designed for high conductance with fast switching and a peak reverse recovery time of 3 μs. The compact diode has a height of 4.56 mm and diameter of 1.91 mm.

Rated for maximum operating temperature up to 175°C, suitable for various electronic applications.

This product is new, manufactured to precise semiconductor standards, and suitable for multiple industrial and electronics projects including consumer electronics, telecommunications, and laboratory applications.
