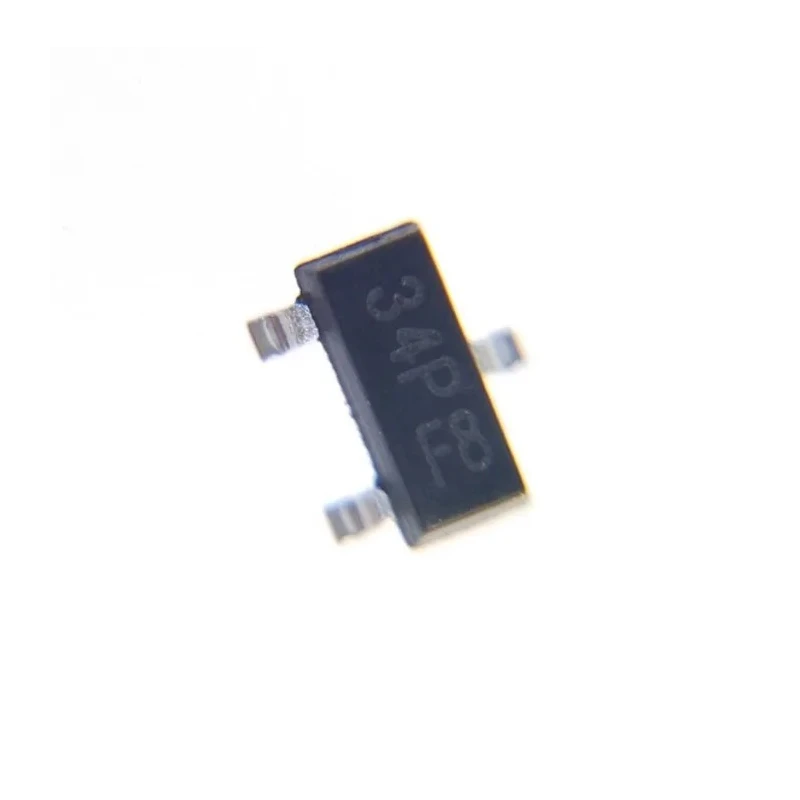

DiodesZetex DMG Type P-Channel MOSFET 4 A 20 V Enhancement SOT-23 3-Pin DMG3415U-7-57

DiodesZetex DMG3415U-7-57 is a high-performance P-Channel MOSFET designed for efficient power switching and management in electronic applications. It supports a continuous drain current of 4 A and a maximum drain-source voltage of 20 V, making it suitable for DC-DC converters and power management circuits.

This MOSFET features an enhancement mode channel with a low drain-source resistance of 71 mΩ, allowing low power dissipation during operation. Its compact 3-pin SOT-23 package facilitates easy surface mounting on PCBs, offering a minimal footprint of 3 mm length, 1.4 mm width, and 1 mm height.

Operational reliability is enhanced by a wide temperature tolerance range from -55°C up to 150°C. The device adheres to automotive standard AEC-Q101, attesting to its robustness for automotive and industrial use.

Additional features include a maximum gate-source voltage rating of 8 V and a typical gate charge of 9.1 nC, supporting fast switching speed and low leakage currents. The MOSFET is lead-free, halogen-free, and complies with green environmental standards, ensuring safe deployment in environmentally sensitive applications.

Low on-state resistance ensures efficient power management. Compact, surface-mount SOT-23 package for flexible installation. Wide temperature operating range supports demanding environments. Automotive standard AEC-Q101 compliance guarantees high quality.

Environmentally friendly lead-free and halogen-free materials. Fast switching capability with low gate charge enhances performance. Suitable for DC-DC converters and power management functions. This MOSFET is ideal for use in industrial power supplies, automotive electronics, consumer devices, and any application requiring reliable high-efficiency switching components.
