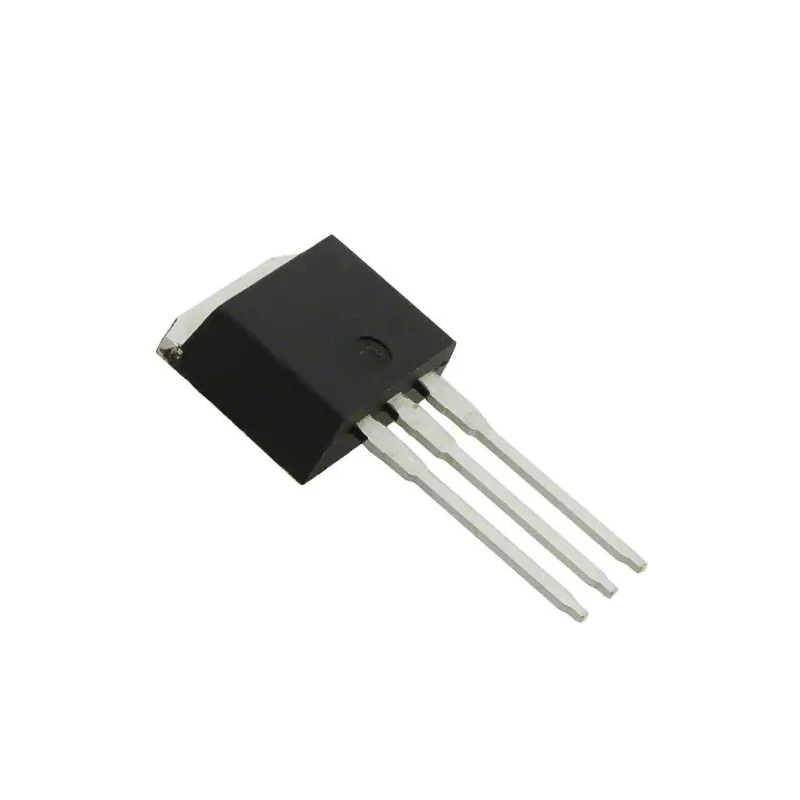

Vishay Single 1 N-Channel Power MOSFET, 5 A Continuous Drain Current, 500 V Drain-Source Voltage, 3-Pin TO-262 IRF830ALPBF

Vishay IRF830ALPBF Single 1 N-Channel Power MOSFET is a high-voltage switching transistor rated at 500 V drain-source voltage and a continuous drain current of 5 A. Packaged in a TO-262 3-pin configuration, it is engineered for efficiency with a maximum Rds(on) of 1.4 Ohms and a power dissipation of 74 W, allowing it to handle thermal loads effectively in various electronic systems.

This Power MOSFET features a typical gate charge of 24 nC, facilitating rapid switching transitions essential for power conversion and pulse control duties. It robustly tolerates a ±30 V gate voltage and operates reliably over an extended temperature range from -55°C to 150°C, making it well suited for use in adverse and industrial environments.

The single transistor element chip provides a solitary switching channel for applications requiring precise control in power supplies, motor drives, industrial lamp and heater control, as well as offline switch-mode power supplies. Its compact physical dimensions of 10.67 mm width, 9.65 mm length, and 4.83 mm height simplify integration in space-constrained electronic assemblies.

Manufactured to meet RoHS 2002/95/EC and IEC 61249-2-21 environmental standards, the IRF830ALPBF emphasizes compliance and safety while delivering performance. It is an ideal choice for engineers designing power conditioning equipment, auxiliary power supplies, and high-voltage motor drive front ends.

This MOSFET features a maximum drain-source resistance (Rds(on)) of 1.4 Ohms, reducing conduction losses. It supports a maximum gate-source voltage of ±30 V for robust gate driving. The device has a power dissipation capability of 74 W, aiding thermal management.

Typical gate charge is 24 nC, allowing fast switching transitions. Operating temperature ranges from -55°C to 150°C, suitable for harsh environments. Constructed with a single transistor element per chip for reliable switching operation.

Compact dimensions of 10.67 mm width, 9.65 mm length, and 4.83 mm height enable space-saving designs. Compliance with RoHS 2002/95/EC and IEC 61249-2-21 standards ensures environmental safety. Designed for industrial and commercial applications including high-voltage switching, motor drives, and power conversion circuits.
