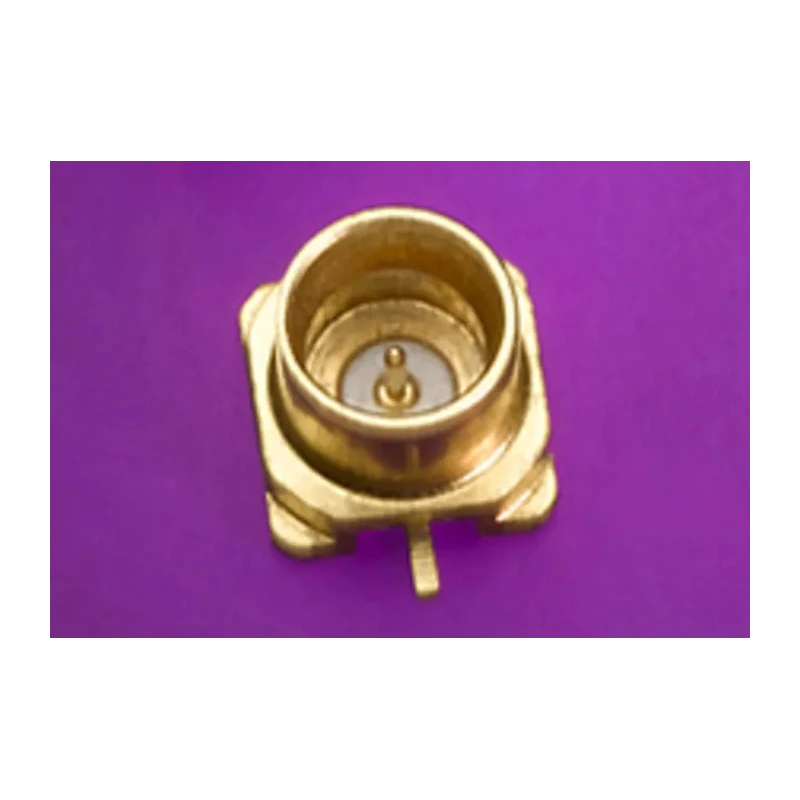

Molex 73415 Series SMP Coaxial Connector Surface Mount Male 50Ω Straight Body Solder 73415-6180
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | Molex |
| Orientation | Straight |
| Mount Type | Surface |
| Operating Frequency | 40GHz |
| Contact Material | Brass |
| Series | 73415 |
| Termination Type | Solder |
| Maximum Operating Temperature | 260°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMP |
| Body Plating | Gold over Nickel |
Key Features
- Designed for RF applications with operating frequency up to 40GHz.
- Features gold over nickel plating on body and contact for enhanced conductivity and durability.
- Constructed with brass contact material and normal polarity.
- Subminiature size suitable for compact electronic assemblies.
- Maximum operating temperature is 260°C, ensuring reliability in harsh environments.
- Surface mount type providing easy integration on printed circuit boards.
- Limited detent feature for secure connections.
- Manufactured in Taiwan, Province Of China.
Product Description
The Molex 73415-6180 coaxial connector from the 73415 Series is a high-performance SMP surface mount male connector designed for precise RF signal transmission. It operates with a stable impedance of 50 ohms, supporting frequencies up to 40GHz, making it suitable for advanced electronic, telecommunications, and instrumentation applications.
Constructed with brass contacts plated in gold over nickel, this connector ensures excellent conductivity and resistance to corrosion. The body plating is also gold over nickel, providing exceptional durability and consistent signal integrity over repeated mating cycles. The subminiature size and straight body form factor enable integration into compact PCB designs without compromising performance.
The termination type is solder, facilitating strong and reliable attachment to the circuit board. The connector’s maximum operating temperature of 260°C allows use in demanding industrial or laboratory environments. This SMP connector series includes features like limited detent for secure mating and standard normal polarity.
Applications include RF communication systems, test and measurement instrumentation, aerospace electronics, and other high-frequency signal transmission requirements in commercial and industrial sectors. Its surface mount design simplifies PCB assembly and production throughput.
High-frequency operation up to 40 GHz ensuring excellent signal performance. Gold over nickel plating on contacts and body for superior corrosion resistance. Subminiature size and surface mount configuration for compact design integration.
Brass contact construction for mechanical stability and conductivity. Rated for maximum operating temperature of 260°C suitable for harsh operating conditions. Solder termination type provides strong PCB connection. Straight body orientation for straightforward layout and assembly.
Manufactured in Taiwan, Province Of China, assuring consistent quality standards.
This Molex coaxial connector is categorized under Electronics & Electricals > Electronics Components > Coaxial Connector, making it an ideal choice for engineers and designers seeking durable, high-frequency connectors for demanding industrial and laboratory applications. Explore more Molex connectors on EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum frequency of 40GHz, making it suitable for high-frequency RF applications.
The impedance of this connector is rated at 50 ohms, which is standard for RF applications.
It features brass as the contact material and has gold over nickel plating on both the body and contacts for enhanced conductivity and corrosion resistance.
The termination type for this connector is solder, allowing for a strong attachment to the printed circuit board.
The maximum operating temperature is 260°C, ensuring reliability in harsh environments.
This connector has a straight orientation and is designed in a subminiature size, making it suitable for compact electronic assemblies.
It is manufactured in Taiwan, ensuring consistent quality standards.
It is suitable for RF communication systems, test and measurement instrumentation, and aerospace electronics, among other high-frequency signal transmission requirements.
Yes, it includes a limited detent feature for secure connections, enhancing its reliability during use.
This model is classified as an SMP coaxial connector, specifically designed for surface mount applications.
Both the contact and connector genders are male, which is standard for this type of connector.
The surface mount design simplifies PCB assembly and enhances production throughput, making it easier to integrate into compact designs.
