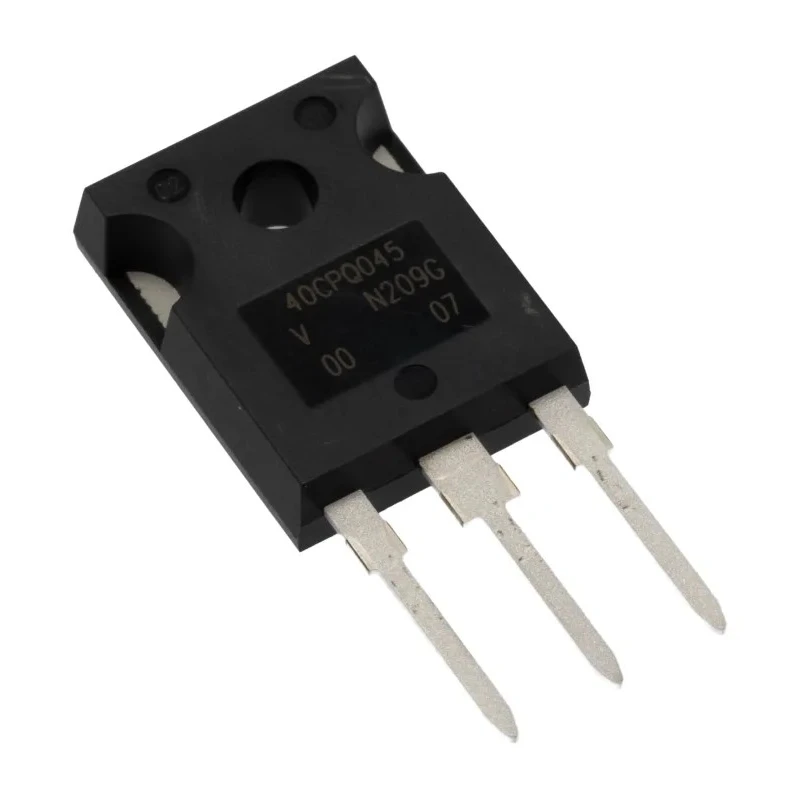

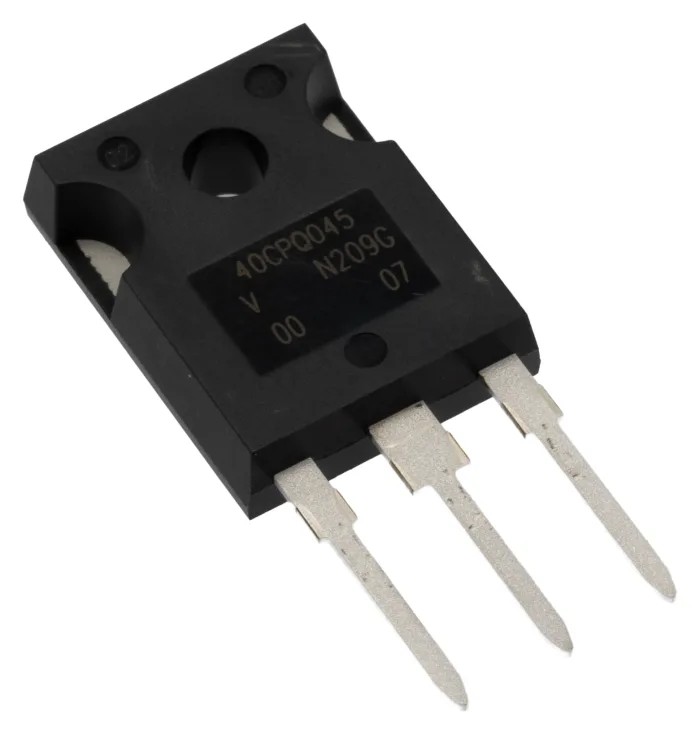

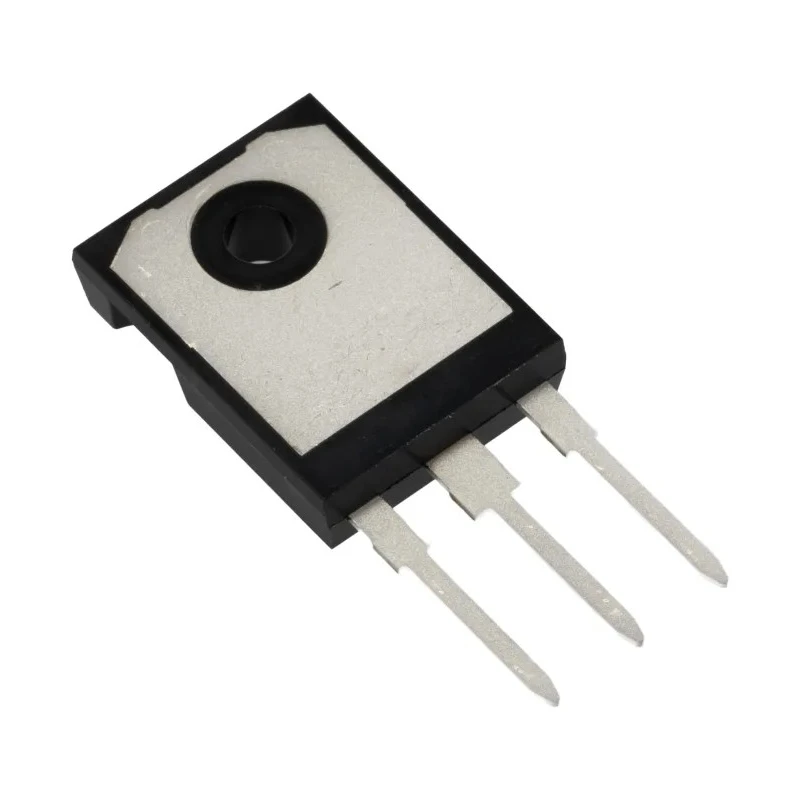

Vishay 45 V 40 A Schottky Diode 3-Pin Through Hole TO-247AC VS-40CPQ045-N3

Vishay VS-40CPQ045-N3 is a high-performance Schottky diode designed for applications requiring fast switching and low forward voltage drop. This 3-pin semiconductor device in a TO-247AC package supports a maximum continuous forward current of 40 A and peak reverse repetitive voltage of 45 V, making it suitable for power rectification and protection circuits.

The diode features a common cathode configuration and withstands operating temperatures from -55°C up to 150°C, enabling reliable function in industrial and electronic equipment exposed to varying environmental conditions. With a maximum forward voltage of 590 mV, it ensures energy-efficient conduction while minimizing heat generation.

Its robust peak non-repetitive surge current rating of 3.5 kA allows it to handle transient overloads without damage, enhancing durability in demanding power applications. The precise mechanical dimensions (length: 15.87 mm, width: 5.31 mm, height and diameter: 20.7 mm) and through-hole mount type facilitate stable placement on printed circuit boards.

It finds usage in power supplies, industrial controls, and electronic devices requiring fast switching diodes with low loss characteristics. High-performance semiconductor device with fast switching capability. Maximum continuous forward current of 40 amperes for robust applications.

Peak reverse repetitive voltage rating of 45 volts ensures reliable blocking performance. Compact TO-247AC package with 3 pins facilitates easy through-hole mounting. Wide operating temperature range from -55°C to 150°C suitable for harsh environments.

Maximum forward voltage of 590 millivolts reduces power dissipation during conduction. Peak non-repetitive forward surge current of 3.5 kiloamperes handles transient overloads. Common cathode diode configuration optimized for rectifier circuits.

Precision dimensions: length 15.87 mm, width 5.31 mm, height and diameter 20.7 mm.

This product is ideal for industrial, electronic manufacturing, power supply, and semiconductor applications requiring efficient diode switching behavior. Explore more Vishay semiconductor components and Schottky diode rectifiers with EnvMart for your circuit design needs.
