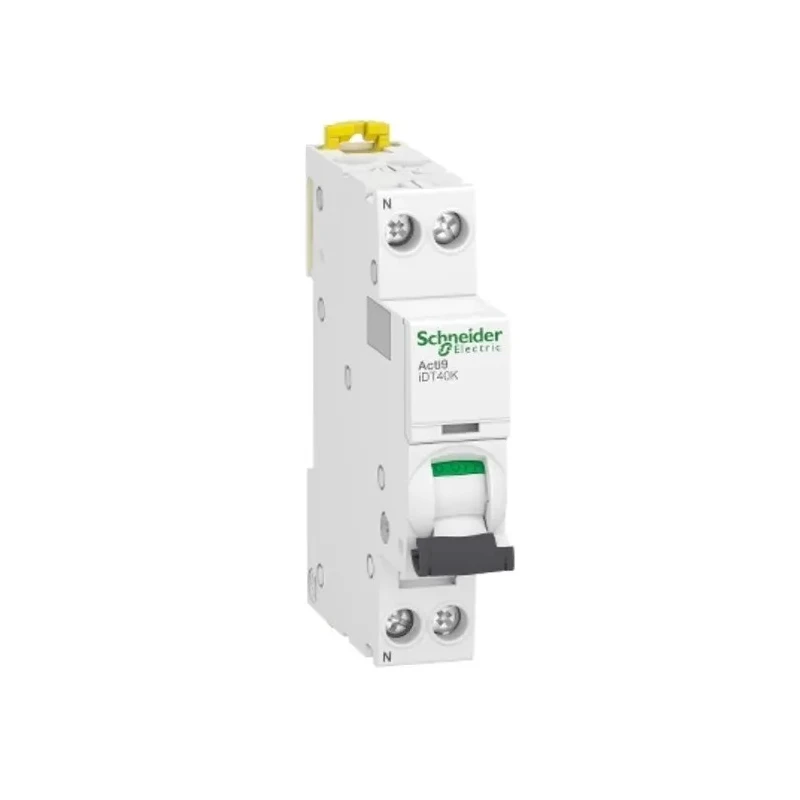

Schneider Electric Acti9 Miniature Circuit Breaker 1-Pole 25A Type C 230V AC 4500A Breaking Capacity A9P71625

Schneider Electric A9P71625 is a high-performance Miniature Circuit Breaker (MCB) from the Acti9 iDT40K series designed for effective electrical protection in residential, commercial, and industrial installations. Operating at a rated AC voltage of 230V and 25A current capacity, this 1-pole breaker ensures precise overload and short circuit protection with its Type C tripping characteristics.

Equipped with a robust thermal-magnetic trip unit, it provides fast response to current surges, enhancing system safety. The breaker features a toggle switch actuator for easy manual operation and trip indication for fault diagnostics. The magnetic tripping mechanism ensures reliable disconnection during fault conditions.

Its compact and modular design with clip-on mounting simplifies integration into low-voltage distribution boards. The device complies with international standards such as EN/IEC 60898-1 and IEC 60947-2, guaranteeing quality and reliability in electrical circuit protection.

With breaking capacity rated at 4500A, the MCB effectively interrupts fault currents, minimizing equipment damage and fire risks. The unit’s dimensions of 85mm height, 18mm width, and 74mm depth optimize panel space. It is designed to withstand ambient temperatures ranging from -25 to 70 °C, and relative humidity levels up to 95% at 55 °C, making it suitable for diverse environmental conditions.

The padlockable feature improves safety by locking the breaker in the off position to prevent unauthorized access. Manufactured in France, it embodies Schneider Electric's commitment to premium quality and innovative electrical components. This MCB is ideal for industrial, commercial, and residential electrical protection applications.

This breaker features a Type C tripping characteristic suitable for a wide range of applications. It supports a rated AC voltage of 230V with a breaking capacity of 4500A. The device uses a clip-on mount type for secure and easy installation.

The toggle switch actuator allows for straightforward ON/OFF operation with trip indication. Compliant with standards such as EN/IEC 60898-1 and IEC 60947-2 ensuring safety and reliability. Magnetic tripping mechanism for efficient response to short circuits and overloads.

Compact dimensions of 85mm height, 18mm width, and 74mm depth suit modern electrical panels. Designed to operate in ambient temperatures from -25°C to 70°C with 95% relative humidity tolerance. Padlockable feature enhances safety by preventing unauthorized operation.

Manufactured in France under Schneider Electric's Acti9 iDT40K series, representing premium class products. Explore more Schneider Electric products and Circuit Breakers at EnvMart for trusted electrical safety solutions.
