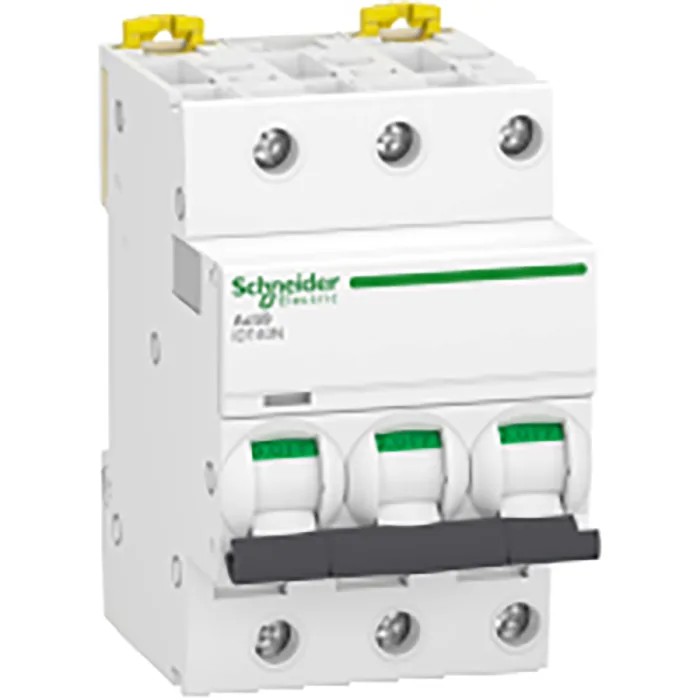

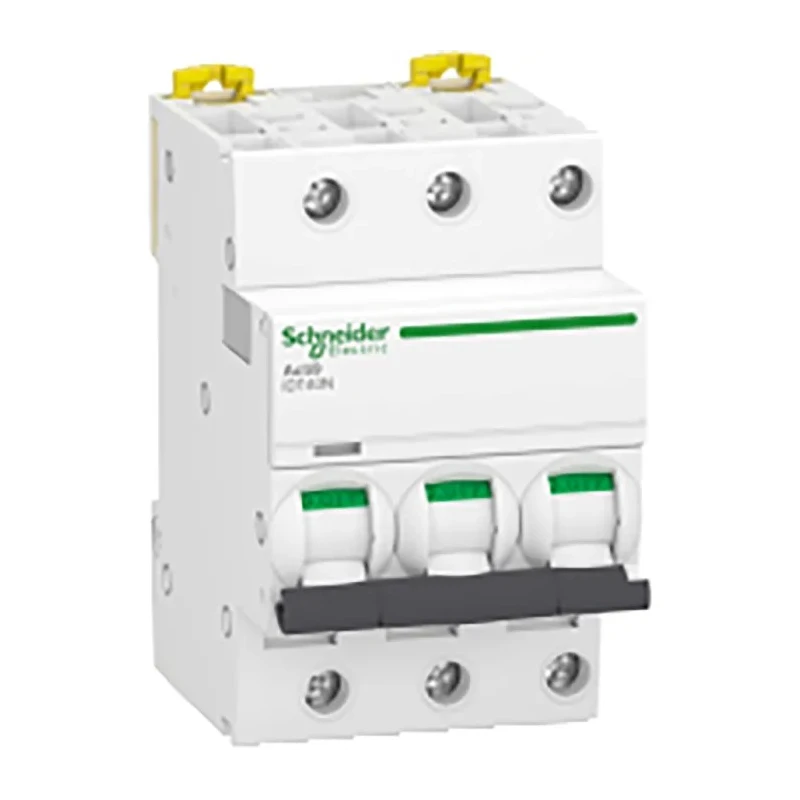

Schneider Electric Acti9 iDT40N Miniature Circuit Breaker 3-Pole 16A Type D 10kA DIN Rail A9P34316

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Acti9 iDT40N Miniature Circuit Breaker 3-Pole 16A Type D 10kA DIN Rail A9P34316

Name: Schneider Electric Acti9 iDT40N Miniature Circuit Breaker 3-Pole 16A Type D 10kA DIN Rail A9P34316
Brand: Schneider Electric
SKU: 83280
Price: 334.51 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Schneider Electric Condition New

Specifications

Country of Origin	Hungary
Range	Acti9
Brand	Schneider Electric
Height	85mm
Model	A9P34316
Depth	85mm
IP Rating	IP20
Width	74mm
Mount Type	DIN Rail
Current Rating	16A
Series	Acti9 iDT40N
Terminal type	Screw
Trip Indicator	ON/OFF
Breaking Capacity	10kA
Pitch	6 x 9mm
Number of Poles	3
Standards/Approvals	CE, EN IEC 60947-2, REACH, EN IEC 60898-1, RoHS
Tripping Characteristics	Type D
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
[Ue] Rated Operational Voltage	400 V AC 50 Hz
Clip-On Mounting	DIN Rail

Key Features

Three-pole miniature circuit breaker rated for 16A current.
Type D tripping characteristic ensures reliable performance for loads with high inrush currents.
10kA breaking capacity offers superior short-circuit protection.
DIN rail mountable for convenient and secure installation.
Thermal magnetic trip mechanism improves safety and operational reliability.
IP20 protection suitable for protected environments and modular panel installations.
Toggle switch actuator with ON/OFF trip indicator for clear operational status.
Screw terminal type enables secure connections for both rigid and flexible wires.

Product Description

Schneider Electric A9P34316 Acti9 iDT40N Miniature Circuit Breaker is designed to deliver advanced circuit protection in demanding industrial and commercial applications. Featuring three poles and a 16A current rating, this device is suitable for AC networks and distribution panels requiring high performance and reliability.

This MCB is equipped with a Type D tripping characteristic, ideal for protecting circuits with equipment that experiences high inrush currents, such as motors or transformers. The impressive 10kA breaking capacity ensures safety during short-circuit events, providing robust protection for installation and connected apparatus.

The device is constructed for DIN rail mounting, simplifying installation in modular switchboards. The thermal magnetic tripping mechanism facilitates both overload and short-circuit protection. Its toggle switch actuator enables easy manual operation and features an ON/OFF trip indicator for fast diagnostics and system management.

IP20 ingress protection makes the device suitable for protected environments, with an option for IP40 protection when mounted in modular enclosures. Screw terminals allow top and bottom connections for both flexible (1 - 10mm²) and rigid (1 - 16mm²) conductors, facilitating versatile wiring solutions.

Durability is emphasized with mechanical and electrical endurance up to 20,000 cycles, ensuring longevity and consistent performance. Additional safety features include padlock capability and contact position indicators.

Standards compliance includes CE, EN IEC 60947-2, EN IEC 60898-1, RoHS, and REACH, confirming suitability for international installations and regulatory requirements. Applications cover industrial, manufacturing, commercial building, HVAC, and panel board protection where dependable circuit breaking is critical.

The Acti9 iDT40N series is engineered for ease of integration into modern distribution systems. Its advanced design supports rapid fault identification, reduced downtime, and improved operational management via the VisiSafe green strip and VisiTrip red window for safety and tripping indication.

Browse further in EnvMart's Miniature Circuit Breaker category for compatible Schneider Electric products and related panel protection solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 16A, making it suitable for various applications requiring this level of current.

The breaking capacity of this unit is 10kA, providing robust protection against short-circuit events.

The A9P34316 circuit breaker features three poles, which is essential for three-phase applications.

It utilizes a thermal magnetic tripping mechanism, which offers both overload and short-circuit protection.

The dimensions of this model are 85mm in height, 85mm in depth, and 74mm in width.

The unit has an IP20 ingress protection rating, suitable for protected environments.

This circuit breaker is designed for DIN rail mounting, allowing for easy installation in modular switchboards.

It features a Type D tripping characteristic, which is ideal for loads with high inrush currents, such as motors and transformers.

The rated operational voltage for the A9P34316 is 400 V AC at 50 Hz.

It has screw terminals that accommodate both rigid and flexible wires, facilitating versatile wiring solutions.

This circuit breaker complies with CE, EN IEC 60947-2, REACH, EN IEC 60898-1, and RoHS standards, ensuring suitability for international installations.

This model includes a toggle switch actuator for manual operation, an ON/OFF trip indicator, and padlock capability for enhanced safety.
